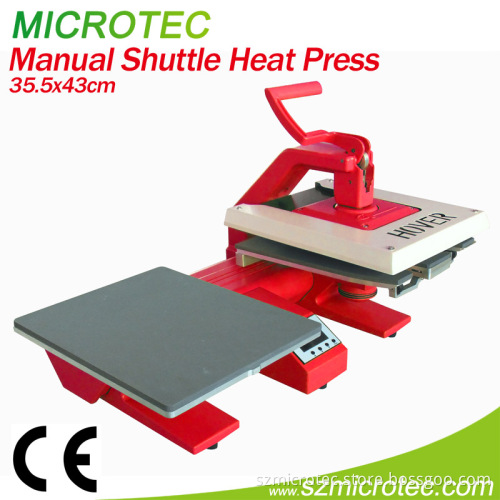

Manual Double Location Shuttle Heat Press
Description:
The heat press is the ultimate pressing machine. This model is designed for volume and efficiency. Vertical format is ideal for imprinting on youth size shirts. The broad Horizontal format is perfect for adult size shirts. Efficiency is maximized by our digital control console with pre-set press programs for vinyl, transfers or sublimation and a manual mode.

Tips: We are authorized by original company to produce and sell the patent heat press in most area expect North America.
Notice: The Green color is only produced for North America, normal machine would be Black & Red etc.

Feature:
Double 14"x17" (35.5x43cm) station
Optional Long Sleeve / Pant Pedestal
Dual station shuttle heat press
Quick, easy lateral glide movement
Digital control console for time and temperature
Cycle counter for tracking production quantities
Cycle done alarm
Designed for high volume and efficiency
Two types of projects can happen simultaneously
Able to press items up to 1" thick
Stylish machine appearance
90% Standard tooling components
Different size pedestals are customizable
Exchangeable under plate
High level quality
Quick, easy lateral glide movement
Optional Long Sleeve / Pant Pedestal

Specification:
Machine Type: Clamshell, Shuttle
Platen Size:16"*20" (40*50cm)
Controller: GY-06 Digital Time & Temp. Control
Max. Hover Space: Up to 10mm
Printable Articles: Up to 5mm Thickness
Voltage: 120V/ 220V
Power: 1500W/ 1800W
Time Range: 0-999 sec
Maximum Temp: 225 C
Temperature Accuracy: ±0.5%
Packing Size: 110*76*61.5cm
Gross Weight: 84kg

Heat Platen Test:
Each Single Copper sheathed heating rod is tested before it is cast in an aluminum alloy or Mica Sheet. These heating rods are comparable to those found in industrial ovens that heat up quickly, work efficiently and last many years. With our industrial quality heat castings, you can get five years worry free warranty.

Quality Control on Finished Machine:
All Microtec heat presses are strictly tested under the following procedures before shipping out.
1) Turn on the machine, let it heating up to 200 degree Celsius.
2) Keep the temperature stay at 200 degree Celsius for at least 20 minutes

Package:
The machine is packed in Fumigation-free wooden case and provide with manual.

Machine Warranty:
Microtec's primary service goal is to support all of our customers, could deal with their heat transfer business without interruptions.
So Microtec offers FREE SPARE PARTS with quantity order and the following warranty:
*Free lifetime technical support on all heat presses.
*One-year warranty on entire press & parts.
*Five-year warranty on castings and welds.
*Five-year warranty on heat platen.
*Half- year warranty on mug, plate and cap heaters.
