MTP®/MPO Hydra Cable

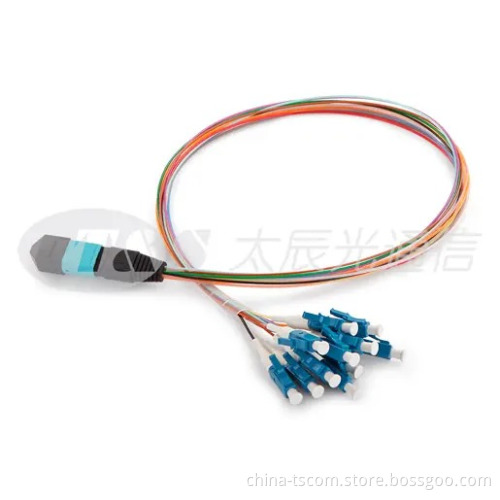

MPO/MTP® Hydra cable assemblies is deployed inside plug and play cassette modules. It is used for multi-fiber to single-fiber splitting out interconnects. This solution is a 12-colored 0.9mm cable utilizing an MPO/MTP® connector on one end and generic connectors (such as LC, SC, FC, etc.) on the other end. They are available for purchase as a bundle with plug and play modules, MPO/MTP® Adapter Plates, and other solutions. It is fully configurable, available in 8/12/16/24 fibers versions as well as Multi-mode (Standard 50/125, 62.5/125, BI 10Gig 50/125) and Single-mode fiber types.

Features of MTP®/MPO Hydra Fiber Cable
Low loss performance

Fiber count available in 8~24

Available in OS1, OS2, G.657A2, OM3, OM4 Fiber Grades – OM1 and OM2 available upon request

Option for LSZH, PVC or Hytrel loose tube

100% factory terminated and tested


Applications of MTP®/MPO Hydra Cable
Data Center Interconnect

Backbone Installations

Telecommunication Networks

Broadband/CATV Networks

LAN/WAN Premises


Standards Compliance of MTP®/MPO Hydra Cable
TIA/EIA-568.3-D and ISO/IEC 11801

IEC-61754 & EIA/TIA-604-5

NFPA 262 or IEC 60332

Compliant to Directive 2002/95/EC (RoHS) and REACH SvHC

EN 50575

Comply with GR-1435-CORE, GR-2866-CORE, GR-326-CORE

Specifications of MTP®/MPO Hydra Cable
General Specification
Technical Specification
Construction Description
Fiber Count 8~24 Fibers
Fiber Mode Single mode: OS2/G657 9/125um
Multimode: OM4 50/125um, OM3 50/125um
Fiber Brand SMF-28® Ultra optical fiber
Corning ClearCurve® multimode fiber
Cable Jacket Ratings PVC, LSZH, Hytrel
Cable Jacket Color Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Purple, Pink, Aqua
Polarity A/B/C or Customized
MTP/
MPO Ferrule 12F/16F/ 24F
Ferrule Brand US Conec, HANKUSAN, Nissin
Connector Type MTP Female, Male; MPO Female, Male
Connector Brand US Conec MTP, Senko MPO, Nissin MPO, Sanwa MPO, FURUKAWA MPO
Connector Color Ferrule SM(APC) SM(PC) OM3 OM4 or
Customized
Low loss Yellow Yellow Aqua Magenta
Standard Green Blue Aqua Magenta
Boot Color Green/Black/ or Customized
Single-fiber connector LC, SC, FC, etc.
Operating Temperature -20°C to +70°C
Storage Temperature -40°C to +85°C

As a reliable optic connector supplier, we will do our best to meet all the needs of customers.
