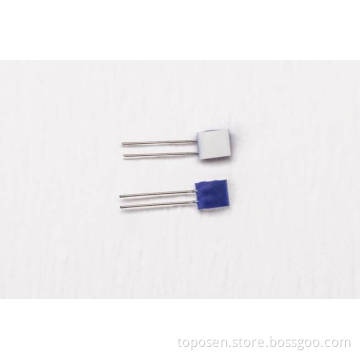

PT1000

Specification: pt1000 thermistor

Details
Material:Semiconductor ceramics

Applicable temperature range：-70~500℃

Output signal: analog signal output

Advantages
1. Dejiajin high temperature platinum resistance

2. Good stability and high reliability

3. Wide resistance range: R0 degrees Celsius = 100 ohms

4. High resistance and B value accuracy

5. Can be used under harsh conditions such as high temperature

6. Small size, sturdy structure, easy to install automatically

7. Operating temperature range -70℃ to +500℃

8. Fast heat induction and high sensitivity

Application
1. Temperature control and temperature detection of household appliances such as induction cooker, electric pressure cooker, rice cooker, electric oven, disinfection cabinet, water dispenser, microwave oven, electric heater, etc.

2. Temperature detection and temperature compensation of medical equipment (such as copiers, printers, etc.)

3. Temperature control and testing of industrial, medical, environmental protection, meteorological, and food processing equipment

4. Temperature protection of rechargeable battery pack and charger

5. Temperature compensation of instrument coils, integrated circuits, quartz crystal oscillators and thermocouples

General parameters

Nominal      Resistance R0 Tolerance Toerance Temperature range

100ohm  at  0℃ Class 1/3 B F 0.1 0℃to150℃
Class A F 0.15 -50℃to300℃
Class B F 0.3 -70℃to500℃

1000ohm  at  0℃ Class B F 0.3 -70℃to500℃

TC 0/100=3850                                                            -70°C to +500°C (continuous operation)
(temporary use to 550 °C possible)


Note: What is the B value:

A material constant that describes the resistance-temperature relationship. The value of B can reflect the scale of resistance to temperature change between two specific temperatures. As the temperature changes, the resistance value of a product with a large B value under the same conditions changes more, that is to say, it is more sensitive.
