Compressed air in industrial applications contains in 1Nmᶟ more than 100 million of polluting articles. Most of these particles are so small in dimension, less than 5 micron, that they cannot be intercepted by the standard intake filters installed in the compressors. Such particles, mixed with water and oil vapour generated during compression, cause the early wear and tear of the appliances and consequently they are the cause of expensive interruptions of the production and remarkable increase maintain.
Selection right air filters will allow the best choice of the suitable equipment according to the quantity of air to be treated and the necessary filtration degree in order to increase and improve the performances of the whole system.
How to choose right filter for Your Air Compressor System?
When you’re working with air compressors, air purification and filtration is an critical part of maintenance. Compressed air filters play an important role in your industrial air compressor system. Choosing the right filter not only increases the efficiency of your unit, but it can also reduce energy costs and protect your employees from harmful chemicals and particulates.
However, does all air filter work for your compressed air system? Well it is depending on your working conditions, the project you’re completing and how often you use your equipment, you’ll need to make an precise choice. This guide will detail how air compressor filters work, why they’re important, what type of air compressor filter to buy and when you should replace it.

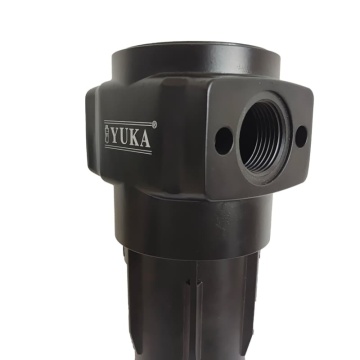

Feature & Advance
①1.6Mpa working pressure, connection and wall kit available, save install time and money.
②15 years warranty for filter housing, thanks for die-casting integrated technology.
③Filtration accuracy up tp 0.01μm, oil mist residual up to 0.001mg/m³, class 1 in according with ISO8573.1-2010 standard.
④Low pressure drop, saving energy and positive efficiency.
HFD series with 7 Grades Filter Element: PF/AO/AA/AX/ACS/AR/AAR
| PF | AO | AA | AX | ACS | AR | AAR |
| As a primary filter, particles whose diameter more than 5μm can be remove,the maxi. residual oil content is negligible | High efficiency general protection, dust particles, water mist & oil mist whose diameter more than 1μm can be removed, the residual content of oil mist does not exceed 0.6mg/m³ (21℃）,1ppm(w). | High effiency oil remove filtration, dust particles, water mist and oil mist whose diameter more than 0.01μm can be removed, the residual content of oil mist does not exceed 0.01mg/m³(21℃),0.01ppm(w) | Ultra-efficient filtration, dust particles, water mist&oil mist whose diameter more than 0.01μm can be removed, the residual content of oil mist does not exceed 0.001mg/m³(21℃),0.001ppm(w) | Dust particles whose diameter more than 0.01μm, oil vapor &odor can be removed, the maxi. resident content of oil vapor does not exceed 0.003mg/m³(21℃)，0.003ppm（w） | Dust particles whose diameter more than 1μm can be removed | Dust particles whose diameter more than 0.01μm can be removed |
Product Specification
| Model） | Pipe size | Flow rates | Dimension (mm) | ||||||
| L/S | m³/min | scfm | W (Width) | D (Depth) | H (Height) | A | B | ||
| HFD010 | RC1/2" | 16.7 | 1.0 | 35.3 | 90 | 82 | 255 | 37 | 179 |
| HFD020 | RC3/4" | 25.0 | 1.5 | 53.0 | 90 | 82 | 255 | 37 | 179 |
| HFD030 | RC3/4" | 30.0 | 1.8 | 63.6 | 90 | 82 | 286 | 37 | 212 |
| HFD040 | RC1" | 33.3 | 2.0 | 70.6 | 90 | 82 | 286 | 37 | 212 |
| HFD050 | RC3/4" | 46.7 | 2.8 | 98.9 | 120 | 113 | 359 | 53 | 269 |
| HFD060 | RC1" | 60.0 | 3.6 | 127.1 | 120 | 113 | 359 | 53 | 269 |
| HFD070 | RC1" | 80.0 | 4.8 | 169.5 | 120 | 113 | 459 | 53 | 369 |
| HFD080 | RC1-1/2" | 120.0 | 7.2 | 254.2 | 120 | 113 | 459 | 53 | 369 |
| Technical requirements | Maximum operating pressure: 16 barg Maximum operating temperature: 80°C Minimum operating temperature:1.5°C | ||||||||
| Pressure | Barg | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 |
| Psig | 15 | 29 | 44 | 59 | 73 | 87 | 100 | 116 | 131 | 145 | 160 | 174 | 189 | 203 | 219 | 232 | |
| Correction factor | 0.38 | 0.53 | 0.65 | 0.76 | 0.85 | 0.93 | 1.00 | 1.07 | 1.13 | 1.19 | 1.23 | 1.31 | 1.36 | 1.41 | 1.46 | 1.51 | |
How to install compressed air filter?
1. Clean the compressed air pipes and valves connected to the air inlet and outlet of the filter before installation.
2. Adopt the combination of main pipe filtration and terminal filtration to ensure the gas quality at the point of use.
3. When installing, the air inlet and outlet of the filter should be kept level, and the sewage outlet should be at the bottom. A certain space must be reserved in the vertical direction to facilitate the maintenance of the filter and the replacement of the filter element.
4. The filter of the screw air compressor should be installed in a ventilated and cool place, as close as possible to the air point, to reduce the influence of the pipeline on the quality of the filtered compressed air.
5. Install and use within the specified working pressure and working temperature range, and install all levels of filters in the correct order according to the air inlet and outlet instructions or the direction indicated by the arrow, from coarse to fine installation. Avoid bypass as much as possible during installation. Because the oil in the air is bypassed to the downstream of the filter and then sticks to the inner wall of the pipeline, it is difficult to find effective means to remove it.
6. The filter element should be replaced regularly. Carefully record the replacement time. It is recommended that the working time zone should not exceed 6000 hours.
7. The discharge time of the auto drain is suitable for draining the liquid water, and the discharge interval is subject to the water content in the pipeline;
8. Different grades of compressed air filters can be equipped with zero pressure loss floating ball drain valves or manual valves according to customer requirements.
