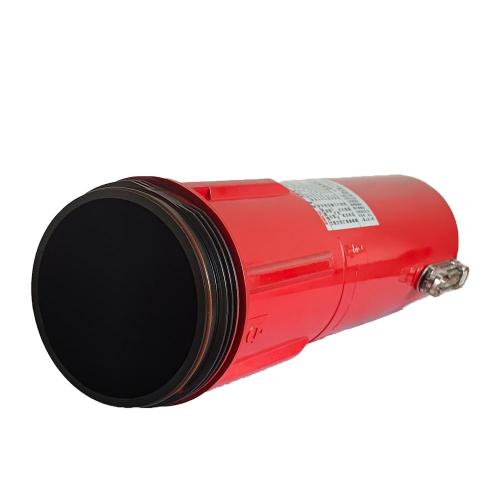

10 Micron Compressed Air Filter
-
$135.321-19 Piece/Pieces
-
$128.55≥20 Piece/Pieces
- Transportation:
- Ocean, Land, Air, Express
- Port:
- SHENZHEN, GUANGZHOU, SHANGHAI
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 500pcs per day |
| Supply Ability: | 500pcs per day |
| Payment Type: | L/C,T/T |
| Incoterm: | EXW,CIF,CFR,FOB |
| Certificate: | CE |
| HS Code: | 8421399090 |
| Transportation: | Ocean,Land,Air,Express |
| Port: | SHENZHEN,GUANGZHOU,SHANGHAI |
Why need compressed air filter for compressed air whole system?
Air purification is essential for any air compressor for many reasons. Providing your pneumatic tools with clean air will extend their lifespan significantly.
When you use a compressor, every cubic foot of air that passes through contains millions of foreign particles, all of which can collect and damage or inhibit your tools. These particles include water droplets, oils, dirt, dust, bacteria and, potentially, pieces of heavy metals, such as lead, mercury and cadmium.
If the air passes through unfiltered, it can cause contamination of the control valves, swell the protective seals and cause premature wear, all potentially leading to equipment failure and increase repaired cost.
By implementing the proper filtration system for protection and purification, you can reduce machine downtime and overall cost, as well as limit the amount of necessary maintenance, repair and energy use. But you also need to maintain the filters for the best results, as clogged or worn filters can cause a significant pressure drop, making your compressor less effective.

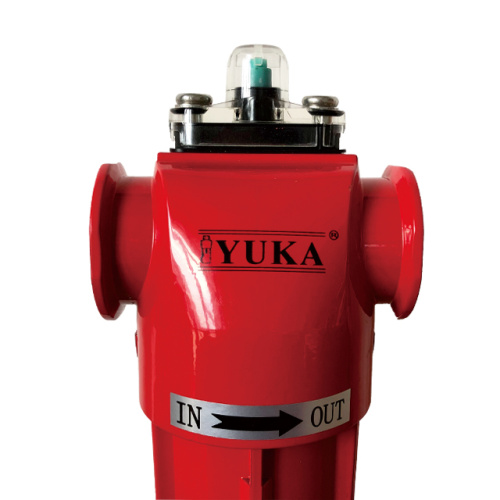

YF Series Compressed Air Condensate Filter
Model
Pipe size
Flow rates
Dimension (mm)
L/S
m³/min
scfm
W(Width)
D(Depth)
H(Height)
A
B
C(clearance for housing)
YF010
RC1/2"
16.7
1.0
35.3
96
79
261
29
198
118
YF020
RC3/4"
25.0
1.5
53.0
96
79
261
29
198
118
YF030
RC3/4"
30.0
1.8
63.6
96
79
295
29
233
153
YF040
RC1"
33.3
2.0
71.0
96
79
295
29
233
153
YF060
RC1"
60.0
3.6
127.0
138
111
403
37
296
208
YF070
RC1"
83.3
5.0
177.0
138
111
503
37
396
303
YF080
RC1-1/2"
125.0
7.5
265.0
138
111
503
37
396
303
YF090
RC2"
166.7
10.0
353.1
174
142
736
58
607
469
YF100
RC2-1/2"
216.7
13.0
459.0
174
142
736
58
607
469
YF110
RC2"
283.3
17.0
600.0
174
142
1016
58
887
794
YF120
RC2-1/2"
316.7
19.0
671.0
174
142
1016
58
887
794
YF130
RC3"
416.7
25.0
883.0
220
184
793
74
649
514
YF140
RC4"
466.7
28.0
989.0
220
184
793
74
649
514
YF150
RC3"
683.3
41.0
1448.0
220
184
1050
74
906
764
YF160
RC4"
800.0
48.0
1695.0
220
184
1050
74
906
764
Technical requirements
Maximum operating pressure: 10 barg Operating temperature: 1.5°C~80°C.
Pressure
Barg
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Psig
15
29
44
59
73
87
100
116
131
145
160
174
189
203
219
232
Correction factor
0.38
0.53
0.65
0.76
0.85
0.93
1.00
1.07
1.13
1.19
1.23
1.31
1.36
1.41
1.46
1.51
