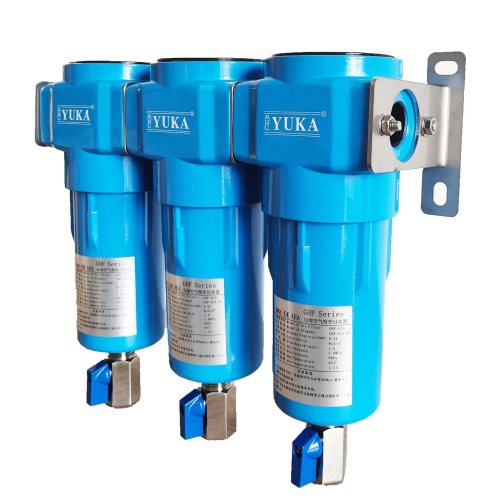

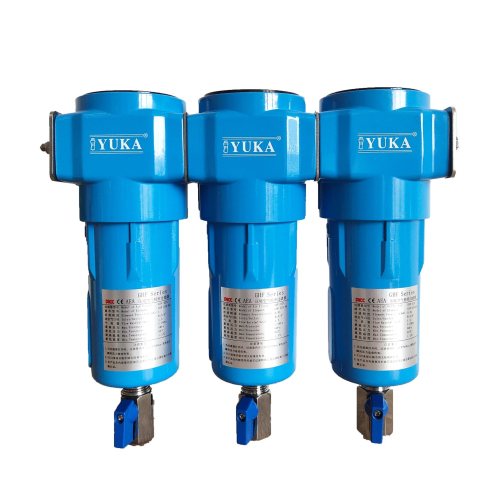

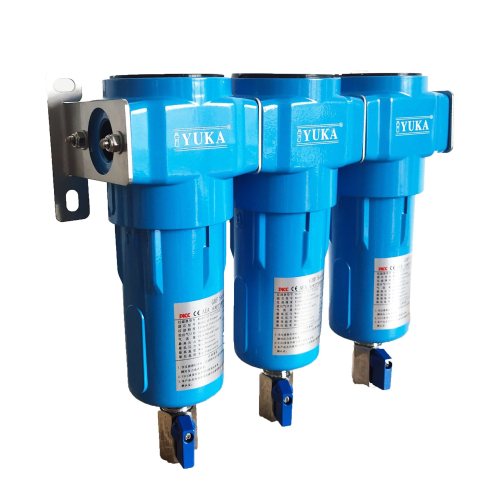

High Pressure Compressed Air Filter for Laser Cutting

High Pressure Compressed Air Filter for Laser Cutting

$108.29

1-19 Piece/Pieces
$102.87

≥20 Piece/Pieces

Transportation:: Ocean, Land, Air, Express

Port:: Shenzhen, Guangzhou, Shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Supply Ability:	500PCS Per Days
Payment Type:	T/T,L/C
Incoterm:	EXW,CIF,CFR,FOB
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen,Guangzhou,Shanghai

Product Description

Air Filter Feature

1. Aluminum Alloy material, 15 years serve life for filter housing under working condition from temperature 1.5ºC to 80ºC;

2. Maxi. Pressure is 3.0Mpa;

3. 6000 to 8000 hours serve life for filter element, filtering performance up to 99%;

4. With Parallel and wall connection kit, easy for replace and maintenance;

5. With Stainless steel manual ball valve.

GHF series Air Filter is recommended for the industries in laser, Nitrogen Generator industry.

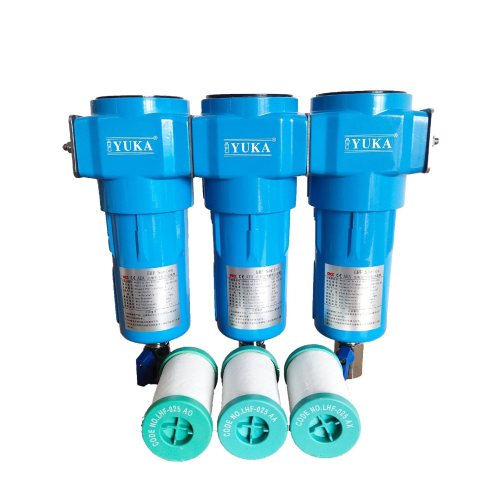

7 Grades Filter Element: PF/AO/AA/AX/ACS/AR/AAR

PF	AO	AA	AX	ACS	AR	AAR
As a primary filter, particles whose diameter more than 5μm can be remove,the maxi. residual oil content is negligible	High efficiency general protection, dust particles, water mist & oil mist whose diameter more than 1μm can be removed, the residual content of oil mist does not exceed 0.6mg/m³ (21ºC),1ppm(w).	High effiency oil remove filtration, dust particles, water mist and oil mist whose diameter more than 0.01μm can be removed, the residual content of oil mist does not exceed 0.01mg/m³(21ºC),0.01ppm(w)	Ultra-efficient filtration, dust particles, water mist&oil mist whose diameter more than 0.01μm can be removed, the residual content of oil mist does not exceed 0.001mg/m³(21ºC),0.001ppm(w)	Dust particles whose diameter more than 0.01μm, oil vapor &odor can be removed, the maxi. resident content of oil vapor does not exceed 0.003mg/m³(21ºC),0.003ppm(w)	Dust particles whose diameter more than 1μm can be removed	Dust particles whose diameter more than 0.01μm can be removed

Technical Specification

Model	Connection	Flow Rate			Dimension
Model	Connection	L/S	m³/min	cfm	Width	Depth	Height	A	B
GHF017	RC1/2"	16.7	1.0	35.3	90	82	253	39	173
GHF025	RC3/4"	25.0	1.5	53.0	90	82	253	39	173
GHF030	RC1/2"	30.0	1.8	63.6	90	82	289	39	207
GHF035	RC3/4"	33.3	2.0	70.6	90	82	289	39	207
GHF058	RC3/4"	46.7	2.8	98.9	120	113	369	52	273
GHF068	RC1"	60.0	3.6	127.1	120	113	369	52	273
GHF080	RC1	80.0	4.8	169.5	120	113	469	52	373
GHF145	RC1-1/2"	120.0	7.2	254.2	120	113	469	52	373

Pressure	Barg	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15	16
Pressure	Psig	15	29	44	59	73	87	100	116	131	145	160	174	189	203	219	232
Correction factor		0.38	0.53	0.65	0.76	0.85	0.93	1.00	1.07	1.13	1.19	1.23	1.31	1.36	1.41	1.46	1.51
