Remove Vapor Compressed Air Filter for Air Compressor

Remove Vapor Compressed Air Filter for Air Compressor

$59.37

1-19 Piece/Pieces
$56.40

≥20 Piece/Pieces

Transportation:: Ocean, Land, Air, Express

Port:: Shenzhen, Guangzhou , Shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	CHINA
Productivity:	20000PCS PER MONTH
Supply Ability:	20000PCS Per Month
Payment Type:	T/T,L/C
Incoterm:	FOB,EXW
Certificate:	CE
HS Code:	8421399090
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen,Guangzhou ,Shanghai

Product Description

YF-B series is recommended for the industries in general automation equipment, pneumatic tools,printing, film production, laser cutting and nitrogen generator.

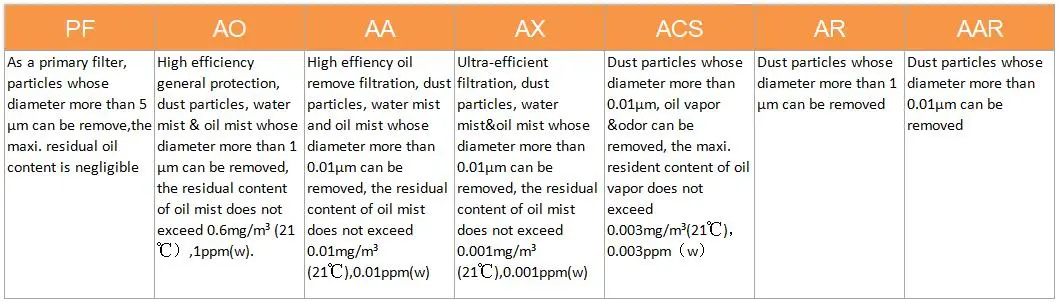

7 Grades Filter Element: PF/AO/AA/AX/ACS/AR/AAR
Remove Vapor Compressed Air Filter for Air Compressor (YF-B020)

International test and measurement standard ISO12500

>ISO 12500 has made clear a general test and definition method for the compressed air filter manufacturers. The main performance
parameters are the air inlet oil content and particles size distribution of the solid particles.
>ISO12500-1 specifies the test requirements for the filtration performance of oil aerosol in the coalescing filter.
>ISO12500-2 specifies the test requirements of adsorption filters for the removal performance of steam adsorption.
>ISO12500-3 specifies the requirements for removal of particulate matter from solid pullutants.

Product are test with the international advanced testing equipment based on standard ISO12500, Which is equivalent to the standard ISO8573.1-2010 quality standard, and provide filter performance test report.

Filtration Grade	PF	AO	AA	AX	ACS	AR	AAR
Size of solid particles(ISO12500-3)	5μm	1μm	0.01μm	0.01μm	-	1μm	0.01μm
Filtration performance of solid particles(ISO12500-3)	-	99.999+%	99.999+%	99.999+%	99.999+%	99.999+%	99.999+%
Filtration performance of oil(ISO12500-1)	50%	80+%	99.9+%	99.99+%	-	-	-
Residual oil content(ISO12500-1)	5mg/m³	0.6mg/m³	<0.01mg/m³	<0.001mg/m³	<0.004mg/m³	-	-

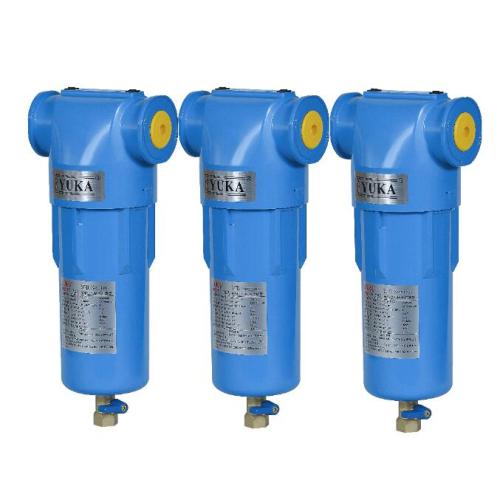

Product Picture
Remove Vapor Compressed Air Filter for Air Compressor (YF-B020)

Filter Element

Produdct Feature

> Aluminum Alloy material, 15 years serve life for filter housing under working condition from temperature 1.5~80ºC.
Maxi. Pressure is 1.6Mpa.

> 6000~8000 hours serve life for filter element,filtering performance up to 99%
> Integrated die-casting filter up to 4 inch, flow rate up to 48m³/min.
> Top cap of filter element with diversion fins, which will let the air come inside the filter more smooth, less pressure loss.

Technical Specification
The flow rate below is the treatment capacity of compressed air under rated working pressure 7 barg (100psi g).
For application in other working pressure, please refer to the correction factors.

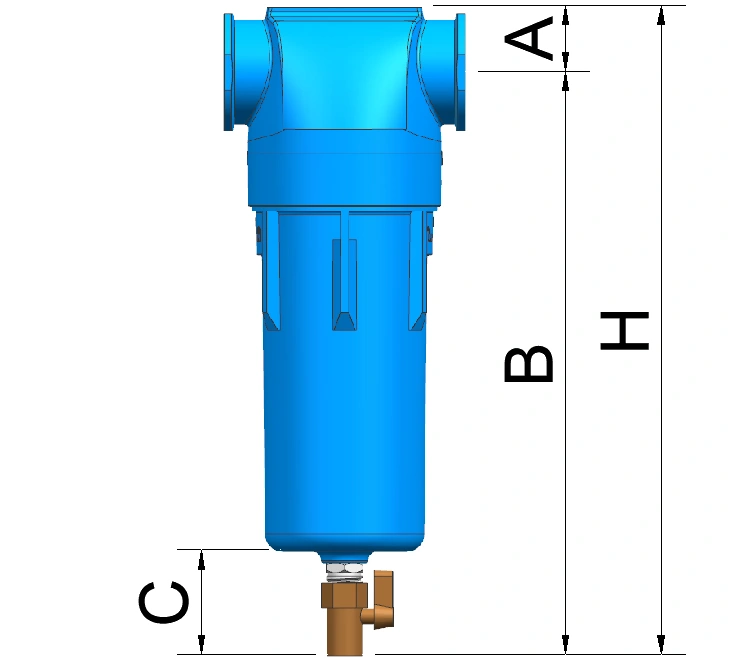

Model	Pipe size	Flow rates			Dimension (mm)
Model	Pipe size	L/S	m3/min	scfm	W(Width)	D(Depth)	H(Height)	A	B	C(clearance for housing)
YF-B010	RC1/2"	16.7	1.0	35.5	96	79	245	29	180	118
YF-B020	RC3/4"	25.0	1.5	53.0	96	79	245	29	180	118
YF-B030	RC3/4"	30.0	1.8	63.6	96	79	274	29	209	153
YF-B040	RC1"	33.3	2.0	71.0	96	79	274	29	209	153
YF-B060	RC1"	60.0	3.6	127.0	138	111	349	37	276	208
YF-B070	RC1"	83.3	5.0	177.0	138	111	450	37	377	303
YF-B080	RC1-1/2"	125.0	7.5	265.0	138	111	450	37	377	303
YF-B090	RC2"	166.7	10.0	353.1	174	142	558	58	500	467
YF-B100	RC2-1/2"	216.7	13.0	459.0	174	142	558	58	500	467
YF-B110	RC2"	283.3	17.0	600.0	174	142	838	58	780	794
YF-B120	RC2-1/2"	316.7	19.0	671.0	174	142	838	58	780	794
YF-B130	RC3"	416.7	25.0	883.0	220	184	616	74	542	514
YF-B140	RC4"	466.7	28.0	989.0	220	184	616	74	542	514
YF-B150	RC3"	683.3	41.0	1448.0	220	184	892	74	798	764
YF-B160	RC4"	800.0	48.0	1695.0	220	184	892	74	798	764
Technical requirements	Maximum operating pressure: 16 barg Maximum operating temperature: 80°C Minimum operating temperature:1.5°C

Pressure	Barg	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15	16
Pressure	Psig	15	29	44	59	73	87	100	116	131	145	160	174	189	203	219	232
Correction factor		0.38	0.53	0.65	0.76	0.85	0.93	1.00	1.07	1.13	1.19	1.23	1.31	1.36	1.41	1.46	1.51
