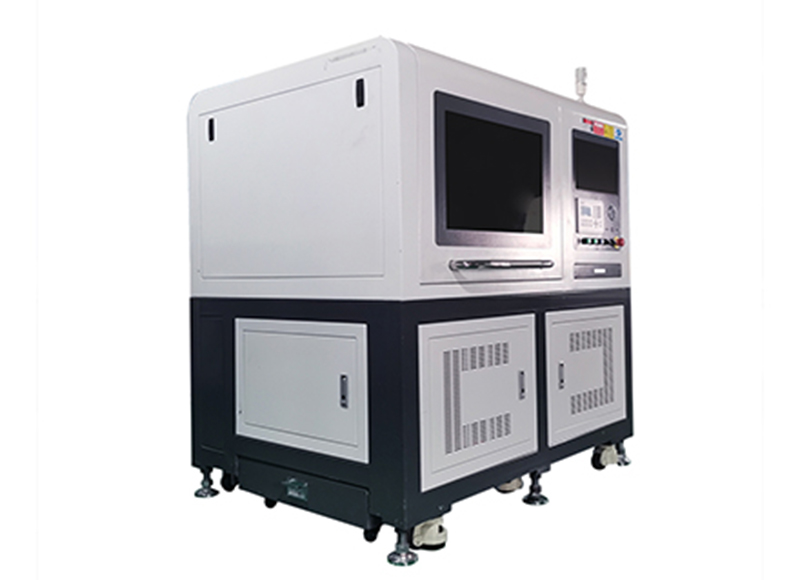

Plate Tube Integrated Optical Fiber Laser Cutting Machine

$25000.00

≥10000 Set/Sets

Min. Order:: 10000 Set/Sets

Min. Order:: 10000 Set/Sets

Transportation:: Ocean, Land, Express

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C,T/T,D/P,D/A,Paypal
Incoterm:	FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP
Transportation:	Ocean,Land,Express

Product Description

Laser cutting machine for sheet metal
The optical fiber laser cutting machine series adopts gantry rack double drive structure and reinforced aluminum alloy beam to improve the stability and accuracy of the whole machine. The maximum working width is 2.5m * 1.3m, which is suitable for laser cutting of all kinds of carbon steel, aluminum alloy galvanized sheet and other metal plates.

Product introduction
1. The equipment adopts built-in double temperature control water cooler, which can keep constant temperature even in freezing weather in the north
2. According to different types of products, the rotary axis and mobile workbench can be added to realize seven axis and eight axis linkage
3. The operating system adopts the new generation of Taiwan system with Chinese interface. The operation is simple and clear, and the training is simple and fast

technical parameters：

number	name	parameter
1	Power requirements	Host 220V/50Hz
2	Rated power	Host ≤9KW.
3	laser power	500W，800W,1000W,1200W,1500W Optional. 2000W Optional
4	Laser wavelength	1064nm band .
5	Cutting format	300500mm（Screw rod）,500500mm. 600600mm,1200600mm Optional.
6	Accuracy of machine tool	≤±0.03mm.(The cutting accuracy is affected by the thickness and size of the material, that is, the thermal deformation）
7	Cutting seam width	≤0.19mm . （Depending on power and material）
8	Air speed	400mm/s .
9	Moving acceleration	1.0G
10	Maximum cutting thickness	Air is 8.0mm . （1500W air）
11	Normal working thickness	Air is 7.0mm . (High pressure air without oil and water, lens without damage, no attenuation)
12	Machine environment	The room temperature is lower than 35 degrees, the environment is free of oil, water vapor and dust, and the ventilation is good
13	Principles of use	Regular cleaning, regular lubrication and maintenance of sports platform, no illegal operation.
14	Air supply conditions	less than 3.0Mpa.
15	control software	CypCut Laser cutting system .
16	Compatible files	CAD or CorelDRAW Output DXF format file
17	Overall weight	About 1500KG.
18	Laser source	Medium power and high efficiency fiber optic filter
19	Dust suction fan	provided
