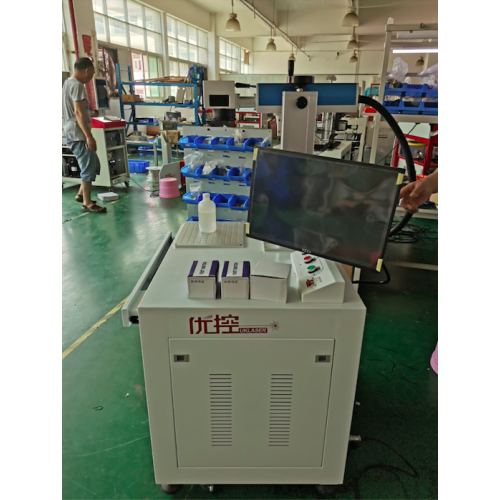

Totally enclosed optical fiber laser marking machine

Optical fiber laser marking machine
1. Model introduction
Optical fiber laser marking machine uses high-energy micron laser to directly act on the surface of metal and non-metallic materials, change the running track of light through high-speed scanning system, quickly vaporize the product surface and leave permanent fine traces. This is a contact free marking method, which has no other damage and loss to the material and does not change any characteristics of the material. The marking characters can reach dozens of wires and are still very clear. The content can be designed by computer and output on the spot. It is especially suitable for jewelry and other industries requiring fine marking.
2. Model characteristics
① Small size and low power consumption
② Fast response and high efficiency
③ Fine lines and exquisite marking effect
④ Red light positioning, accurate marking
⑤ The equipment has excellent performance and stable energy output to ensure the marking effect
3. Applicable materials
Ordinary metals and alloys (all metals such as iron, copper, aluminum, magnesium and zinc), rare metals and alloys (gold, silver and titanium), metal oxides (all kinds of metal oxides), special surface treatment (phosphating, aluminum anodizing and electroplating surface), plastics and ABS materials (electrical appliance shell and daily necessities), oil (transparent keys and printing products), Epoxy resin (sealing bag and insulating layer of electronic components), ceramic and silicon wafer.
4. Technical indicators
Laser wavelength: 1064nm
Laser power: 10W / 20W / 30W / 50W / 100W
Beam quality: < 1.5m2
Laser output power: 10% - 100% continuously adjustable
Diameter of concentrated light spot: < 0.01mm
Marking range: 0.01-0.40mm
Marking speed: > 800 standard characters / S
Minimum character: 0.15
Minimum line width: 0.012mm
Repetition accuracy: ± 0.003mm
Host power supply / power consumption: 220V / single phase / 50Hz / < 160W
Control interface: USB
