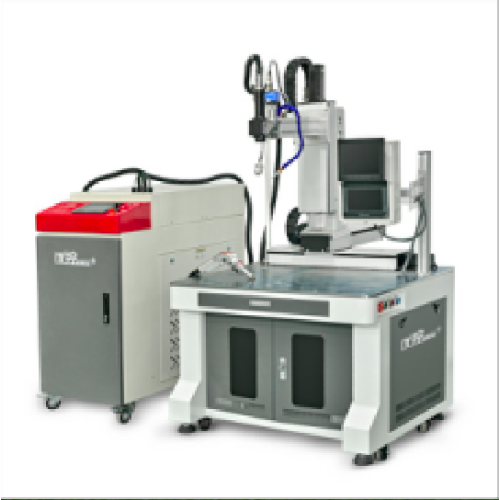

Gantry laser welding machine

The laser technology of gantry laser welding machine adopts polarizing mirror to reflect the laser beam and make it concentrate in the focusing device to produce a huge energy beam. If the focus is close to the workpiece, the workpiece will melt and evaporate in a few milliseconds. This effect can be used in welding process. The emergence of high-power CO2 and high-power YAG laser opens up a new field of laser welding.
The key of laser welding equipment is high power laser
One is solid state laser, also known as Nd: YAG laser. Nd (neodymium) is a rare earth element, YAG represents yttrium aluminum garnet, and its crystal structure is similar to ruby. The wavelength of Nd: YAG laser is 1.06 nm μ m. The main advantage is that the generated beam can be transmitted through the optical fiber, so it can be saved to the complex beam transmission system. It is suitable for flexible manufacturing system or remote processing, and is usually used for the workpiece with high welding accuracy requirements. Nd: YAG laser with output power of 3-4 kW is commonly used in automobile industry.
The second type is gas laser, also known as CO2 laser. Molecular gas is used as the working medium, and the uniform output is 10.6 μ The standard laser power is between 2-5kw.

It can carry different working tools.

Applicable materials

It mainly apply to stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, galvanized plate, aluminum galvanized plate and other metal welding.

 Applications

Widely used in aviation, machinery, electronics, communication, power, chemical industries etc.

Widely used in welding of water pipe joint, changeable diameter joint, three-way connector, lithiumion battery, batteries, electrode, stainless steel, titanium alloy, glasses buckle, frame, impeller, kettle, cup, wine pot, stainless steel bowl, sensor, diode, aluminum alloy, mobile phone battery, door handle, mixer, shelves etc., complex stamping parts, copper parts, aluminum parts, casting parts.

Welding of automobile parts including hydraulic tappet, gasoline filter, automobile exhaust sensor, solenoid valve and stator of starting motor.

Sealed welding of lithiumion battery including mobile phone battery, power battery.

Metallurgical Industry: silicon steel plate welding.

Welding of sensors and engine blades in the military industry.

Precision spot welding and seal welding of electronic components including relay.

Electrical industry: silicon steel sheet welding, air conditioning motor rotor welding, leakage protector welding.

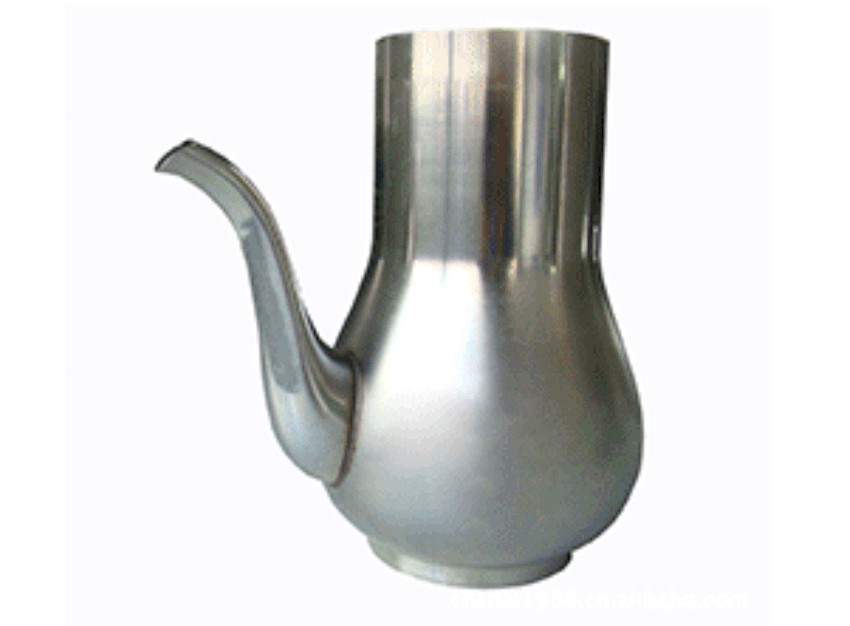

Processing products
