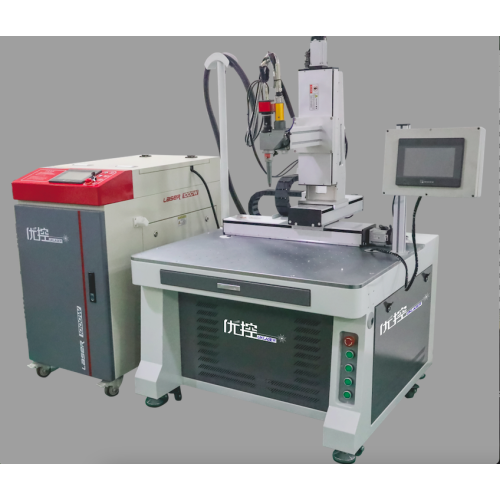

High precision laser welding equipment

$20000.00

≥15000 Set/Sets

Min. Order:: 15000 Set/Sets

Min. Order:: 15000 Set/Sets

Transportation:: Ocean, Land, Express

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C,T/T,D/P,D/A,Paypal
Incoterm:	FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP
Transportation:	Ocean,Land,Express

Product Description

Product features
1. Hand held welding joint is selected for welding large metal advertising words to overcome the limitation of workbench space.
2. Welding small metal advertising word fixed welding joint, moving word to weld, easy to operate. The fixed welding joint can rotate in all directions to overcome the inconvenience of traditional welding joint in one direction.
3. The portable welding head is equipped with 5m imported optical fiber, which is flexible and convenient for outdoor welding.
4. The operation mode of the hand-held welding gun can realize the welding of any part and any angle of the workpiece.
5. Intelligent switching of dual optical path can be done, and the time-division optical energy distribution is uniform.
6. It is suitable for spot welding of all kinds of complex welds and devices.

Scope of application
The full-function laser welding repair system was originally designed for mold repair, which is widely used in the manufacturing and defect repair of precision molds such as digital products, mobile phones, toys, automobiles and motorcycles. It can also repair or modify the size of the mold with cracks or sand holes by filling in metal welding wire of the same material, which greatly saves the production cost, improves the work efficiency and shortens the product development cycle. The welding system can also be used for plate splicing, water pipe, bathroom shower, sensor, liquid level switch, auto parts and other precision parts welding.
technical parameter

ModelNo.	WY180A/WY300A	WY180B/WY300B
LaserPower	180W/300W	180W/300W
PowerStability	optionalenergynegative-feedbackpower:±2%
LaserWavelength	1064nm
PulseWidth	≤20ms
PulseFrequency	≤100Hz
WeldingSpotDiameter	0.2-1.5mm
MaxWeldingDepth	≤1.2mm
illerWiresDiameter	0.4-1.0mm
PowerConsumption	6KW/12KW 6KW/12KW
PowerSupply	AC220V/AC380V AC220V/AC380V
BenchLoad	≤100kg
BenchStroke	250*150mm
ArmStroke	/	200*200mm, armrotatesfor3o0^hiontally
OperationInterface	7”LEDtouchcontrolinterface.Chinese/Englishavailable
LiftingStroke	Electricaliting250mm
RepeatingAccuracy	±0.01mm
PositioningAccuracy	±0.02mm
LocatingSystem	redlaser,CCDmonitorsystem,optional fixture
CoolingMethod	water cooling
HostDimensions	16007001350mm	13508001420mm
AmbientEnvironment	5'C-30℃,5%-75%humidity

Sample display:
