jewelry laser welder for sale

$20000.00

≥10000 Set/Sets

Min. Order:: 10000 Set/Sets

Min. Order:: 10000 Set/Sets

Transportation:: Ocean, Land, Express

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C,T/T,D/P,D/A,Paypal
Incoterm:	FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP
Transportation:	Ocean,Land,Express

Product Description

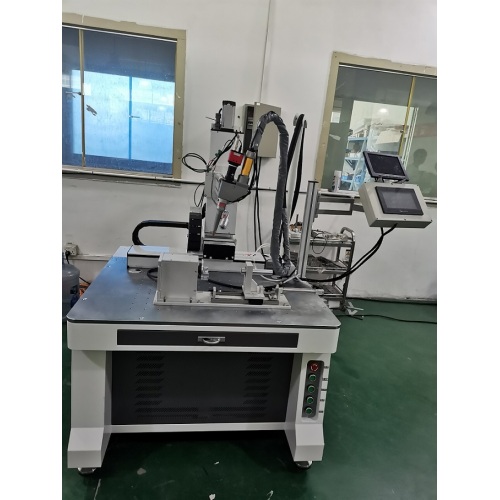

Laser welding machine
Product information
The real-time feedback control system of laser power is used in fiber-optic transmission laser. According to the preset laser waveform and combined with laser power detection device, the system can control the laser power supply in real-time closed-loop, adjust the output current of the power supply, and the laser energy can be kept stable automatically. The laser power real-time feedback control system eliminates the instability of laser energy caused by power grid fluctuation, water temperature change, xenon lamp aging and other problems, and provides the consistency of welding products.

Model	UK-HJLX-SC500W	UK-HJLX-SC1000W	UK-HJLX-SC1500W
laser power	500w	1000w	1500w
Laser wavelength	1070±5nm	1070±5nm	1070±5nm
Operation mode	Continuous / modulation
Output welding joint type	Hand held swing head + welding head
Output power stability	<3%	<3%	<3%
Power regulation range	10~100%	10~100%	10~100%
Weld penetration	0.5~2.0mm	0.5~2.5mm	0.5~3.5mm
Cooling mode	Built in water cooling	Built in water cooling	Built in water cooling
Fiber line length	Holding 10 meters, fixed head 15 meters	Holding 10 meters, fixed head 15 meters	Holding 10 meters, fixed head 15 meters
Blowing protection	Argon, nitrogen	Argon, nitrogen	Argon, nitrogen
Electricity demand	Single phase AC220 V / 50 Hz	AC220V/380V/50Hz	Three phase AC380V / 50Hz
Equipment power	3.5Kw	4.5Kw	5.5Kw
area covered	1*1.6m	1*1.6m	1*1.6m
Overall weight	180Kg	200Kg	200Kg
working temperature	0~40℃	0~40℃	0~40℃
Working humidity	10~75%	10~75%	10~75%
Environmental needs	No vibration, no interference source, keep ventilation
Consumables	Purified water, argon	Purified water, argon	Purified water, argon
