Product Description

XYZ laser welding machine/gantry double Y laser welding machine

Laser Welders Product characteristics

Integrated laser and built-in water tank on the workbench, Optimal occupancy .

Touch screen +hand-held rocker operation mode, teaching programming, easy to use, programming fast.

Gantry double Y workbench can realize double station operation , more efficient.

It can carry different working tools.

Applicable materials

It mainly apply to stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, galvanized plate, aluminum galvanized plate and other metal welding.

Applications

Widely used in aviation, Hand held laser welding machine,machinery, electronics, communication, power, chemical industries etc.

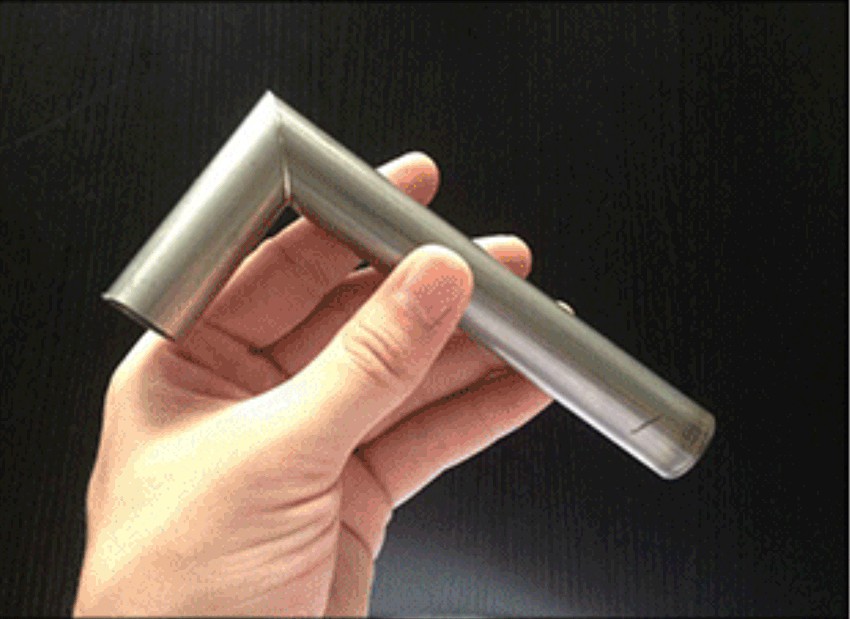

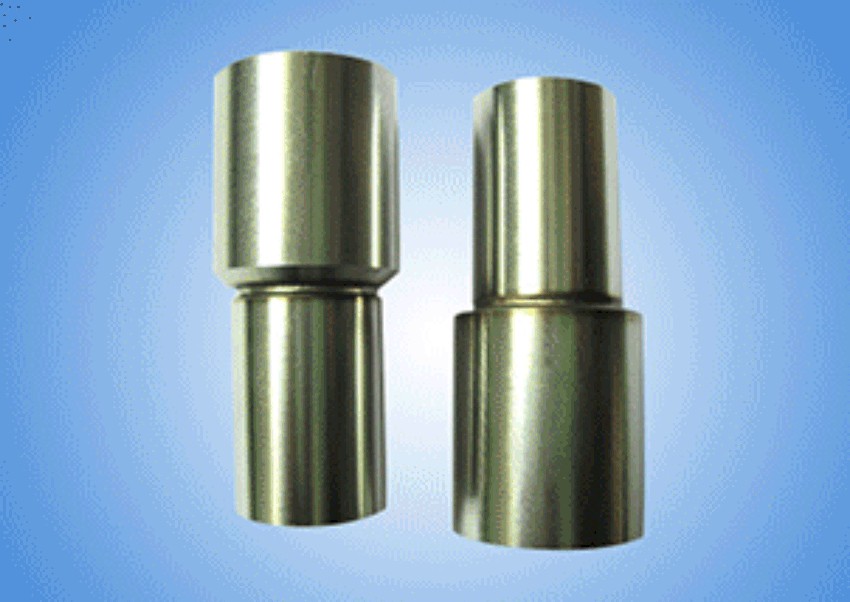

Widely used in welding of water pipe joint, changeable diameter joint, three-way connector, lithiumion battery, batteries, electrode, stainless steel, titanium alloy, glasses buckle, frame, impeller, kettle, cup, wine pot, stainless steel bowl, sensor, diode, aluminum alloy, mobile phone battery, door handle, mixer, shelves etc., complex stamping parts, copper parts, aluminum parts, casting parts.

Welding of automobile parts including hydraulic tappet, gasoline filter, automobile exhaust sensor, solenoid valve and stator of starting motor.

Sealed welding of lithiumion battery including mobile phone battery, power battery.

Metallurgical Industry: silicon steel plate welding.

Welding of sensors and engine blades in the military industry.

Precision spot welding and seal welding of electronic components including relay.

Electrical industry: silicon steel sheet welding, air conditioning motor rotor welding, leakage protector welding.

model	UK-HJLX-SC500W	UK-HJLX-SC1000W	UK-HJLX-SC1500W
laser power	500w	1000w	1500w
Laser wavelength	1070±5 nm	1070±5 nm	1070±5 nm
Operation mode	Continuous / modulation	Continuous / modulation	Continuous / modulation
Output welding joint type	Hand held swing head + welding head	Hand held swing head + welding head	Hand held swing head + welding head
Output power stability	＜3%	＜3%	＜3%
Power regulation range	10~100%	10~100%	10~100%
Weld penetration	0.5~2.0mm	0.5~2.5mm	0.5~3.5mm
Spot width	0.2-3mm	0.2-3mm	0.2-3mm
Cooling mode	Built in water cooling	Built in water cooling	Built in water cooling
Fiber line length	Standard 10 meters, fixed 15 meters	Standard 10 meters, fixed 15 meters	Standard 10 meters, fixed 15 meters
Blowing protection	Argon, nitrogen	Argon, nitrogen	Argon, nitrogen
Electricity demand	AC220v/50Hz	AC220v/380v/50Hz	AC380v/50Hz
Equipment power	3.5 Kw	4.5 Kw	5.5 Kw
area covered	1*1.6m	1*1.6m	1*1.6m
Overall weight	180 Kg	200 Kg	200 Kg
working temperature	0~40°C	0~40°C	0~40°C
Working humidity	10~75%	10~75%	10~75%
Environmental requirements	No vibration, no interference source, keep ventilation	No vibration, no interference source, keep ventilation	No vibration, no interference source, keep ventilation
Consumables	Purified water, argon	Purified water, argon	Purified water, argon
