Hand-held fiber continuous laser welding machine

 Hand-held fiber continuous laser welding machine

$20000.00

≥10000 Set/Sets

Min. Order:: 10000 Set/Sets

Min. Order:: 10000 Set/Sets

Transportation:: Ocean

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C,T/T,D/P,D/A,Paypal
Incoterm:	FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DEQ,DDP,DDU,Express Delivery,DAF,DES
Transportation:	Ocean

Product Description

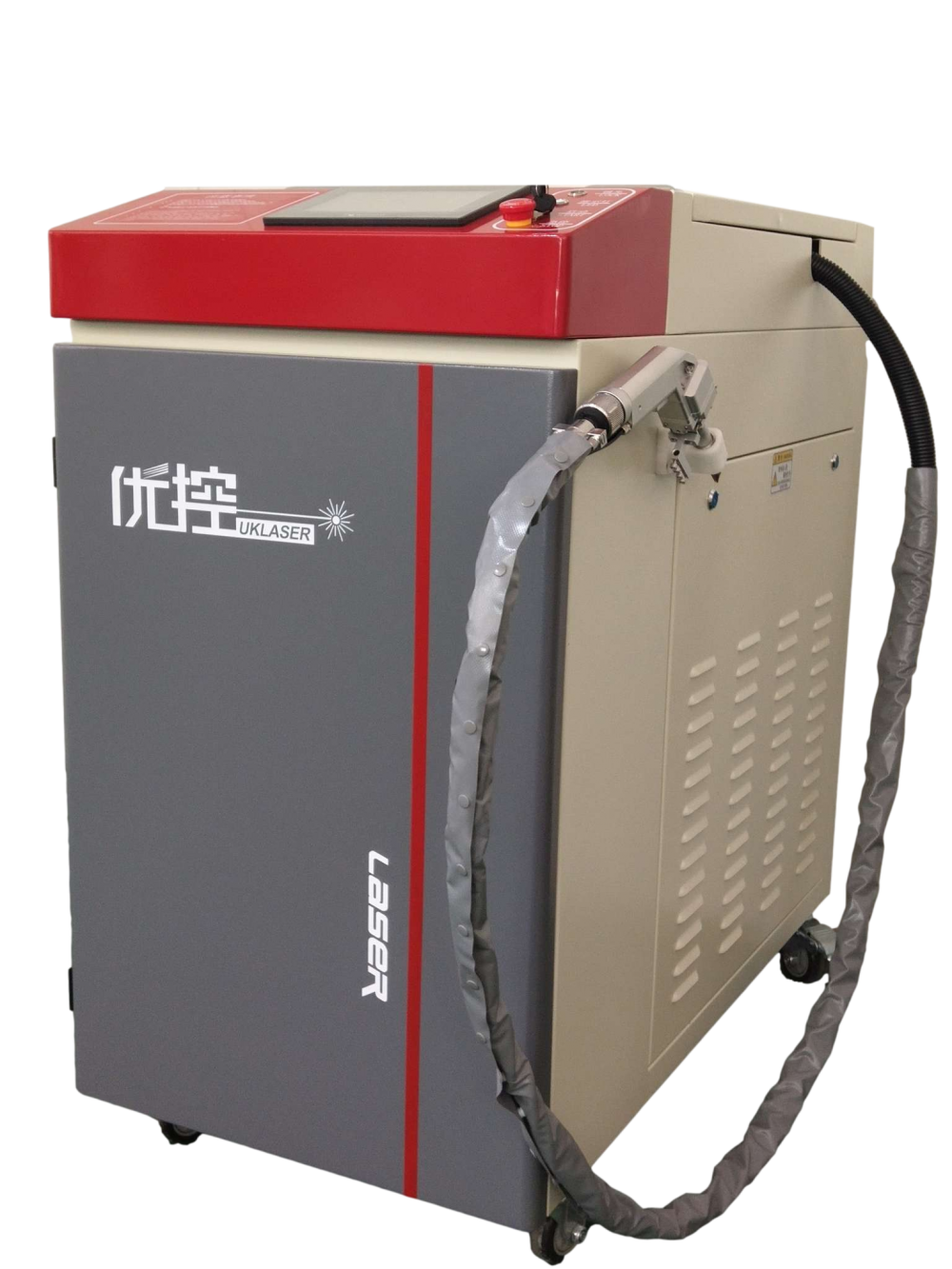

Hand-held fiber continuous laser welding machine

Product description:

YOUKONG laser produced a new high power hand-held fiber laser welding machine, its better and advantage obvious than traditional hand-held laser welding machine, can use PLC control system set Laser swing amplitude( range:0-2mm) during welding. Improved welding fault tolerance. Added safety protection, shine only on metal! Easy to use and maintain, volume reduct great, can wire weld, suitable for industry and household use.

Function characteristic:

This machine use 500-1500 watt fiber laser, high efficiency of electro-optical conversion, the laser life is long.

Maintance: free adjustment, low energy consumption, no consumables, long term use can save cost.

Volume small and structure compact, in-built water cooler, hand-held welding is flexible and convenient, can welding outdoor.

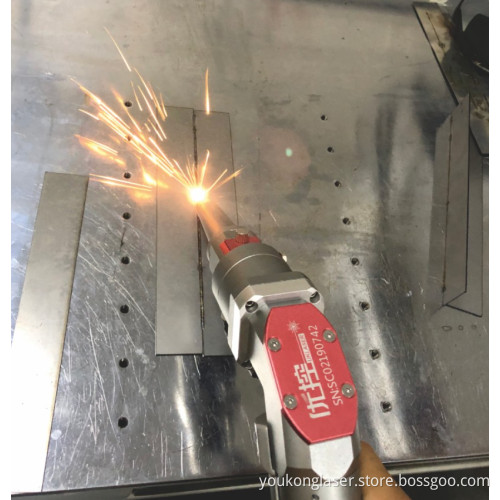

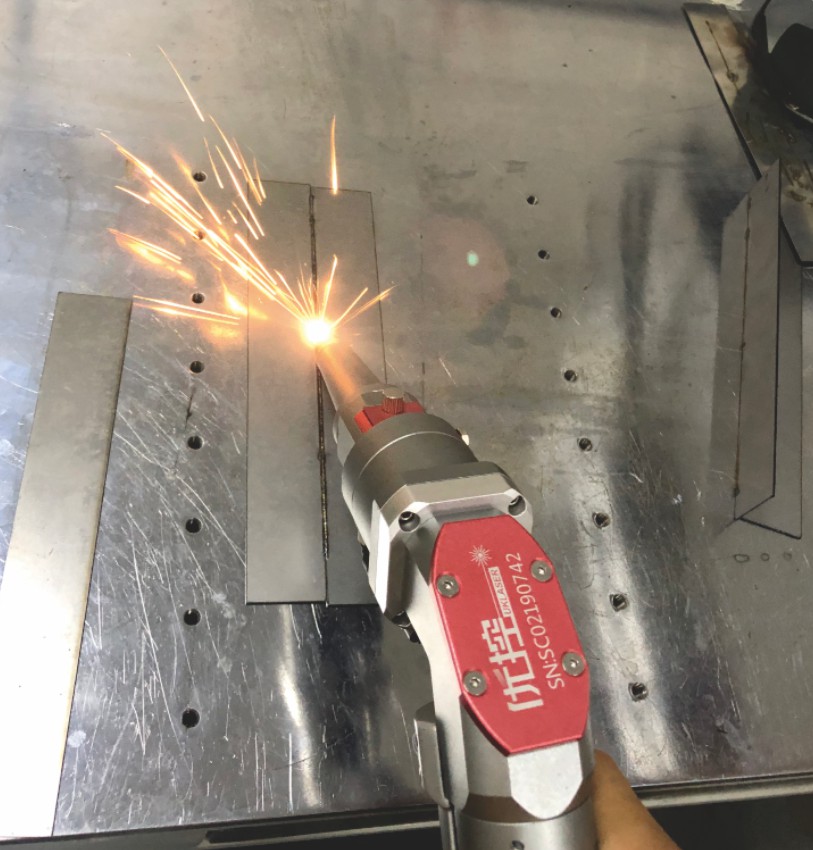

Hand-held welding head equiped with 10m import fiber optic, can weld complex workpiece, larger irregular shape workpiece, welding at any angle.

Laser beam quality transmitted by optical fiber quality is better, solder joints is more uniform, penetration better.

It very suitable for ultra-thin welding which can not be finished by argon arc welding, welding effect is good.

Easy to operate.

Great customized ability, can manufacture special machine model according to customers’ requirement.

Applicable materials:

It mainly apply to stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, galvanized plate, aluminum galvanized plate and other metal welding.

Applications:

Widely used in kitchen and bathroom industry, home appliances industry, advertising industry, mold industry, stainless steel doors and windows industry, crafts industry, home supplies industry, furniture industry, auto parts industry and other industries.

model	UK-HJLX-SC500W	UK-HJLX-SC1000W	UK-HJLX-SC1500W
laser power	500w	1000w	1500w
Laser wavelength	1070±5 nm	1070±5 nm	1070±5 nm
Operation mode	Continuous / modulation	Continuous / modulation	Continuous / modulation
Output welding joint type	Hand held swinging head	Hand held swinging head	Hand held swinging head
Output power stability	＜3%	＜3%	＜3%
Power regulation range	10~100%	10~100%	10~100%
Weld penetration	0.5~2.0mm	0.5~2.0mm	0.5~2.0mm
Spot width	0.2-3mm	0.2-3mm	0.2-3mm
Cooling mode	Built in water cooling	Built in water cooling	Built in water cooling
Fiber line length	Standard 10 meters, Max15 meters	Standard 10 meters, Max15 meters	Standard 10 meters, Max15 meters
Blowing protection	Argon, nitrogen	Argon, nitrogen	Argon, nitrogen
Electricity demand	AC220v/50Hz	AC220v/380v/50Hz	AC380v/50Hz
Equipment power	3.5 Kw	4.5 Kw	5.5 Kw
area covered	1*1.6m	1*1.6m	1*1.6m
Overall weight	180 Kg	200 Kg	200 Kg
working temperature	0~40°C	0~40°C	0~40°C
Working humidity	10~75%	10~75%	10~75%
Environmental requirements	No vibration, no interference source, keep ventilation	No vibration, no interference source, keep ventilation	No vibration, no interference source, keep ventilation
Consumables	Purified water, argon	Purified water, argon	Purified water, argon
