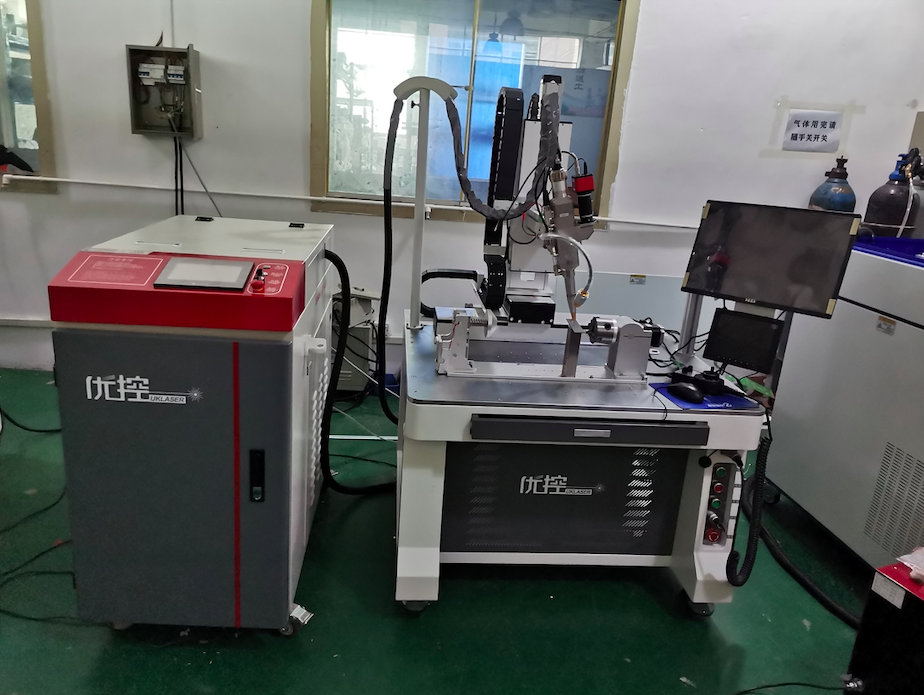

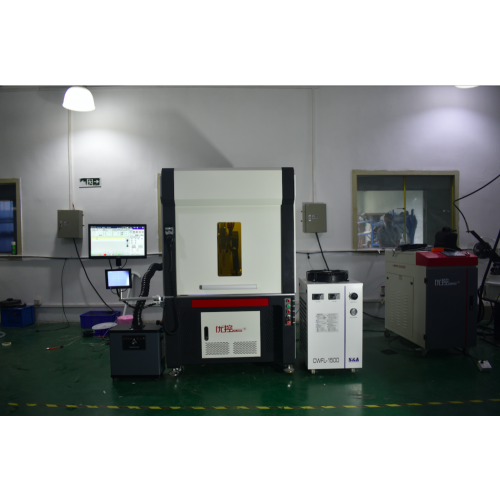

Automatic optical fiber laser welding machine equipment

$4000.00

1-3999 Set/Sets
$10000.00

≥4000 Set/Sets

Transportation:: Ocean, Land, Express

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C,T/T,D/P,D/A,Paypal
Incoterm:	FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP
Transportation:	Ocean,Land,Express

Product Description

Product Description:
Optical fiber transmission laser welding machine is a kind of laser welding equipment that couples high-energy laser beam into optical fiber, collimates it into parallel light through collimating mirror after long-distance transmission, and then focuses on the workpiece for welding. Flexible transmission non-contact welding is applied to the parts that are difficult to be accessed by welding, which has greater flexibility. The laser beam of optical fiber transmission laser welding machine can realize the light splitting in time and energy, and can process multiple beams at the same time, which provides conditions for more precise welding.
Features:
1. The optical fiber transmission laser welding machine realizes the flexible output of laser, which can work with the assembly line or be used independently;
2. Laser welding has small heat affected zone, rapid heating concentration and low thermal stress, so the deformation of the welded product is small and does not affect other properties of the product;
3. The energy is controllable, the output power is stable, and the thin-walled metal will not be welded through;
4. Small focal spot, high power density, able to weld metal and alloy materials with high melting point and high strength;
5. The laser beam energy and moving speed are adjustable, which can realize the welding of various materials;
6. Equipped with high-definition CCD system, which can monitor the weld in real time;
7. Full automatic welding or semi-automatic welding can be realized according to the needs of users, which is simple to operate and greatly saves the labor cost of users;
8. It can be used with manipulator
Application scope of optical fiber transmission laser welding machine: applications:
Optical fiber transmission laser welding machine optical fiber transmission is easy to realize automation. It is widely used in battery industry, it industry, electronic devices, optical communication industry, sensor industry, hardware industry, auto parts industry, jewelry welding industry, glasses industry, porcelain teeth, solar energy industry, electric heating industry \ thin-wall materials and precision parts welding, and can realize spot welding, butt welding, overlap welding Seal welding, etc

technical parameter
Model: xl-m30w
Laser power: 30-200w
Laser wavelength: 10.64 μ m
Line width: ≥ 0.06mm
Character: ≥ 0.4mm
Power consumption: 350-1000w
Repetition frequency: ≤ 30kHz
Power demand: 220V / 50Hz
Frequency: 20-100khz
Cooling mode: air cooling
Marking range: ≤ 300 * 300mm (customizable)
Engraving speed: ≤ 7000mm / S
Light speed mass ㎡ < 1.2
