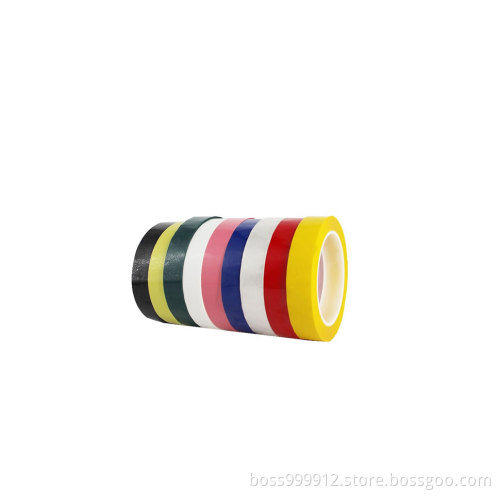

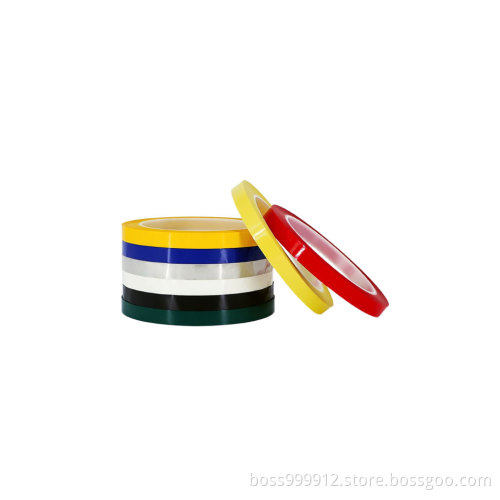

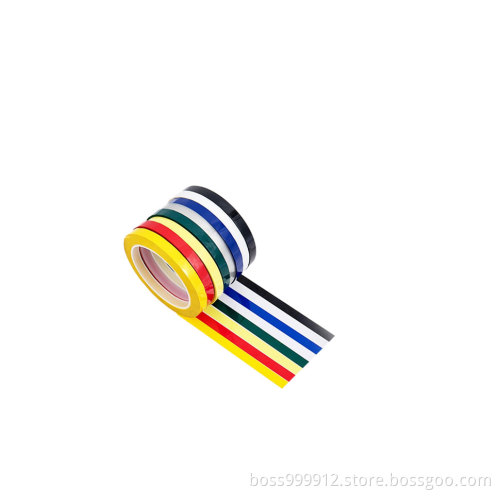

Polyester Tape With Acrylic Adhesive

The polyester tape with acrylic adhesive is also called Mylar tape. It is a single-sided tape.
Mylar tape is a polyester film (PET Film) as a base material coated with acrylic polymer pressure-sensitive adhesive made of high temperature and high pressure flame retardant insulating adhesive tape. Polyester adhesive tape has the characteristics of high temperature resistance, high pressure resistance, good insulation performance and flame retardants. It is often used for insulation wrapping of various motors and electronic resistance parts such as transformers, motors, capacitors, etc.also known as polyester insulation tape.

Polyester Tape With Acrylic Adhesive-Technical Data
Color：light yellow,dark yellow,blue,red,green,black,white,clear,customized
Carrier：PET film
Adhesive：Acrylic
Thickness：0.055mm，0.08mm(customized）
Adhesion：700g-900g
Withstand Voltage：6000（Volts）
Temperature:100℃ 30mins
Core size:25.4mm/38mm/76mm

Application Of Polyester Tape With Acrylic Adhesive
Suitable for insulation and fixing of various motors and electronic components such as transformers, capacitors, relays, voltage regulators, motors, etc.
Motor stator coil cover, motor coil fixing, power transformer coil wrapping and outer insulation,
During the impregnation process of the circuit board, cover the gold finger parts to prevent the plating solution from immersing and contaminating, and protect the circuit board,

Main Features Of Polyester Tape With Acrylic Adhesive
Strong adhesion
Many specifications and many colors
Chemical resistant, moisture and flame retardant
Customized specifications are more practical

Hopelight Electrical is a professional heat resistant tape manufacturer, we provide silicone polyester tape, polyimide tape and etc. Want to know more? Please contact us.
