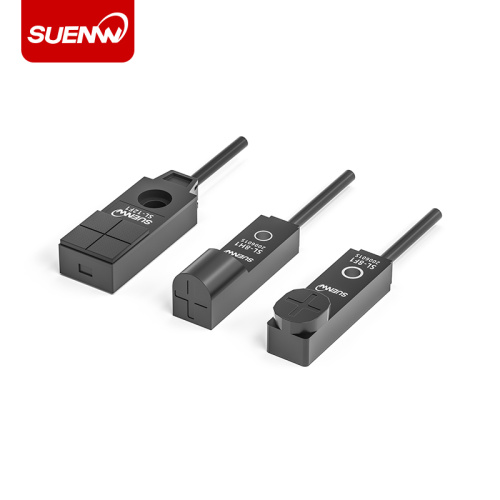

DC 3-Wire Type Proximity Sensor SL-8F1/8F2
1. The SL-8F□/12□ series meets the requirements of low-cost proximity sensors and is best suited for customers who use a large number of sensors to reduce costs.
2.Wide range of models for various applications
3. Easy installation, no special mounting bracket required
4. Protective structure up to IP67 (IEC, waterproof)
At present, the main products are: safety light curtain, photoelectric switch series, proximity switch series, optical fiber sensor series, ultrasonic sensor, intelligent sensor, displacement sensor, gas pressure sensor, etc. Look forward to your cooperation!
|
Model |
SL-8F□ |
SL-8H□ |
SL-12F□ |
|
|
Maximum Sensing Distance |
2.5mm±20% |
4.0mm±20% |
||
|
Stable Sensing Distance |
0-1.8mm |
0-3mm |
||
|
Standard Sensing Object |
Iron: 15*15*1mm |
Iron: 20*20*1mm |
||
|
Power Supply Voltage |
12 to 24V DC±10% |
|||
|
Current Consumption |
15mA max |
10mA max |
||
|
Control Output |
NPN Open collector output 100mA max(DC 30V) |
|||
|
Differential Travel |
20% max of the Sensing distance |
|||
|
Differential Travel Frequency |
1.3kHz |
1kHz |
||
|
Circuit Protection |
Short-circuit protection |
|||
|
Working Status Indicator |
Operating display (Orange LED) |
|||
|
Ambient Temperature |
Operating: -25 to +70℃, Storage: -30 to +80℃ |
Operating: -10 to +55℃ |
||
|
Ambient Humidity |
Operating, Storage: 35 to 95%RH (With no icing) |
|||
|
Residual Voltage |
1V max (Load: 100mA) 0.4V max Load 16mA |
|||
|
Insulating Resistance |
50Ω max.(DC250V) Between current-carrying parts and case |
|||
|
Voltage Withstand |
AC 1000V 1min Between current-carrying parts and case |
|||
|
Vibration |
Durable |
10 to 55Hz Complex amplitude 1.5mm each in X, Y, and Z directions 2h |
||
|
Shock |
Durable |
1000m/s² for 3 times each in X, Y, and Z directions |
||
|
Protective Structure |
IEC-IP67 |
|||
|
Material |
Case |
Polyarylate (PAR) |
||
|
Quality |
Approx: 13g |
Approx: 20g |
||
