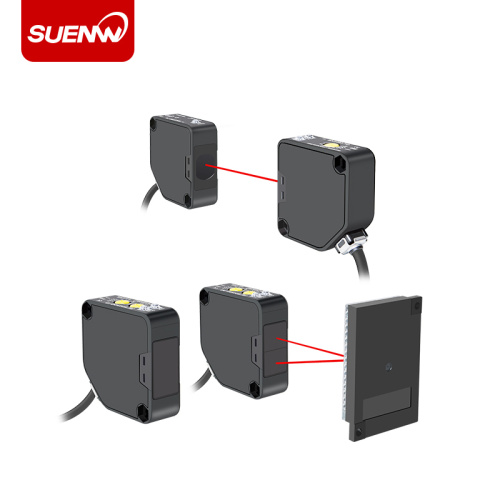

Square photoelectric sensor BN5M-MD
-
$17.00≥1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | L/C,T/T |
|---|
AC/DC Free Light Source Amplifier Built-in Type Photoelectric Sensor(Photosensor Sensor)
A photoelectric sensor is a sensor that uses a photoelectric element as a detection element.
Mechanical: 50000000 times min.(Opening and closing frequency: 18000 times/h)
On the surface of the receiver Incandescent light: 300lx max
LED indicator for easy installation
At present, the main products are: safety light curtain, photoelectric switch series, proximity switch series, optical fiber sensor series, ultrasonic sensor, intelligent sensor, displacement sensor, gas pressure sensor, etc. Look forward to your cooperation!
|
Product Model |
BN10M-T |
BN5M-M |
BN300-D |
BN700-D |
|
|
Sensing Distance |
10m |
3m |
300m |
700m |
|
|
Standard Sensing Object |
Opaque objects: 14.8mm min |
White paper: 100×100mm |
|||
|
Power Supply Voltage |
12 to 24VDC 24 to 240VAC±10% |
||||
|
Power Consumption |
DC/AC 1W max. |
||||
|
Output Configuration |
Light-ON; Dark-ON(Switchable) |
||||
|
Control Output |
Relay Output DC30V(Load: 3A); AC250V(Load 3A); Contact composition: 1C |
||||
|
Differential Travel |
- |
20% max of the Sensing Distance |
|||
|
Response Time |
20ms max. |
||||
|
Directional Angle |
Projector and receiver: 3-20° |
1-5° |
- |
||
|
Lifetime(Relay Output) |
Mechanical: 50000000 times min.(Opening and closing frequency: 18000 times/h) |
||||
|
Electrical: 100000 times min.(Opening and closing frequency: 1800 times/h) |
|||||
|
Light Source (Luminous Wavelength) |
Infrared Emitting Diode(950nm) |
||||
|
Ambient Illumination |
On the surface of the receiver Incandescent light: 300lx max |
||||
|
Ambient Temperature |
Operating: -25-+70℃, Storage: -40-+85℃(With no icing or condensation) |
||||
|
Ambient Humidity |
Operating: 45 to 85%RH; Storage: 35 to 95%RH(With no condensation) |
||||
|
Insulating Resistance |
20MΩ min(DC500V) |
||||
|
Voltage Withstand |
AC1500V 50/60Hz 1min |
||||
|
Vibration |
10-55Hz 1.5-mm dual amplitude for 2h each in X, Y, and Z directions |
||||
|
Shock |
Durable |
500m/s² for 3 times each in X, Y, and Z directions |
|||
|
Misfire |
100m/s² for 3 times each in X, Y, and Z directions |
||||
|
Protective Structure |
IFC-IP64 |
||||
|
Material |
Case |
ABS |
|||
|
Sensing Surface |
Acrylic Resin |
||||
|
Quality |
Approx: 354g |
Approx: 208g |
Approx: 195g |
||
|
Accessories |
Metal mounting accessories, Screws, Nuts |
||||
