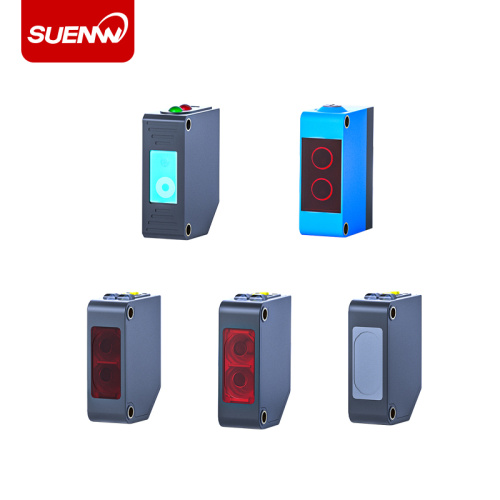

Square photoelectric sensor EW-R61/81
-
$14.00≥1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | L/C,T/T |
|---|
Photoelectric Sensor EW-R61/81 (Photoelectric Retro-Reflective Type Sensor & Square Type Photoelectric Switch Sensor)
- Features of the square photoelectric sensor: enables colour discrimination, where the reflectance and absorption of the light formed by the detected object vary according to the wavelength of the light being thrown and the colour combination of the detected object. Using this property, the colour of the detected object can be detected.
- At present, the main products are: safety light curtain, photoelectric switch series, proximity switch series, optical fiber sensor series, ultrasonic sensor, intelligent sensor, displacement sensor, gas pressure sensor, etc. Look forward to your cooperation!
|
Sensing Method |
Through-beam type |
Retro-Reflective Type |
Diffuse Reflection Type |
||||||
|
Wide field of view |
Long-range |
Narrow beam |
Setting Distance Type |
||||||
|
Models |
NPN Output |
EW-T21 |
EW-T61 |
EW-LT61 |
EW-R61 |
EW-D61 |
EW-D62 |
EW-L61 |
EW-LS61 |
|
PNP Output |
EW-T41 |
EW-T81 |
EW-LT81 |
EW-R81 |
EW-D81 |
EW-D82 |
EW-L81 |
EW-LS81 |
|
|
Sensing Distance |
2m |
6m |
20m |
3m[100mm] |
100mm |
600mm |
300mm |
20-200mm |
|
|
Sensing Object |
Opaque objects φ12mm min |
Opaque objects φ75mm min |
Transparent objects, semi-transparent objects, opaque objects |
||||||
|
Differential Travel |
- |
15% max of the Sensing Distance |
|||||||
|
Repeated Accuracy |
0.5mm max |
1mm max |
|||||||
|
Response Time |
1ms max |
2ms max |
1ms max |
||||||
|
Light-Emitting Element |
Infrared LED |
Red laser |
Red LED |
Infrared LED |
Red laser |
Red LED |
|||
|
Directional Angle |
2 to 10° |
- |
|||||||
|
Supply Voltage |
DC12 to 24V±10% Pulse (p-p) 10% max |
||||||||
|
Current Consumption |
35mA max |
10mA max |
25mA max |
||||||
|
Control Output |
Output Form |
<NPN Output type>NPN Open collector transistor |
<PNP Output type>PNP Open collector transistor |
||||||
|
|
|
||||||||
|
|
|
||||||||
|
|
|
||||||||
|
|
|
||||||||
|
Output Action |
NO/NC Switchable |
||||||||
|
Indicator Light |
Action indicator (orange), stability indicator (green) [Light Emitter with through-beam type only have power indicator (orange)] |
||||||||
|
Sensitivity Adjustment |
Single-directional rotary knob |
- |
Single-directional rotary knob |
5-turn endless rotary knob |
|||||
|
Anti-Interference Function |
Equipped |
||||||||
|
Protective Circuit |
Power reverse connection protection, output short circuit protection, output reverse connection protection |
||||||||
|
Environmental Performance |
Protective Structure |
IEC Standard IP64 |
|||||||
|
Ambient Illumination |
On the surface of the receiver Incandescent light: 3000 lx max; Sunlight: 10000 lx max |
||||||||
|
Ambient Temperature |
Operating: -20 to +60℃(With no icing or condensation), Storage: -40 to +70℃(With no icing or condensation) |
||||||||
|
Ambient Humidity |
Operating: 35 to 85%RH; Storage: 35 to 95%RH(With no condensation) |
||||||||
|
Insulating Resistance |
20MΩ min(DC500V Megohmmeter) |
||||||||
|
Voltage Withstand |
AC1000V 50/60Hz 1min |
||||||||
|
Vibration Resistance |
10 to 55Hz 1.5-mm dual amplitude for 2h each in X, Y, and Z directions |
||||||||
|
Shock Resistance |
500m/s² for 3 times each in X, Y, and Z directions |
||||||||
|
Connecting Method |
Pre-wired (standard Cable length 2m) |
||||||||
|
Material |
Case |
Case: PBT; Lens: Acrylic |
|||||||
|
Cable |
0.2mm2 2cores/3cores/4cores Rubber cable, length 2m |
||||||||
|
Accessories |
Instruction manual, screwdriver, reflector(retro-reflective type) |
||||||||
|
Weight |
120g |
65g |
|||||||
1. When using EW-R61/81, please set the distance between the sensor and the reflector plate to be greater than the value in [100mm]
2. The Sensing Distance of diffuse reflector type is the distance when the white background A4 paper is Sensing
3. Reflectors are sold separately
