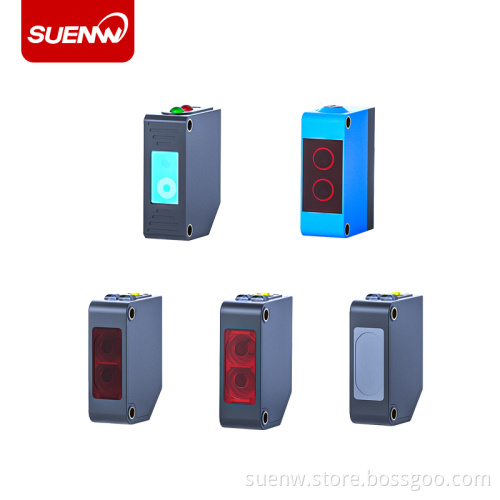

Square photoelectric sensor EW-T61/81

$15.00

≥1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C,T/T

Product Description

Photoelectric Sensor EW-T61 (Switch Photoelectric Square Sensor & Through-Beam Photoelectric Sensors Switch)

Features of the square photoelectric sensor: high resolution, the ability to achieve high resolution by superior design techniques to focus the projected light beam on small light points or by constituting a special light-receiving optical system. Detection of tiny objects and high-precision position detection are also possible.
At present, the main products are: safety light curtain, photoelectric switch series, proximity switch series, optical fiber sensor series, ultrasonic sensor, intelligent sensor, displacement sensor, gas pressure sensor, etc. Look forward to your cooperation!

Sensing Method		Through-beam type			Retro-Reflective Type	Diffuse Reflection Type
						Wide field of view	Long-range	Narrow beam	Setting Distance Type
Models	NPN Output	EW-T21	EW-T61	EW-LT61	EW-R61	EW-D61	EW-D62	EW-L61	EW-LS61
	PNP Output	EW-T41	EW-T81	EW-LT81	EW-R81	EW-D81	EW-D82	EW-L81	EW-LS81
Sensing Distance		2m	6m	20m	3m[100mm]	100mm	600mm	300mm	20-200mm
Sensing Object		Opaque objects φ12mm min			Opaque objects φ75mm min	Transparent objects, semi-transparent objects, opaque objects
Differential Travel		-				15% max of the Sensing Distance
Repeated Accuracy		0.5mm max				1mm max
Response Time		1ms max		2ms max	1ms max
Light-Emitting Element		Infrared LED		Red laser	Red LED	Infrared LED		Red laser	Red LED
Directional Angle		2 to 10°				-
Supply Voltage		DC12 to 24V±10% Pulse (p-p) 10% max
Current Consumption		35mA max			10mA max				25mA max
Control Output	Output Form	<NPN Output type>NPN Open collector transistor Maximum Inflow Current: 80mA External voltage: 30V DC max(Output between -0V) Residual voltage: 2V max(When the inflow current is 80mA) 1V max(When the inflow current is 16mA)				<PNP Output type>PNP Open collector transistor Maximum Inflow Current：80mA External voltage：30V DC max(Output between -+V) Residual voltage：2V max(When the inflow current is 80mA) 1V max(When the inflow current is 16mA)




	Output Action	NO/NC Switchable
	Indicator Light	Action indicator (orange), stability indicator (green) [Light Emitter with through-beam type only have power indicator (orange)]
Sensitivity Adjustment		Single-directional rotary knob		-	Single-directional rotary knob				5-turn endless rotary knob
Anti-Interference Function		Equipped
Protective Circuit		Power reverse connection protection, output short circuit protection, output reverse connection protection
Environmental Performance	Protective Structure	IEC Standard IP64
	Ambient Illumination	On the surface of the receiver Incandescent light: 3000 lx max; Sunlight: 10000 lx max
	Ambient Temperature	Operating: -20 to +60℃(With no icing or condensation), Storage: -40 to +70℃(With no icing or condensation)
	Ambient Humidity	Operating: 35 to 85%RH; Storage: 35 to 95%RH(With no condensation)
	Insulating Resistance	20MΩ min(DC500V Megohmmeter)
	Voltage Withstand	AC1000V 50/60Hz 1min
	Vibration Resistance	10 to 55Hz 1.5-mm dual amplitude for 2h each in X, Y, and Z directions
	Shock Resistance	500m/s² for 3 times each in X, Y, and Z directions
Connecting Method		Pre-wired (standard Cable length 2m)
Material	Case	Case: PBT; Lens: Acrylic
	Cable	0.2mm2 2cores/3cores/4cores Rubber cable, length 2m
	Accessories	Instruction manual, screwdriver, reflector(retro-reflective type)
Weight		120g			65g
