Optical Fibre Amplifier FDQ-N18P
-
$40.00≥1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | T/T,L/C |
|---|

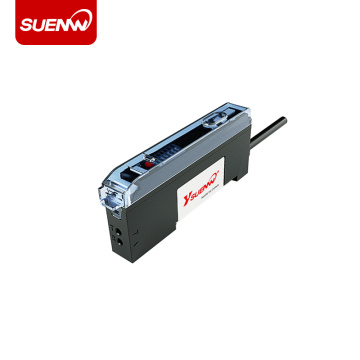

Eight-Digit Digital Display FDQ-N18P Optical Fibre Amplifier (Optical Fibre Sensor)
1. High accuracy, high resolution and reliable performance
2.Response frequency up to 5kHz
3. Easy to operate, powerful, 4 detective modes
At present, the main products are: safety light curtain, photoelectric switch series, proximity switch series, optical fiber sensor series, ultrasonic sensor, intelligent sensor, displacement sensor, gas pressure sensor, etc. Look forward to your cooperation!
|
Model |
FDQ-N18N |
|
|
Type |
Standard 1-way output cable |
|
|
Output Type |
NPN |
|
|
Main Unit/Expansion Unit |
Main module (not expandable) |
|
|
Control Output |
1-way output |
|
|
Monitor Output (1-5V) |
- |
|
|
External Output |
- |
|
|
Response Time |
50μs(HIGH SPEED)/250μs(FINE)/500μs(TURBO)/1ms(SUPER)/4ms(ULTRA)/16ms(MEGA) |
|
|
Connect Multiple Expansion Units |
Unsupported |
|
|
Output Switching |
Light-ON/ Dark-ON Switching |
|
|
Light Source |
Red 4-Element LED(Wavelength: 630nm) |
|
|
Timer Function |
Turn off the timer; Disconnect delay timer; Turn on delay timer; Single timer |
|
|
Protective Circuit |
Reverse power connected protection; Output overcurrent protection and output current protection |
|
|
Number Of Anti-Interference Units |
0 Units (Interference prevention function is not supported) |
|
|
Case Size |
30.3mm(H)×9.8mm(W)×71.8mm(L) |
|
|
Rating |
Power Supply Voltage |
12 to 24VDC±10%、Ripple (P-P)10% max |
|
Rated Value |
Current Consumption |
Normal: 630mW max(When 24V, 26mA max; When 12V, 34mA max)*1 |
|
Environmental Resistance |
Ambient Light Exposure |
Incandescent light: 20000lux or lower; Daylight lamp: 30000lux or lower |
|
Ambient Temperature |
－20 to +55℃(With no icing)*2 |
|
|
Relative Humidity |
-35 to 85%RH(With no condensation) |
|
|
Vibration Resistance |
10-55Hz Dual Amplitude 1.5mm, each in X, Y, and Z directions 2h |
|
|
Shock Resistance |
-500m/s² for 3 times each in X, Y, and Z directions |
|
|
Case Material |
Case materials for main modules and expansion modules: Polycarbonate |
|
|
Weight |
Approx: 75g |
|
