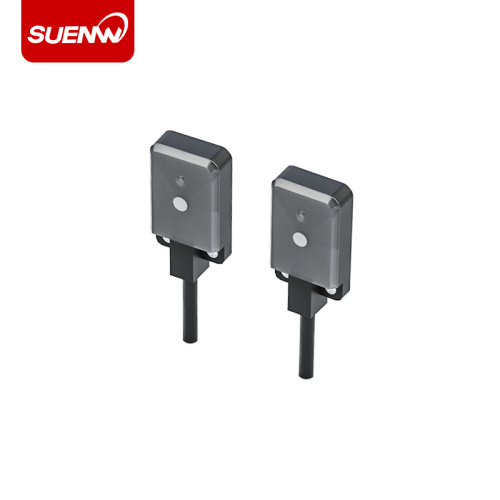

Micro Photoelectric Sensor SX-FD11 (Photosensor Sensor)
1. High precision, high resolution and reliable performance
2. Response frequency of 1ms or less
3. Simple operation and powerful functions
At present, the main products are: safety light curtain, photoelectric switch series, proximity switch series, optical fiber sensor series, ultrasonic sensor, intelligent sensor, displacement sensor, gas pressure sensor, etc. Look forward to your cooperation!
Product Model
SX-FD11
Sensing Distance
5-30mm(White drawing paper 50×50mm)
Minimum Detectable Object
Φ0.2mm min(Sensing Distance 10mm)
Differential Travel
15% max of the operating distance
Light-Emitting Element
Red LED
Power Supply Voltage
12 to 24V DC Pulse (P-P)±10% max
Current Consumption
20mA max
Protective Circuit
Short-circuit protection
Response Time
1ms max
Control Output
Load power supply voltage: 30V DC max
Load power supply voltage: 50mA max.(Residual voltage: 2V max)
Ambient Illumination
Incandescent light: 5000lx max; Sunlight: 10000lx max
Ambient Temperature
Operating: -25 to +55℃, Storage: -30 to +70℃(With no icing or condensation)
Ambient Humidity
Operating: 35 to 85%RH; Storage: 35 to 85%RH(With no condensation)
Insulating Resistance
20MΩ min(DC500V)
Voltage Withstand
AC1000V 50/60Hz 1min
Vibration
Durable
10-55Hz 1.5-mm dual amplitude for 1h each in X, Y, and Z directions
Shock
Durable
Acceleration 500m/s²(Approx: 50G) each in X, Y, and Z directions 3 times
Protective Structure
IEC-IP67
Material
Case
PBT
Sensing surface
Denaturated Polyarylester
Weight
Approx: 25g
