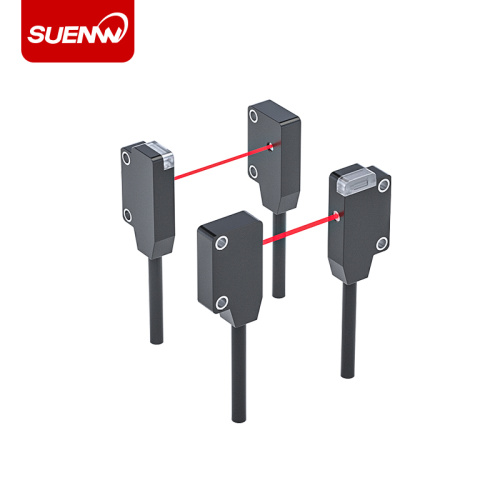

Micro Photoelectric Sensor SX-E11N2

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T,L/C

Product Description

Ultra-Slim Photoelectric Sensor(Photosensor Sensor)

The photoelectric sensor is a sensor that uses a photoelectric element as the detection element.
Current Consumption: Light projector: 10mA max. Light Receiver: 10mA max
Small size, easy to install, minimum thickness 3.5 mm
At present, the main products are: safety light curtain, photoelectric switch series, proximity switch series, optical fiber sensor series, ultrasonic sensor, intelligent sensor, displacement sensor, gas pressure sensor, etc. Look forward to your cooperation!

Product Model		SX-11N1	SX-13N1	SX-E11N1	SX-E13N1
		SX-11N2	SX-13N2	SX-E11N2	SX-E13N2
Sensing Distance		150mm	300mm	150mm	300mm
Minimum Detectable Object		Opaque objects: 1mm
Differential Travel		-
Light Source (Luminous Wavelength)		Infrared Emitting Diode(680nm)
Power Supply Voltage		12 to 24V DC Pulse (P-P)±10% max
Current Consumption		Light projector: 10mA max. Light Receiver: 10mA max
Protective Circuit		Short-circuit protection
Response Time		0.5ms max.
Control Output		Load power supply voltage: 30V DC max
		Load power supply voltage: 50mA max.(Residual voltage: 2V max)
Ambient Illumination		Incandescent light: 5000lx max
Ambient Temperature		Operating: -25 to +55℃, Storage: -30 to +70℃(With no icing or condensation)
Ambient Humidity		Operating: 35 to 85%RH; Storage: 35 to 85%RH(With no condensation)
Insulating Resistance		20MΩ min(DC500V)
Voltage Withstand		AC1000V 50/60Hz 1min
Vibration	Durable	10-500Hz 3-mm dual amplitude for 2h each in X, Y, and Z directions
Shock	Durable	500m/s² for 3 times each in X, Y, and Z directions
Protective Structure		IEC-IP67
Material	Case	Denaturated Polyarylester
	Sensing surface	Denaturated Polyarylester
Accessories		M2×8 Screws, Spring spacer, Flat Washers
