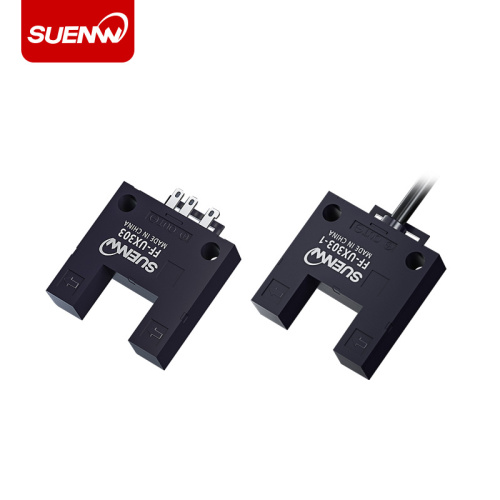

Groove Photoelectric Sensor FF-UX303

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T,L/C

Product Description

FF-UX303 Photoelectric Sensor

Groove Photoelectric Sensor: The sensitive element is the core component of the sensor, the element used to sense external information and convert it into useful information. The same sensitive element can constitute a photoelectric switch for different applications depending on the device.
At present, the main products are: safety light curtain, photoelectric switch series, proximity switch series, optical fiber sensor series, ultrasonic sensor, intelligent sensor, displacement sensor, gas pressure sensor, etc. Look forward to your cooperation!

Sensing Method		Through-beam type
Sensing Distance		13mm(Groove width)
Standard Sensing Object		Opaque objects: 2.2×0.5mm min
Differential Travel		0.05mm max
Light Source (Luminous Wavelength)		GaAs Infrared Emitting Diode(940mm)
Power Supply Voltage		DC5 to 24V±10% Ripple (p-p) 10% max
Current Consumption		15mA max
Control Output		NPN Voltage output: Load power supply voltageDC5 to 24V; Load current80mA max
		OFF Current0.5mA max
		Residual voltage: 2.0V max(When Load current is 80mA)
		Residual voltage: 1.0V max(When Load current is 10mA)
Response Frequency		100Hz min
Ambient Illumination		On the surface of the receiver Fluorescent lamp: 1000lx max
Ambient Temperature		Operating: -10 to +55℃; Storage: -25 to +65℃(With no icing or condensation)
Ambient Humidity		Operating: 5 to 85%RH; Storage: 5 to 95%RH(With no icing or condensation)
Vibration	Durable	10 to 55H z 1.5-mm up and down amplitude for 2h (4-mm periods) each in X, Y, and Z directions
Shock	Durable	500m/s² for 3 times each in X, Y, and Z directions
Protective Structure		IP50 IEC60529 Specification
Connecting Method		Plug-in type(Non-solderable)
Material	Case	Polycarbonate
