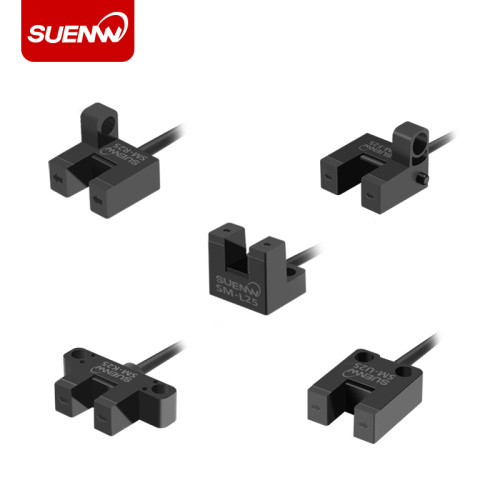

Groove Photoelectric Sensor SM-F25/F25P
-
$5.00≥1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | L/C,T/T |
|---|
Photoelectric Sensor SM-F25/F25P (F-Type Photoelectric Switch Sensor & Groove Lead-Out Type Switch Sensor)
- Photoelectric Sensor:The relationship between the terminal voltage and the photocurrent applied to the photodevice under a certain light is called the voltammetric characteristic. It is the basis for the selection of electrical parameters when designing the sensor. Care should be taken not to exceed the maximum permissible power consumption of the device when in use.
-
At present, the main products are: safety light curtain, photoelectric switch series, proximity switch series, optical fiber sensor series, ultrasonic sensor, intelligent sensor, displacement sensor, gas pressure sensor, etc. Look forward to your cooperation!
|
Sensing Method |
Through-beam type |
||
|
Sensing Distance |
5mm(Groove width) |
||
|
Minimum Sensing |
1.2×0.8mm Opaque objects |
||
|
Differential Travel |
0.05mm max |
||
|
Repeated Accuracy |
0.01mm max |
||
|
Light-Emitting Element |
Infrared LED(Peak wavelength of projected light: 855nm; Non-modulated) |
||
|
Power Supply Voltage |
5 to 24V DC±10% Pulse (P-P)10% max |
||
|
Current Consumption |
15mA max |
||
|
Control Output |
Output Type |
<NPN Output Type> NPN Open collector transistor |
<PNP Output Type> PNP Open collector transistor |
|
Maximum inflow current: 50mA |
Maximum inflow current: 50mA |
||
|
External voltage: 30V DC max(Between output and 0V) |
External voltage: 30V DC max(Between output and +V) |
||
|
Residual voltage: 2V max(When Inflow current is 50mA) |
Residual voltage: 2V max(When Inflow current is 50mA) |
||
|
1V max(When Inflow current is 16mA) |
1V max(When Inflow current is 16mA) |
||
|
Output Action |
Light-ON/Dark-ON Equipped with 2 types of output |
||
|
Action Indication |
Red LED(Light up When light is received) |
||
|
Response Time |
Light-ON: 20μs max; Dark-ON: 80μs max |
||
|
Response Frequency |
1kHz min(Maximum value is 3kHz) |
||
|
Environmental Performance |
Ambient Illumination |
On the surface of the receiver Fluorescent lamp: 1000lx max |
|
|
Ambient Humidity |
Operating: 5 to 85%RH; Storage: 5 to 95%RH(With no icing or condensation) |
||
|
Ambient Temperature |
Operating: -25 to +55℃(Be careful not to condense or freeze); Storage: -30 to +80℃ |
||
|
Vibration Resistant |
Frequency 10 to 2000Hz 1.5-mm dual amplitude for 2h each in X, Y, and Z directions |
||
|
Shock Resistance |
Acceleration 15000m/s²(Approx 1500G) for 3 times each in X, Y, and Z directions |
||
|
Short-circuit protection |
Equipped |
||
|
Protective Structure |
IP65 IEC60529 Specification |
||
|
Material |
Case: Polybutylene Terephthalate(PBT); Slit light transmission cover(Light casting and light receiving sections): Polycarbonate |
||
|
Cable |
Diameter 0.09mm*4 cores Bending-resistant, oil-resistant, heat-resistant rubber cable(Maximum length 3m) |
||
|
Connecting Method |
Lead-out type (standard Cable length 1m) |
||
|
Weight |
Body weight: Approx 15g |
||
