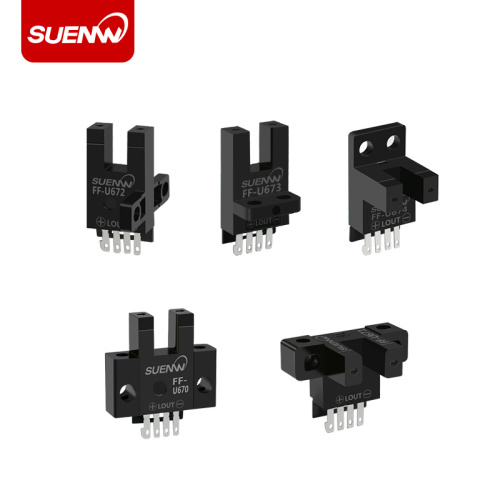

Groove Photoelectric Sensor FF-U674A/U674R
-
$2.00≥1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | L/C,T/T |
|---|
Photoelectric Sensor FF-U674A/U674R
- The photoelectric sensor is a new generation of photoelectric sensor devices manufactured using integrated circuit technology and SMT surface mounting process, with intelligent functions such as time delay, spreading, external synchronisation, resistance to mutual interference, high reliability, stable working area and self-diagnosis.
- At present, the main products are: safety light curtain, photoelectric switch series, proximity switch series, optical fiber sensor series, ultrasonic sensor, intelligent sensor, displacement sensor, gas pressure sensor, etc. Look forward to your cooperation!
|
Sensing Method |
Through-beam type |
|
|
Sensing Distance |
5mm(Groove width) |
|
|
Standard Sensing Object |
Opaque objects above 2×0.8mm |
|
|
Differential Travel |
0.025mm max |
|
|
Light Source (Luminous Wavelength) |
GaAsInfrared Emitting Diode(940nm) |
|
|
Indicator Light |
Lights up when light is received(Red)(Type A and Type R light up when shading) |
|
|
Power Supply Voltage |
DC5 to 24V±10% Ripple(p-p) max |
|
|
Current Consumption |
35mA max(NPN Type); 30mA max |
|
|
Control Output |
NPN Type: NPN Open connector Output DC5 to 24V 100mA max |
|
|
Residual voltage0.8V max(When load current 100mA); Residual voltage0.4V max(When Load current 40mA); OFF Current(Leakage current)0.5mA max |
||
|
PNP Type: PNP Open connector Output DC5 to 24V 50mA max |
||
|
Residual voltage1.3V max(When load current 50mA); OFF Current(Leakage current)0.5mA max |
||
|
Response Frequency |
1kHz min(The average value is 3kHz) |
|
|
Ambient Illumination |
On the surface of the receiver Fluorescent lamp: 1000lx |
|
|
Ambient Temperature |
Operating: -25 to +55℃; Storage: -30 to +80℃(With no icing or condensation) |
|
|
Ambient Humidity |
Operating: 5 to 85%RH; Storage: 5 to 95%RH(With no icing or condensation) |
|
|
Vibration |
Durable |
20 to 2000Hz(Maximum acceleration 100m/s²) 1.5-mm up and down amplitude for 2h (4-mm periods) each in X, Y, and Z directions |
|
Shock |
Durable |
500m/s² for 3 times each in X, Y, and Z directions |
|
Protective Structure |
IP50 IEC60529 Specification(Plug-in type); IP67 IEC60529 Specification(Plug-in relay type) |
|
|
Connecting Method |
Plug-in type(Direct solderable); Lead-out type (standard Cable length 1m); Plug-in relay type(standard Cable length 0.1m) |
|
|
Material |
Case |
Polybutylene Terephthalate(PBT) |
|
Cover Light Casting Section/Light Receiving Section |
Polycarbonate |
|
