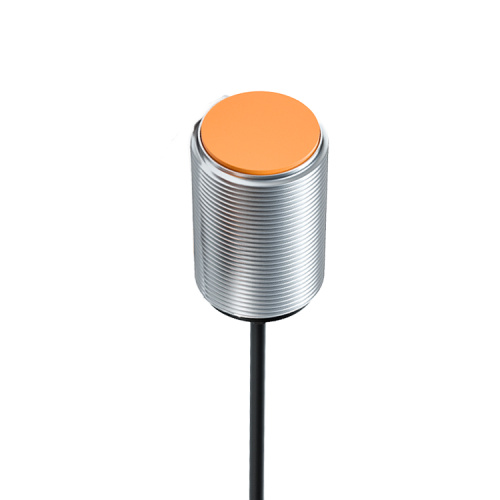

Cylindrical Proximity Sensor SE-M30TN1/M30TP1
-
$18.00≥1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | L/C,T/T |
|---|
Proximity Sensor SE-M30TN1/M30TP1 (Cylindrical Proximity Switch Sensors & DC 3-Wire Shielded Sensors)
- Proximity sensors are used for the purpose of controlling the on/off of a switch by using the sensitive characteristics of the proximity sensor to the approaching object.
- Operating, Storage: 35 to 95%RH
- Operating: -25 to +70℃, Storage: -40 to +85℃(With no icing)
- 1000m/s² for 10 times each in X, Y, and Z directions
-
At present, the main products are: safety light curtain, photoelectric switch series, proximity switch series, optical fiber sensor series, ultrasonic sensor, intelligent sensor, displacement sensor, gas pressure sensor, etc. Look forward to your cooperation!
|
Size |
M8 |
M12 |
M18 |
M30 |
|
|
Model |
SE-M8T□□ |
SE-M12T□□ |
SE-M18T□□ |
SE-M30T□□ |
|
|
Maximum Sensing Distance |
1.5mm±15% |
2.0mm±15% |
5mm±15% |
10mm±15% |
|
|
Stable Sensing Distance |
0-1.2mm |
0-1.6mm |
0-4mm |
0-8mm |
|
|
Differential Travel |
10% max of the sensing distance |
||||
|
Standard Sensing Object |
Iron: 8*8*1mm |
Iron: 12*12*1mm |
Iron: 18*18*1mm |
Iron: 30*30*1mm |
|
|
Power Supply Voltage |
12 to 24V DC Pulse (p-p) 10% max |
||||
|
Current Consumption |
13mA max |
||||
|
Switching Capacity |
100mA max |
||||
|
Differential Travel Frequency |
2kHz |
1.5kHz |
0.6kHz |
0.4kHz |
|
|
Circuit Protection |
Reverse connection, surge absorption, load short circuit protection |
||||
|
Working Status Indicator |
Action display(Red LED) |
||||
|
Ambient Temperature |
Operating: -25 to +70℃, Storage: -40 to +85℃(With no icing) |
||||
|
Ambient Humidity |
Operating, Storage: 35 to 95%RH |
||||
|
Residual Voltage |
2V max(Load: 200mA, cable length: 2m) |
||||
|
Insulating Resistance |
50M Ωmax.(DC500V) Between current-carrying parts and case |
||||
|
Voltage Withstand |
AC 1000V 50/60Hz 1min Between current-carrying parts and case |
||||
|
Vibration |
Durable |
10 to 55Hz Complex Amplitude 1.5mm each in X, Y, and Z directions 2h |
|||
|
Shock |
Durable |
500m/s² each in X, Y, and Z directions 10 times |
1000m/s² for 10 times each in X, Y, and Z directions |
||
|
Protective Structure |
IEC Specification IP67 |
||||
|
Material |
Case |
Brass |
|||
|
Sensing surface |
PBT |
||||
|
Quality |
Approx: 55g |
Approx: 65g |
Approx: 140g |
Approx: 190g |
|
|
Accessories |
Two nuts, one toothed spacer |
||||
