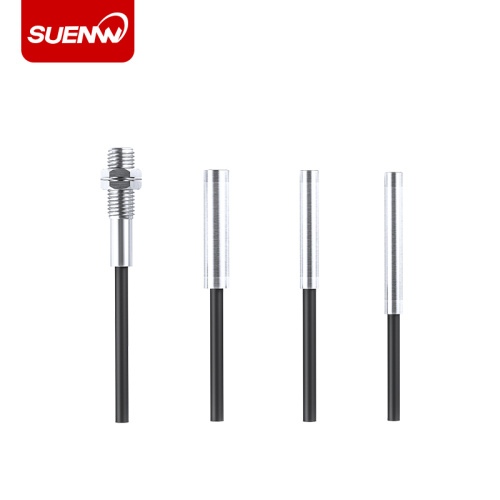

Cylindrical Proximity Sensor SE-CM4TN1/CM4TP1
-
$13.00≥1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | L/C,T/T |
|---|
Proximity Sensor SE-CM4TN1/CM4TP1 (Cylindrical Proximity Sensors Switch & Lead-Out Proximity Sensors Switch)
- The changes in vibration and damping of the proximity sensor's vibrator are processed by a back-end amplifier circuit and converted into a switching signal that triggers the drive control device, thus achieving the non-contact detection of the proximity sensor. This is the principle of operation of proximity sensors.
-
At present, the main products are: safety light curtain, photoelectric switch series, proximity switch series, optical fiber sensor series, ultrasonic sensor, intelligent sensor, displacement sensor, gas pressure sensor, etc. Look forward to your cooperation!
|
Size |
∅3.8 |
∅4 |
∅5.4 |
M5 |
|
|
Model |
SE-CM3T□□ |
SE-CM4T□□ |
SE-CM5T□□ |
SE-M5T□□ |
|
|
Maximum Sensing Distance |
0.8mm±15% |
0.8mm±15% |
1mm±15% |
1mm±15% |
|
|
Stable Sensing Distance |
0-0.6mm |
0-0.5mm |
0-0.7mm |
0-0.7mm |
|
|
Differential Travel |
15% max of the sensing distance |
||||
|
Standard Sensing Object |
Iron: 5*5*1mm |
||||
|
Power Supply Voltage |
12 to 24V DC Pulse (p-p) 10% max |
||||
|
Current Consumption |
15mA max |
17mA max |
|||
|
Switching Capacity |
50mA max |
Open collector output(DC 30V) |
|||
|
Differential Travel Frequency |
1kHz |
3kHz |
|||
|
Circuit Protection |
- |
Reverse connection, surge absorption |
|||
|
Working Status Indicator |
Action display(Red LED) |
||||
|
Ambient Temperature |
Operating: -25 to +70℃, Storage: -40 to +85℃(With no icing) |
||||
|
Ambient Humidity |
Operating, Storage: 35 to 95%RH |
||||
|
Residual Voltage |
2V max(Load: 100mA, cable length: 2m) |
||||
|
Insulating Resistance |
50M Ωmax.(DC500V) Between current-carrying parts and case |
||||
|
Voltage Withstand |
AC 500V 50/60Hz 1min Between current-carrying parts and case |
||||
|
Vibration |
Durable |
10 to 55Hz Complex Amplitude 1.5mm each in X, Y, and Z directions 2h |
|||
|
Shock |
Durable |
500m/s² for 10 times each in X, Y, and Z directions |
|||
|
Protective Structure |
IEC Specification IP67 |
||||
|
Material |
Case |
Stainless Steel |
Brass |
||
|
Sensing Surface |
TPX |
Heat resistance |
|||
|
Quality |
Approx: 30g |
||||
|
Accessories |
- |
Two nuts, one toothed spacer |
|||
