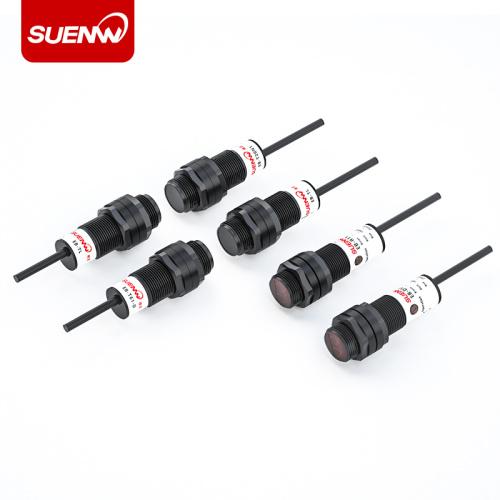

Cylindrical Photoelectric Sensor EB-D12/D32

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C,T/T

Product Description

Threaded Column Photoelectric Sensor EB-D12/D32(Photosensor Sensor)

Photoelectric switch (photoelectric sensor) is used to detect the presence or absence of an object by using the blocking or reflection of the light beam by the detected object, and by selecting the circuit by the synchronous circuit.
At present, the main products are: safety light curtain, photoelectric switch series, proximity switch series, optical fiber sensor series, ultrasonic sensor, intelligent sensor, displacement sensor, gas pressure sensor, etc. Look forward to your cooperation!

Product Model		EB-T□□	EB-R□□	EB-D□1	EB-D□2
Sensing Distance		5m	4m	100mm	300mm
Standard Sensing Object		Opaque objects: 56mm min		White paper: 100×100mm
Power Supply Voltage		12 to 24V DC Pulse (P-P)±10% max
Current Consumption		45mA max	25mA max
Differential Travel		-		20% max of the Sensing Distance
Response Time		1.0ms max
Sensitivity Adjustment		-			Equipped
Control Output		Load power supply voltage: 26.4V DC max
		Load power current: 100mA max.(Residual voltage: 1Vmax)
Light Source (Luminous Wavelength)		Infrared Emitting Diode
Ambient Illumination		3,000 lx max. with incandescent light On the surface of the receiver
Ambient Temperature		Operating: -25 to +55℃; Storage: -30 to +70℃(With no icing or condensation)
Ambient Humidity		Operating: 45 to 85%RH; Storage: 35 to 95%RH(With no condensation)
Insulating Resistance		20MΩ min(DC500V)
Voltage Withstand		AC1000V 50/60Hz 1min
Vibration		10 to 55Hz 1.5-mm dual amplitude for 2h each in X, Y, and Z directions
Shock	Durable	500m/s² for 3 times each in X, Y, and Z directions
Protective Structure		IEC-60529 IP66
Material	Case	ABS
	Sensing Surface	Acrylic Resin
Quality		Approx: 170g	Approx: 85g
Accessories		Nuts	Nuts, Reflector
