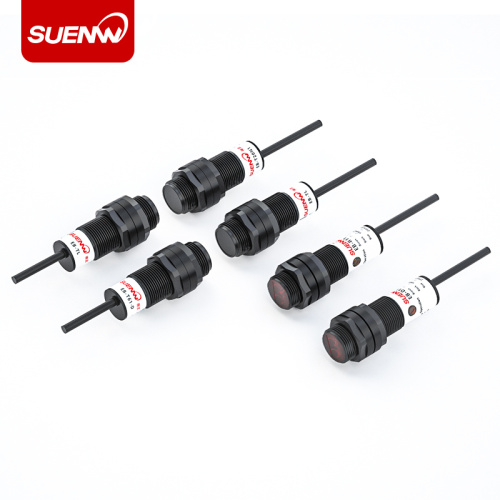

Cylindrical Photoelectric Sensor EB-T11/T31 (Photosensor Sensor / Through-Beam Cylindrical Sensor Switch)
- Photoelectric sensor with proximity sensor appearance. The photoelectric sensor converts the input current on the transmitter into a light signal shot out, the receiver then detects the target object according to the strength or absence of the light received.
- At present, the main products are: safety light curtain, photoelectric switch series, proximity switch series, optical fiber sensor series, ultrasonic sensor, intelligent sensor, displacement sensor, gas pressure sensor, etc. Look forward to your cooperation!
|
Product Model |
EB-T□□ |
EB-R□□ |
EB-D□1 |
EB-D□2 |
|
|
Sensing Distance |
5m |
4m |
100mm |
300mm |
|
|
Standard Sensing Object |
Opaque objects: 56mm min |
White paper: 100×100mm |
|||
|
Power Supply Voltage |
12 to 24V DC Pulse (P-P)±10% max |
||||
|
Current Consumption |
45mA max |
25mA max |
|||
|
Differential Travel |
- |
20% max of the Sensing Distance |
|||
|
Response Time |
1.0ms max |
||||
|
Sensitivity Adjustment |
- |
Equipped |
|||
|
Control Output |
Load power supply voltage: 26.4V DC max |
||||
|
Load power current: 100mA max.(Residual voltage: 1Vmax) |
|||||
|
Light Source (Luminous Wavelength) |
Infrared Emitting Diode |
||||
|
Ambient Illumination |
3,000 lx max. with incandescent light On the surface of the receiver |
||||
|
Ambient Temperature |
Operating: -25 to +55℃; Storage: -30 to +70℃(With no icing or condensation) |
||||
|
Ambient Humidity |
Operating: 45 to 85%RH; Storage: 35 to 95%RH(With no condensation) |
||||
|
Insulating Resistance |
20MΩ min(DC500V) |
||||
|
Voltage Withstand |
AC1000V 50/60Hz 1min |
||||
|
Vibration |
10 to 55Hz 1.5-mm dual amplitude for 2h each in X, Y, and Z directions |
||||
|
Shock |
Durable |
500m/s² for 3 times each in X, Y, and Z directions |
|||
|
Protective Structure |
IEC-60529 IP66 |
||||
|
Material |
Case |
ABS |
|||
|
Sensing Surface |
Acrylic Resin |
||||
|
Quality |
Approx: 170g |
Approx: 85g |
|||
|
Accessories |
Nuts |
Nuts, Reflector |
|||
