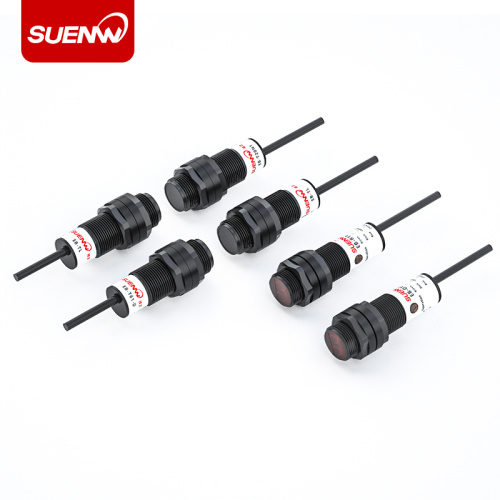

Cylindrical Photoelectric Sensor EB-T61/T81
-
$14.00≥1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | L/C,T/T |
|---|
EB-T61/T81 Threaded column photoelectric sensors (Photosensor Sensor)
- Adopt new type of photoelectric IC, stronger anti-interference performance.
- This new type of photoelectric switch has been used in many fields such as crop level detection, liquid level control, product counting, width discrimination, speed detection, fixed length shearing, hole identification, signal delay, automatic door sensing, colour code detection, punching and shearing machines and safety protection.
-
At present, the main products are: safety light curtain, photoelectric switch series, proximity switch series, optical fiber sensor series, ultrasonic sensor, intelligent sensor, displacement sensor, gas pressure sensor, etc. Look forward to your cooperation!
Product Model
EB-T□□
EB-R□□
EB-D□1
EB-D□2
Sensing Distance
5m
4m
100mm
300mm
Standard Sensing Object
Opaque objects: 56mm min
White paper: 100×100mm
Power Supply Voltage
12 to 24V DC Pulse (P-P)±10% max
Current Consumption
45mA max
25mA max
Differential Travel
-
20% max of the Sensing Distance
Response Time
1.0ms max
Sensitivity Adjustment
-
Equipped
Control Output
Load power supply voltage: 26.4V DC max
Load power current: 100mA max.(Residual voltage: 1Vmax)
Light Source (Luminous Wavelength)
Infrared Emitting Diode
Ambient Illumination
3,000 lx max. with incandescent light On the surface of the receiver
Ambient Temperature
Operating: -25 to +55℃; Storage: -30 to +70℃(With no icing or condensation)
Ambient Humidity
Operating: 45 to 85%RH; Storage: 35 to 95%RH(With no condensation)
Insulating Resistance
20MΩ min(DC500V)
Voltage Withstand
AC1000V 50/60Hz 1min
Vibration
10 to 55Hz 1.5-mm dual amplitude for 2h each in X, Y, and Z directions
Shock
Durable
500m/s² for 3 times each in X, Y, and Z directions
Protective Structure
IEC-60529 IP66
Material
Case
ABS
Sensing Surface
Acrylic Resin
Quality
Approx: 170g
Approx: 85g
Accessories
Nuts
Nuts, Reflector
