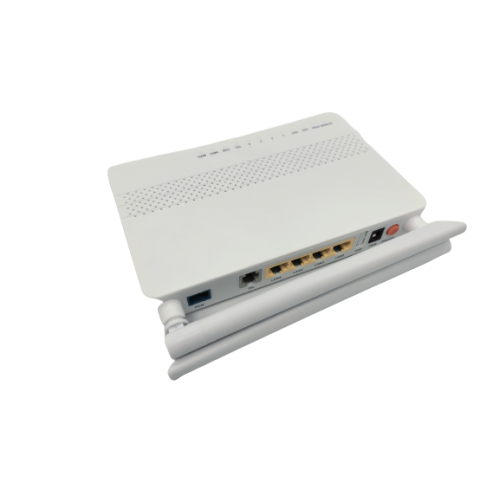

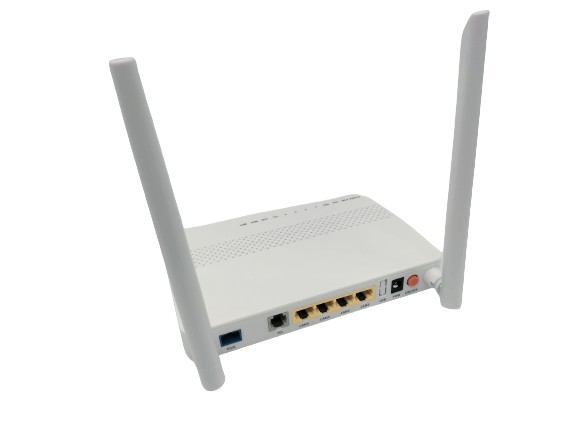

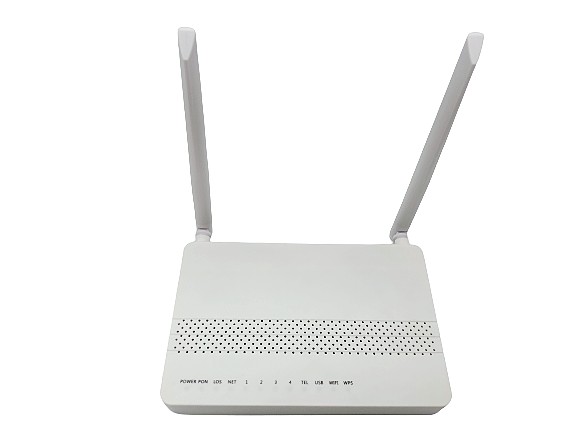

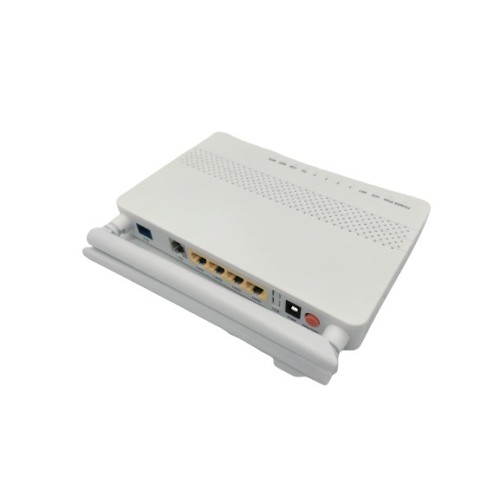

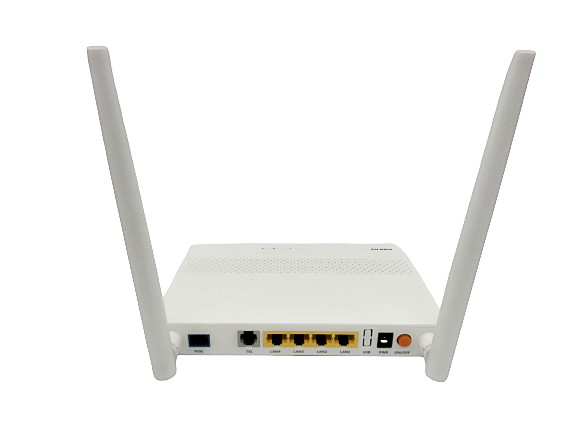

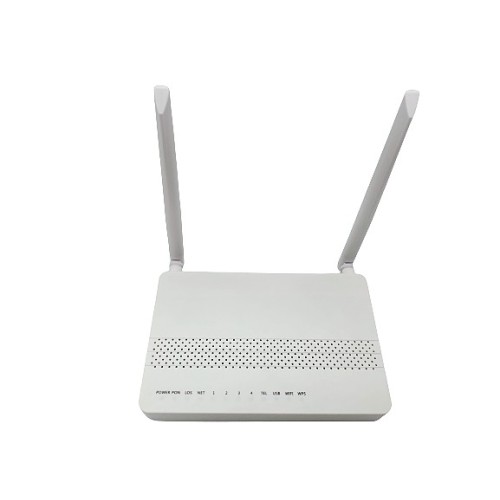

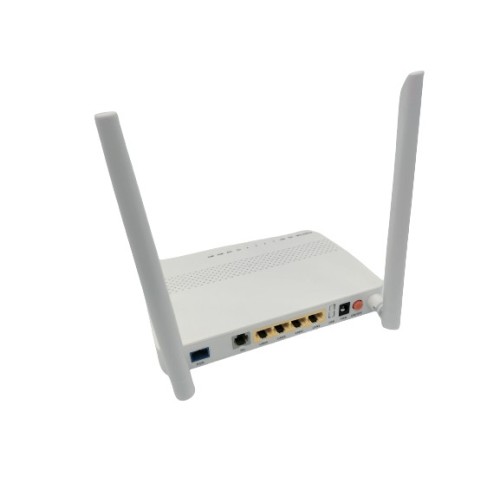

XPON 1GE 3FE 1POTS USB WIFI ONU

$15.00

10-99 Piece/Pieces
$14.00

100-499 Piece/Pieces
$12.00

≥500 Piece/Pieces

Transportation:: Ocean, Land, Air, Express, others

Port:: SHEKOU, YANTIAN, SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	5000/Month
Supply Ability:	5000/Month
Payment Type:	T/T
Incoterm:	EXW,FOB
Certificate:	CE,ROHS,3C
HS Code:	8517622990
Transportation:	Ocean,Land,Air,Express,others
Port:	SHEKOU,YANTIAN,SHENZHEN

Product Description

XPON 1GE 3FE 1POTS USB WIFI ONU consists of the following parts:

1. XPON interface: used to connect optical fiber network to achieve high-speed broadband access.
2. 1 GE interface: used to connect computers, routers and other devices to achieve wired network access.
3. 3 FE interfaces: used to connect other wired devices, such as TV, telephone, etc.
4. 1 POTS interface: used to connect ordinary telephones to realize voice communication.
5. USB interface: used to connect USB devices, such as printers, storage devices, etc.
6. WIFI function: built-in wireless router, can realize wireless network access, convenient for users.
The above parts make up the XPON 1GE 3FE 1POTS USB WIFI ONU, which can meet the user's various needs for high-speed broadband, wired network, voice communication, USB devices and wireless network.

Single Band Onu Jpg

Product Description:

GEPON 1GE+3FE+1POTS+WiFi+USB ONU meets telecom operators FTTO (office), FTTD (Desk), FTTH(Home) broadband speed, SOHO broadband access, video surveillance and other requirements and design a EPON/GPON Gigabit Ethernet products. The box is based on the mature Gigabit EPON/GPON technology, highly reliable and easy to maintain, with guaranteed QOS for different service. And it is fully compliant with technical regulations such as ITU-T G.984.x and IEEE802.3ah.

Xpon Pots Onu Jpg

Technical Parameters:

Technical item	1GE+3FE+1POTS+WiFi+USB
PON interface	1 E/GPON port(EPON PX20+ and GPON Class B+) Wavelength:Tx1310nm,Rx 1490nm SC/UPC connector Receiving saturation:≥-8dBm Receiving sensitivity: ≤-28dBm Transmitting optical power: 0~+4dBm Transmission distance: 20KM
LAN interface	1 x 10/100/1000Mbps and 3 x 10/100Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector
Wireless	Compliant with IEEE802.11b/g/n Operating frequency: 2.400-2.4835GHz support MIMO, rate up to 300Mbps 2T2R,2 external antenna 5dBi Support: multiple SSID Channel:13 Modulation type: DSSS、CCK and OFDM Encoding scheme: BPSK、QPSK、16QAM and 64QAM
POTS interface	1 FXS, RJ11 connector Support: G.711/G.723/G.726/G.729 codec Support: T.30/T.38/G.711 Fax mode, DTMF Relay Line testing according to GR-909
USB interface	USB 2.0
LED	13, For Status of PWR、PON 、LOS、WAN、WiFi、FXS、ETH1~4、WPS、USB.
Operating condition	Temperature: 0℃～+50℃ Humidity: 5%～90%（non-condensing）
Storing condition	Temperature : -30℃～+75℃ Humidity :5%～90%（non-condensing）
Power supply	DC 12V,1/1.5A
Power consumption	≤10W
Dimension	205mm×140mm×37mm（L×W×H）
Net weight	0.34Kg
