Ftth Dual Band 2.5G Fiber Optic Equipment Xpon

The Power of XPON ONU Technology
1GE+3FE+1POTS WIFI GEPON ONU, although EPON and GPON have their own different technologies, they have the same network topology and similar network management structure, and they are both oriented to the same optical access network applications, which are not incompatible.  At the same time, the XPON system provides a unified network management platform that can manage various business requirements, realize full-service support capabilities with strict QoS guarantee, and support downlink cable TV transmission through WDM; at the same time, it can automatically identify EPON and GPON access cards to join, truly compatible at the same time EPON and GPON networks.

Product Overview：

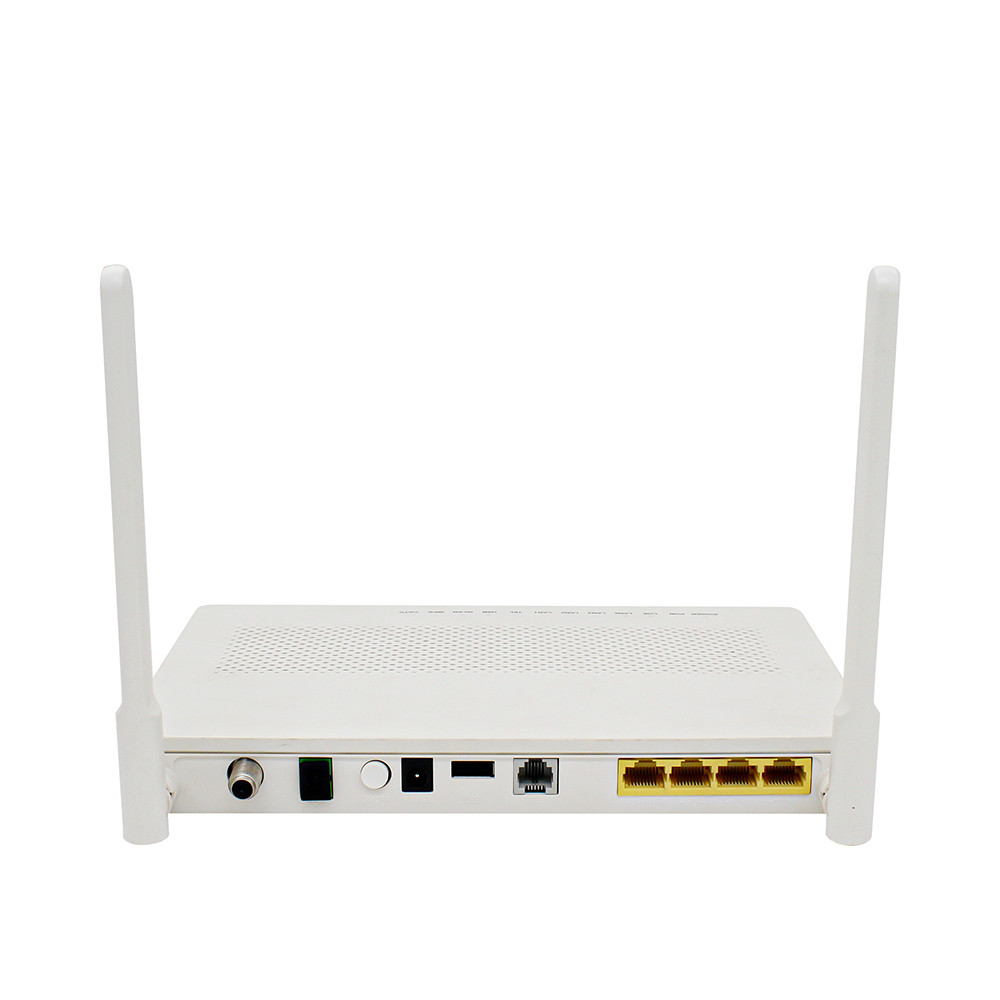

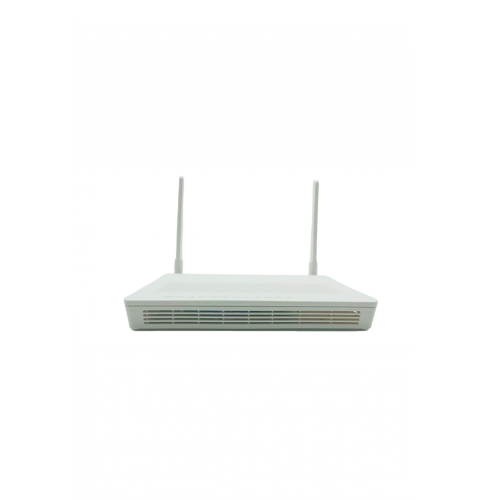

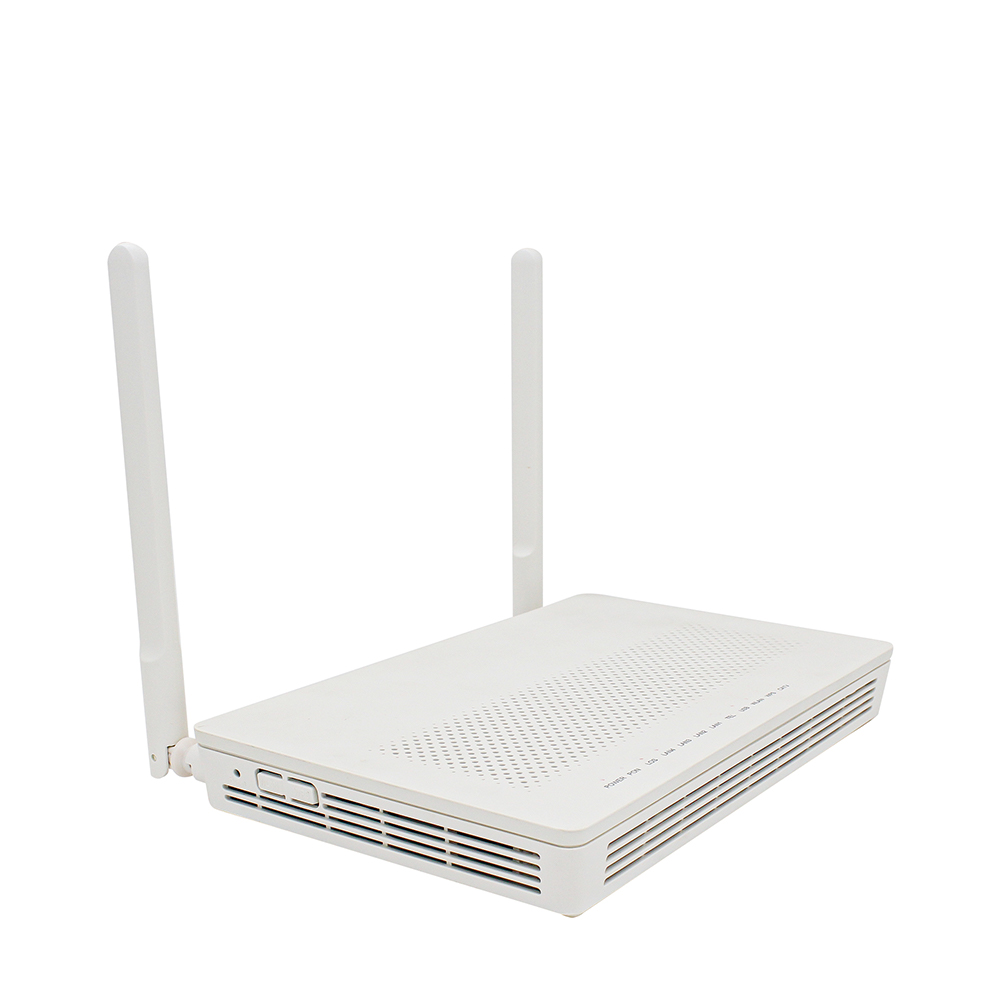

GL-GE8004U-HCZ is an ONT device terminal in the XPON system. In conjunction with OLT, ONT can provide a variety of broadband services to connected users, such as Internet, VoIP, IPTV, Video Conference and other services. Based on mature, stable and cost-effective XPON technology, it provides one PON interface, one 1000M electrical interfaces and there 100Melectrical interfaces, one USB interface. Single fiber wavelength division multiplexing (downlink 1490nm, uplink 1310nm) is adopted, only one fiber is needed to connect with OLT, and the maximum transmission distance is up to 20km, which supports power outage report function and local WEB management function.

Product Features：

1. GEPON ONU product form, supporting bridge and NAT mode;

2. BOB product process;

3.802.11B /g/n wireless access;

4.2*5dBi external dual antenna is used wirelessly.

5. USB interface supports configuration saving and recovery;

6.Provide a VOIP interface to connect the ordinary telephone;

7.12V /1.0A External power supply.

8.one CATV interface.

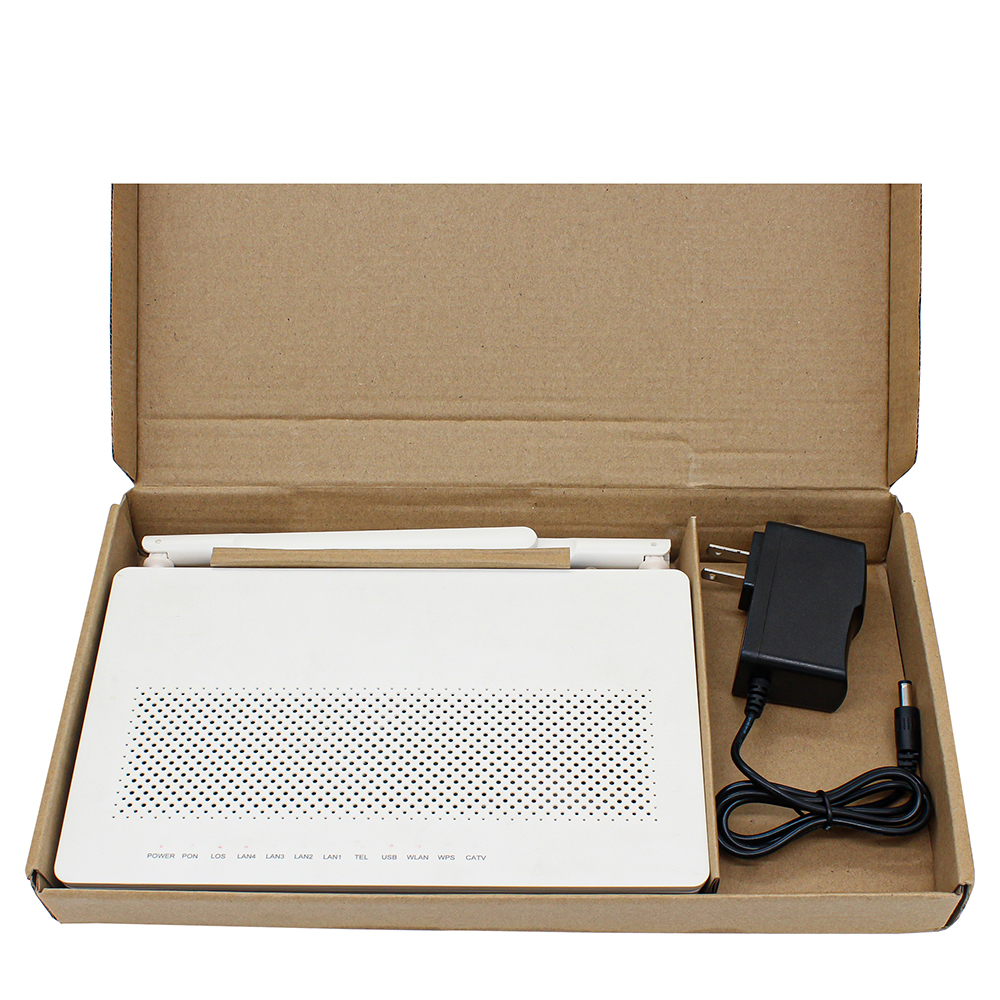

Packaging Details:
