XPON 1GE 3FE 1POTS USB CATV WIFI ONU

Huawei HG8546M

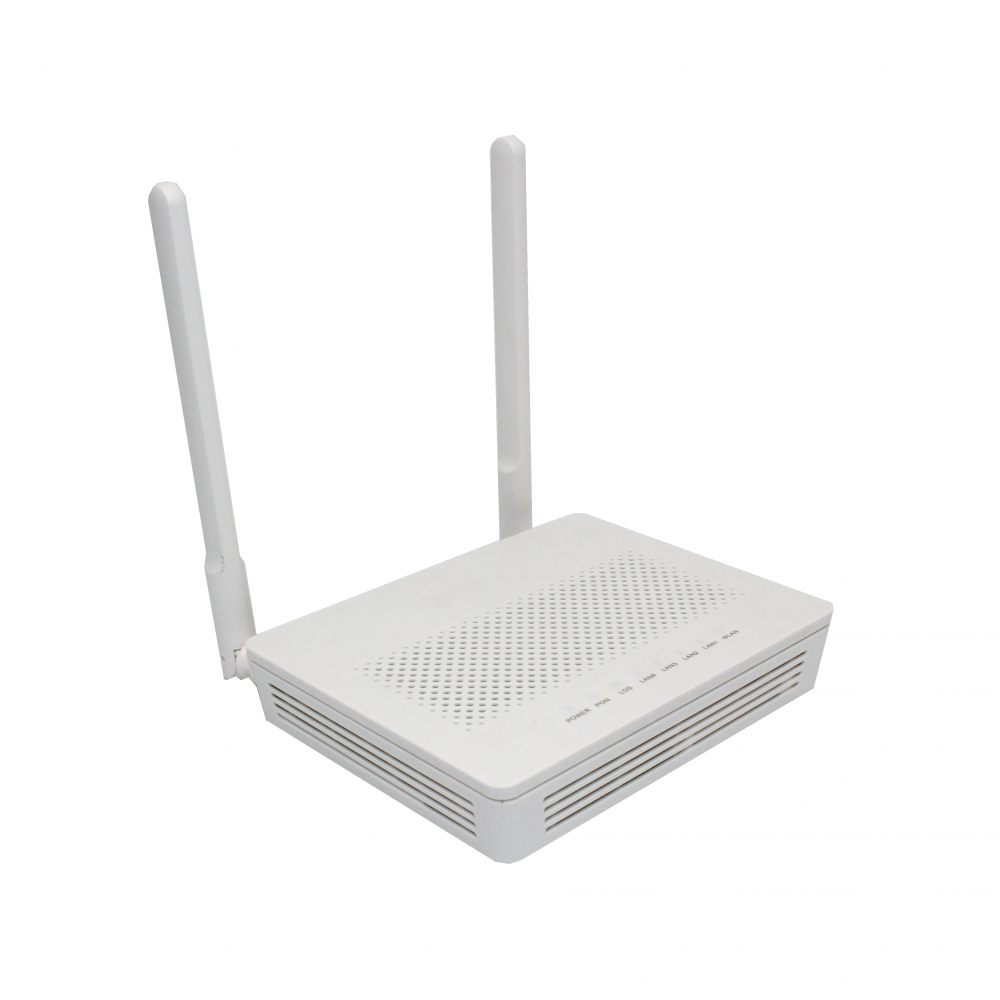

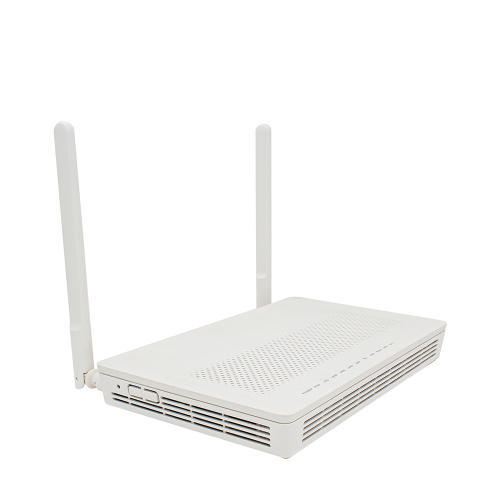

Huawei Echo Life HG8546M ONT 1GE+3FE+POTS+1USB+WiFi is an optical network terminal (ONT),is a high-end home gateway in Huawei FTTH solution.By using the GPON technology,ultra-broadband access is provided for home and SOHO users.The HG8546M provides one POTS ports,four Ethernet ports and one WiFi port.Our model XPON WIFI ONU 1GE+3FE+WIFI+1POTS+USB,it is similar than Huawei HG8546M,but not for Huawei original brand.It with Huawei chipset and same ports like HG8546M.

Product Overview:

GE8004U-HZ is an ONT device terminal in the XPON system. In conjunction with OLT,ONT can provide a variety of broadband services to connected users, such as Internet,VoIP,IPTV,Video Conference and other services.Based on mature,stable and cost-effective XPON technology,it provides one PON interface,one 1000M electrical interfaces and there 100Melectrical interfaces,one USB interface.Single fiber wavelength division multiplexing (downlink 1490nm,uplink 1310nm) is adopted,only one fiber is needed to connect with OLT,and the maximum transmission distance is up to 20km,which supports power outage report function and local WEB management function.

Product Interface:

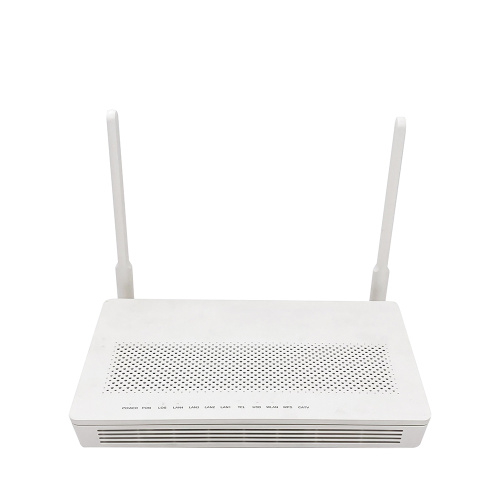

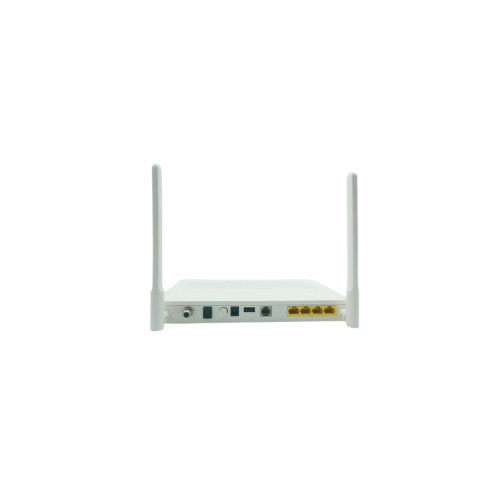

Interface:optical port,voice port,network port 1- network port 4,power socket,power switching.；Indicator Light:WPS,wireless, USB,Telephone,network port 1-4,Optical signal,PON registration,power supply.

• Port Features:

>1 PON ports (1.25G)；>1 10/100/1000M port；>3 10/100M port；>1 voice port；>1 USB port

• Physical Features:

>Power supply: 12VDC；>Power consumption: 7W；>Working temperature: 0～55℃；>Storage temperature: -30～60℃；>Relative humidity: 10～90% (non-condensing)

• Product Feature:

1. HGU ONU product form, supporting bridge and NAT mode;

2. BOB product process;

3. 2*3dBi external dual antenna is used wirelessly.

4. USB interface supports configuration saving and recovery;

5. Provide a VOIP interface to connect the ordinary telephone;

6. 12V /1.0A External power supply.
