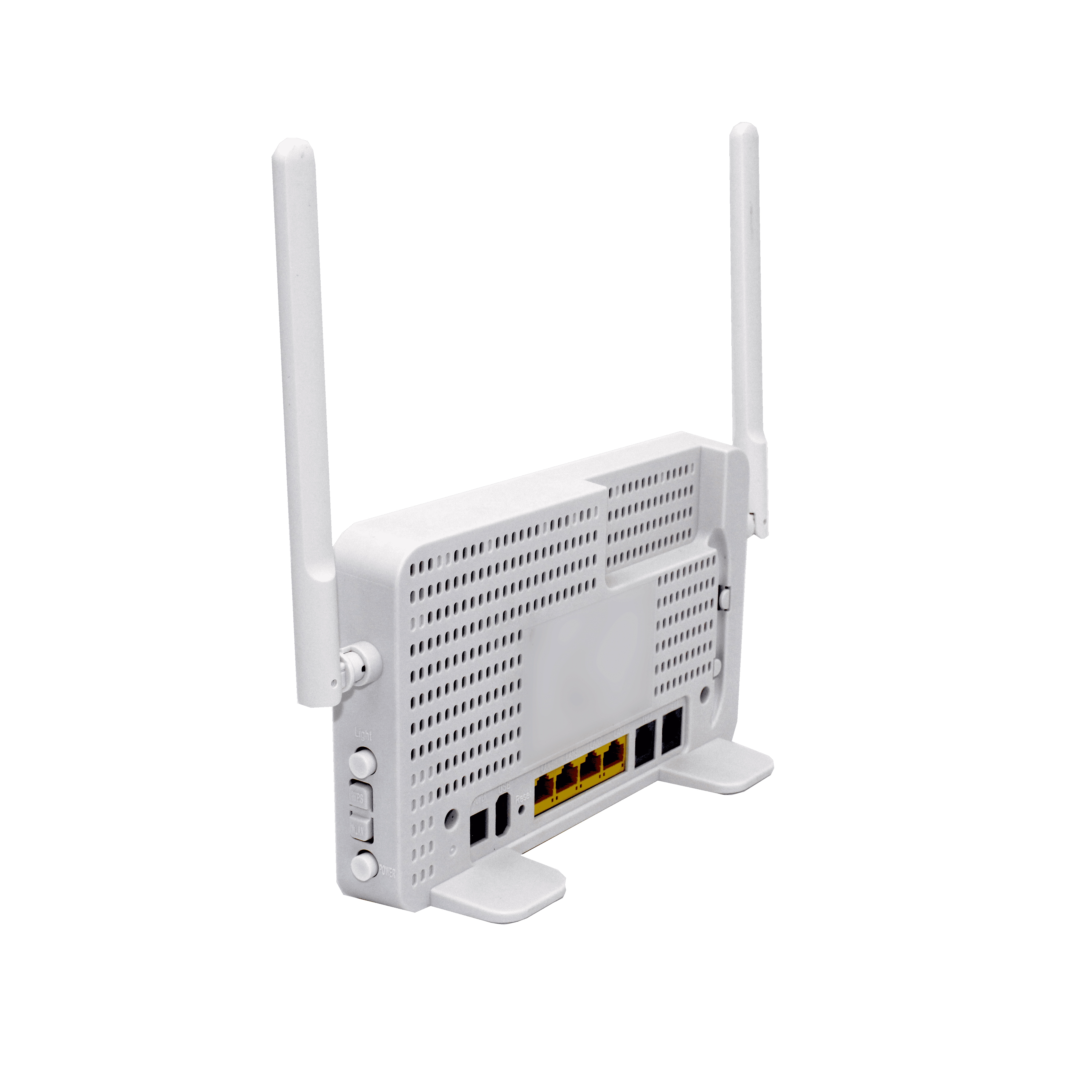

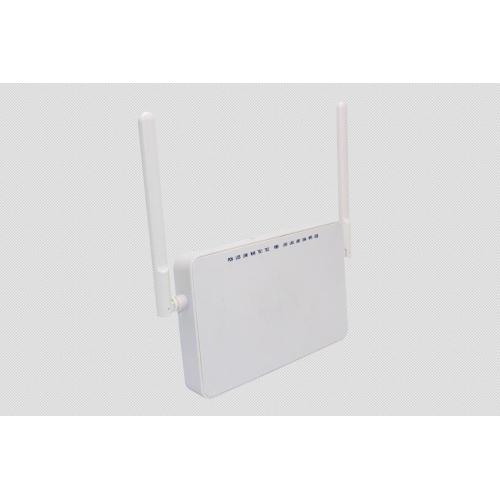

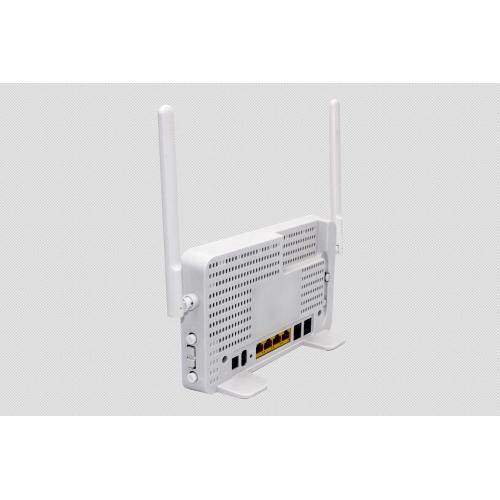

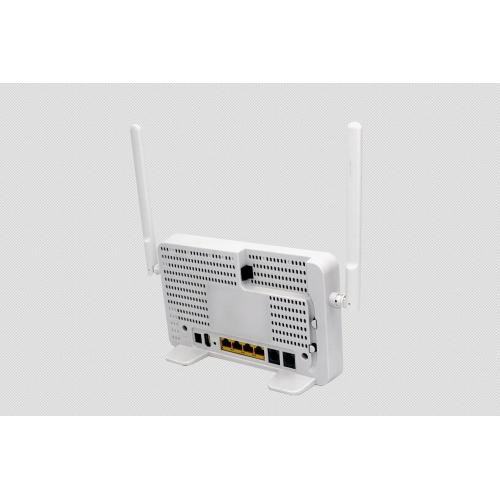

High Speed Data Service 4FE+WIFI+2POTS+USB

XPON Wifi Onu Product Overview

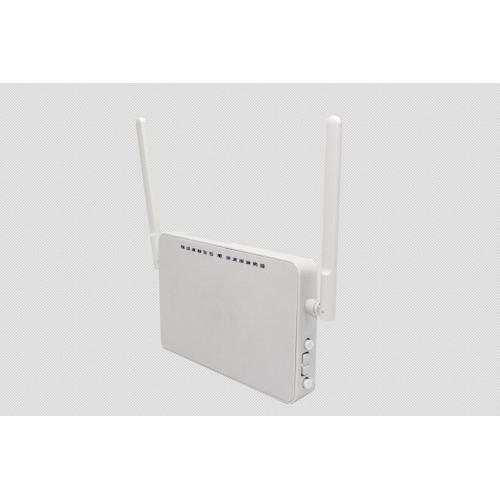

GL-GE8004U-HZF type ONU products fully comply with IEEE 802.3-2005 and the China Telecom XPON device technical specification (V2.1). It is operative, manageable and maintainable at telecommunication level, and can provide high speed data service for customers. It has a PON uplink port that connects to office end apparatus through optical fiber.

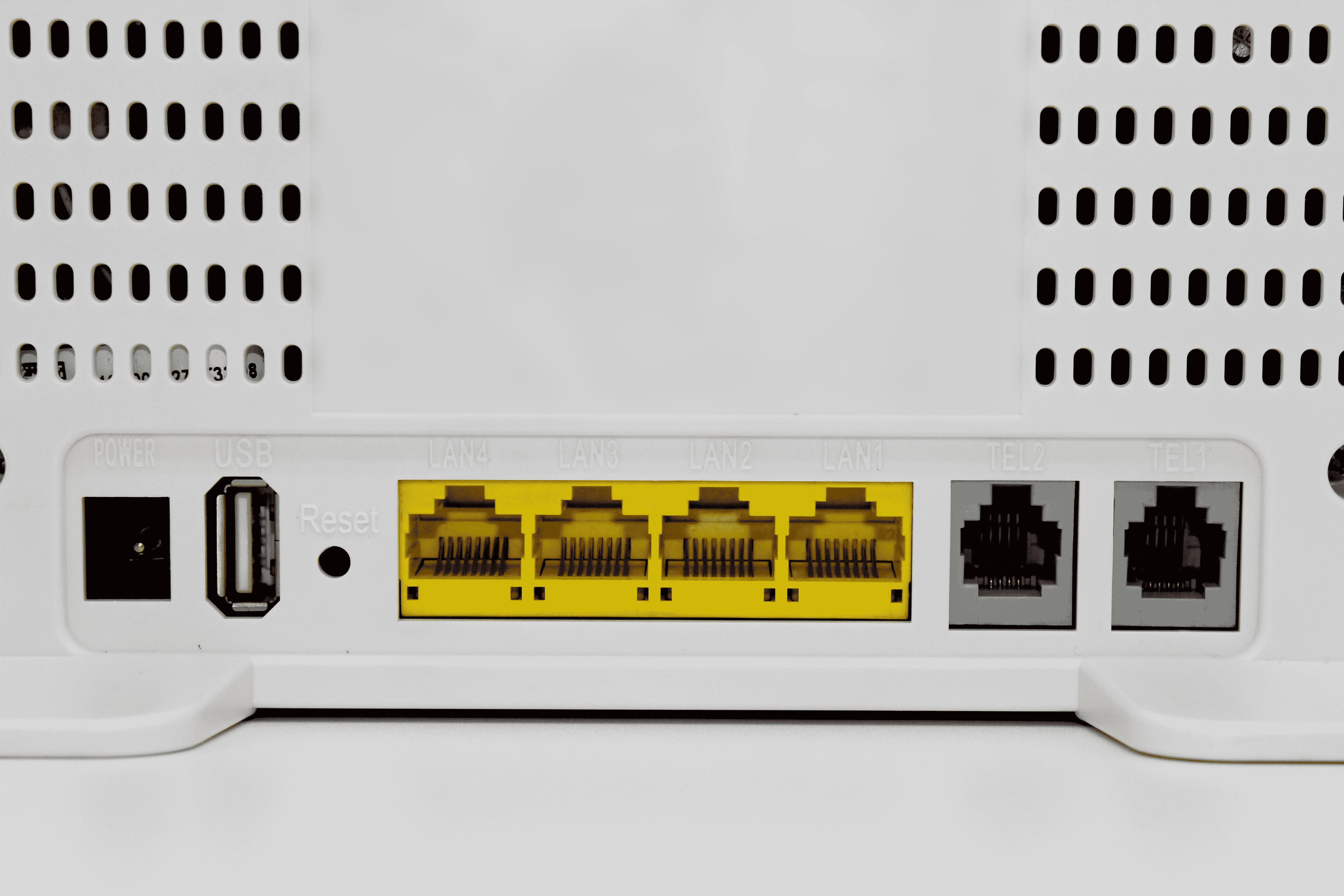

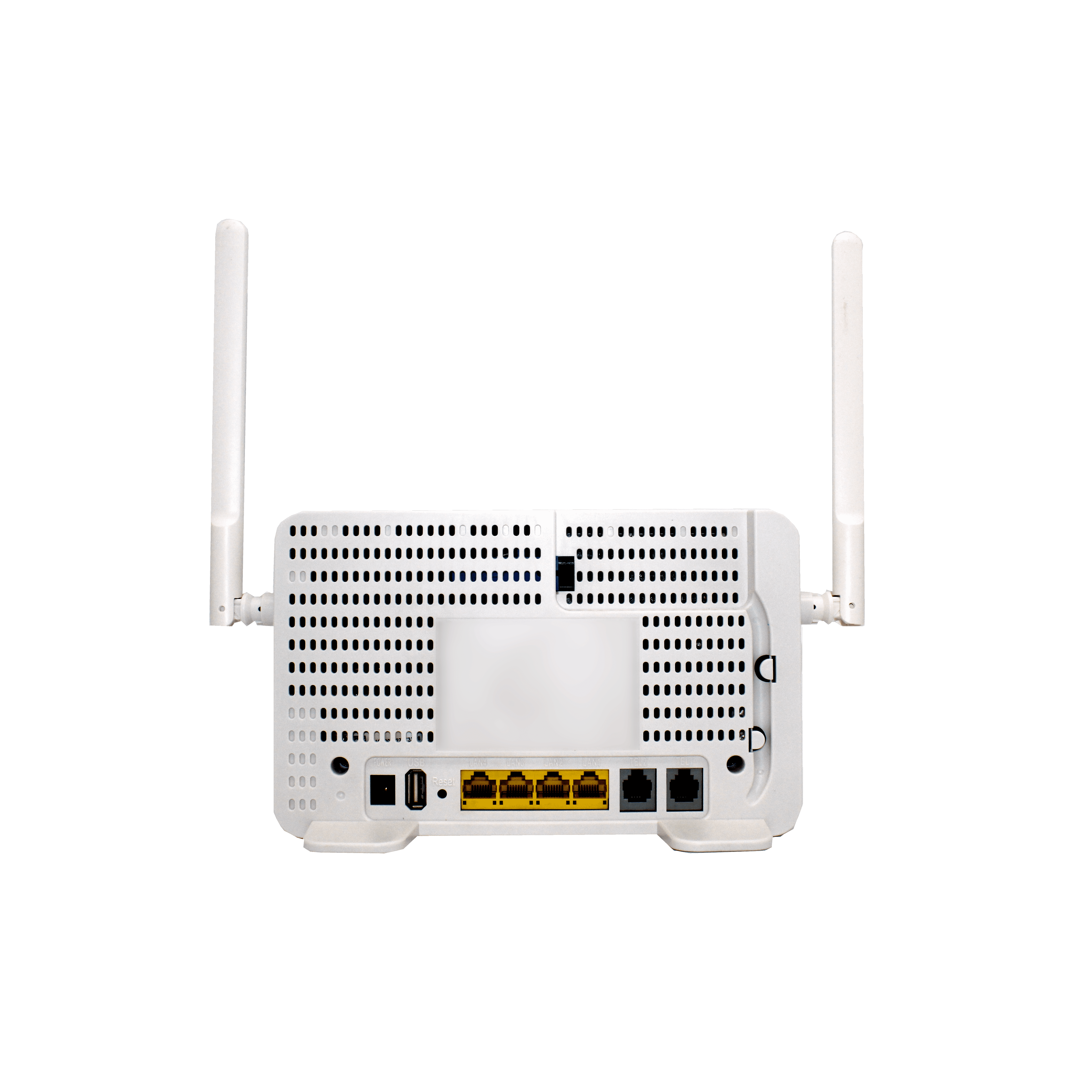

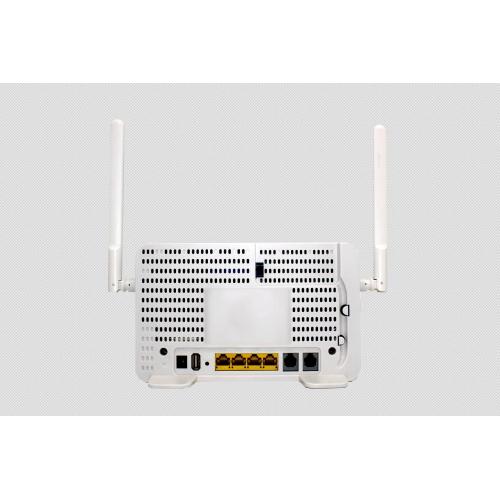

XPON ONU Interface:

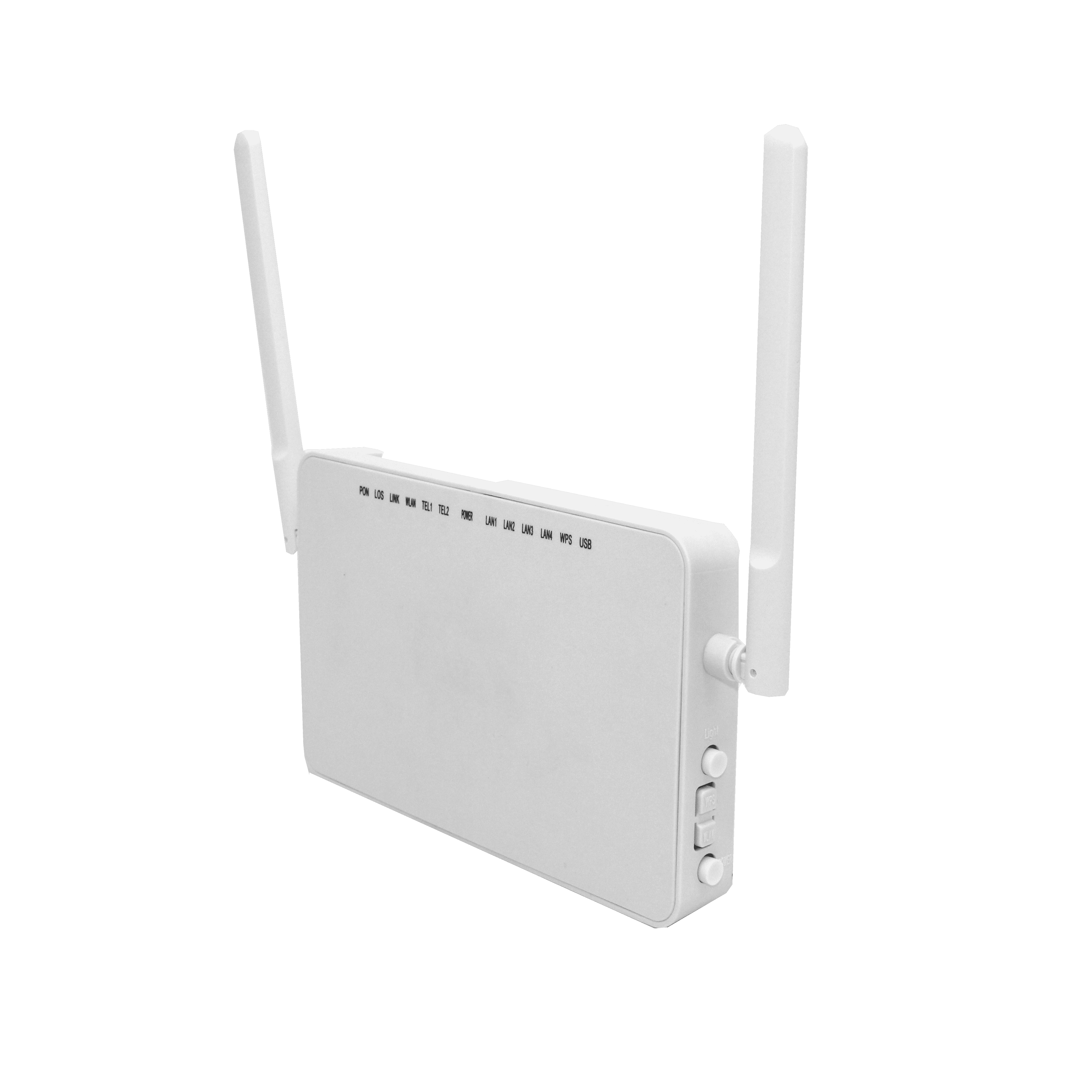

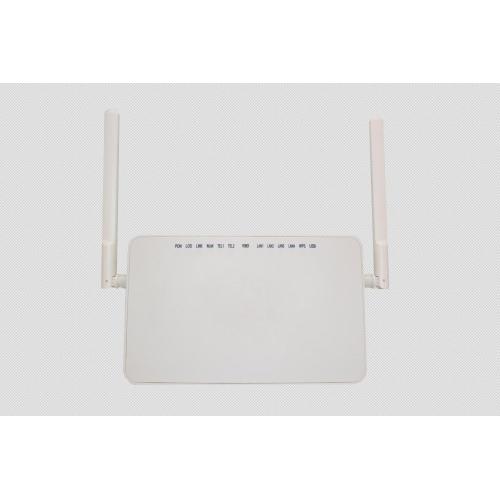

Interface:optical port,voice port 2,network port 1- network port 4,power socket, power switching;Indicator Light: WPS, wireless, USB 2, Telephone, network port 1-4, Optical signal, PON registration, power supply.

GEPON WIFI ONU Specifications:

Port Features:

1 PON ports (1.25G);4 10/100M port;2 voice port;Physical Features:Power supply: 12VDC;Power consumption: 7W;Working temperature: 0～55℃;Storage temperature:-30～60℃;Relative humidity:10～90%;Product Feature:1.HGU ONU product form,supporting bridge and NAT mode;2.BOB product process;3.802.11B /g/n wireless access;4.2*3dBi external dual antenna is used wirelessly.5.USB interface supports configuration saving and recovery;6.Provide a VOIP interface to connect the ordinary telephone;7.12V /1.0A External power supply.

VIOP Character:

Single channel option,105V most battery design;Available in either PCM/SPI or ZSI;Compact structure,84-pin 7*7mm QFN components;VOIP processor and SOCS adopt the 5th generation line interface;The voice path SDK and vp-api-ii software can implement FXS functions;Energy saving switch control structure:up to 65vrms open circuit,up to 5REN load;Two-layer PCB design,complete bandwidth BOESCHT function;Analog telephone adapter (ATAs)

Onu With Wifi Function Packing details:
