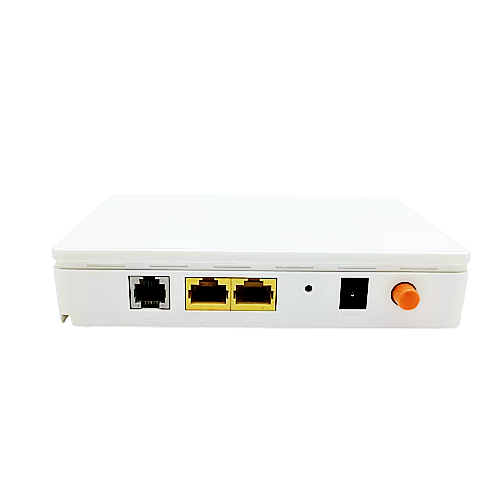

XPON 1GE+1FE+1POTS ONU with bridge and NAT mode.

Do you know about the XPON ONU.

XPON ONU (Optical Network Unit) is a type of network equipment that is used in Fiber-to-the-Home (FTTH) and Fiber-to-the-Business (FTTB) networks. It is designed to provide high-speed internet, voice, and video services to end-users. XPON ONU is a device that is installed at the customer premises and connects to the Optical Line Terminal (OLT) at the service.A feature of XPON ONU products is that they can support a variety of services, including broadband access, IPTV, VoIP, video surveillance, etc., to meet the needs of different users. At the same time, XPON ONU products can also realize flexible network topology, support point-to-point, chain, tree and other connection methods, and provide more reliable and efficient network services.

XPON ONU supports various PON (Passive Optical Network) technologies such as GPON (Gigabit PON), EPON (Ethernet PON), and XG-PON (10G PON). It offers multiple interfaces such as Ethernet, Wi-Fi, and VoIP (Voice over IP) to connect different devices such as computers, smartphones, and IP phones.

Product specifications：

PON Port：1 G/EPON Optical Interface  Single Fiber：1*SC/UPC Fiber.

Upstream： GPON:1.244Gbps    EPON:1.25Gbps.

Downstream：GPON:2.488Gbps   EPON:1.25Gbps.

Wavelength: Tx 1310nm, Rx 1490nm.

Optical Output Power: GPON:+0.5~+5dBm   EPON:-1~+4dBm.

POTS:  1 FXS, RJ11.

Power:  External DC 12V/1.5A power supply adapter.

Size:  160mm(L)*114mm(W)*29mm(H).

Weight:  <0.3Kg.

Environment:  storage Temperature：-40～85℃.
