XPON Dual Band ONU 4GE+1POTS+WIFI+2USB

Get Latest Price

Transportation:: Ocean, Land, Air

Port:: SHENZHEN, SHEKOU, YANTIAN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	50000
Supply Ability:	50000
Payment Type:	T/T
Incoterm:	FOB,CFR,CIF,EXW,FCA,CPT,CIP
Certificate:	CE,ROHS,3C
HS Code:	8517622990
Transportation:	Ocean,Land,Air
Port:	SHENZHEN,SHEKOU,YANTIAN

Product Description

What is the advantage of Dual Band?

A dual-band router, as the name suggests, is a router that works in two frequency bands. This frequency refers to the frequency of the wifi wireless signal. There are currently two frequency bands available for wifi devices, one is the 2.4G frequency band with a frequency range of 2401MHz - 2487MHz; the other is the 5G frequency band with a frequency range of 4980MHz - 5825MHz. Dual-band routers generally have two wifi, one works in the 2.4G frequency band, and the other works in the 5G frequency band. Advantages: Support the latest 802.11ac devices. Most of the current wireless routers work at 2.4G, the theoretical speed is 600Mbps of the 802.11n standard; and the theoretical speed of 5G wifi devices is 3.4Gbps of the 802.11ac standard. The theoretical transmission speed of 802.11ac is 5 times that of 802.11n. Therefore, router manufacturers have developed 802.11ac routers. However, many current notebooks, mobile phones and other products do not support 802.11ac, but 802.11n is definitely supported. Therefore, router manufacturers have introduced dual-band routers, which can support most of the current 802.11n standard Wi-Fi devices and the latest 802.11ac devices. 802.11ac is definitely a development trend, like the latest iphone6 supports 802.11ac, but iphone5s does not support, only supports 802.11n. Therefore, 5s and 6 are connected to the same dual-band router, but the Internet speed is different.

Dual Band XPON ONU, also named as 5.0G WIFI XPON ONU, 2.4G+5.0G WIFI XPON ONU, WIFI XPON ONU with 2.4G and 5.0G, XPON ONU with Dual Band, Dual Band WIFI XPON ONU, etc., is one of the most commonly applied equipment in construction of PON (Passive Optic Network).

Product Overview:

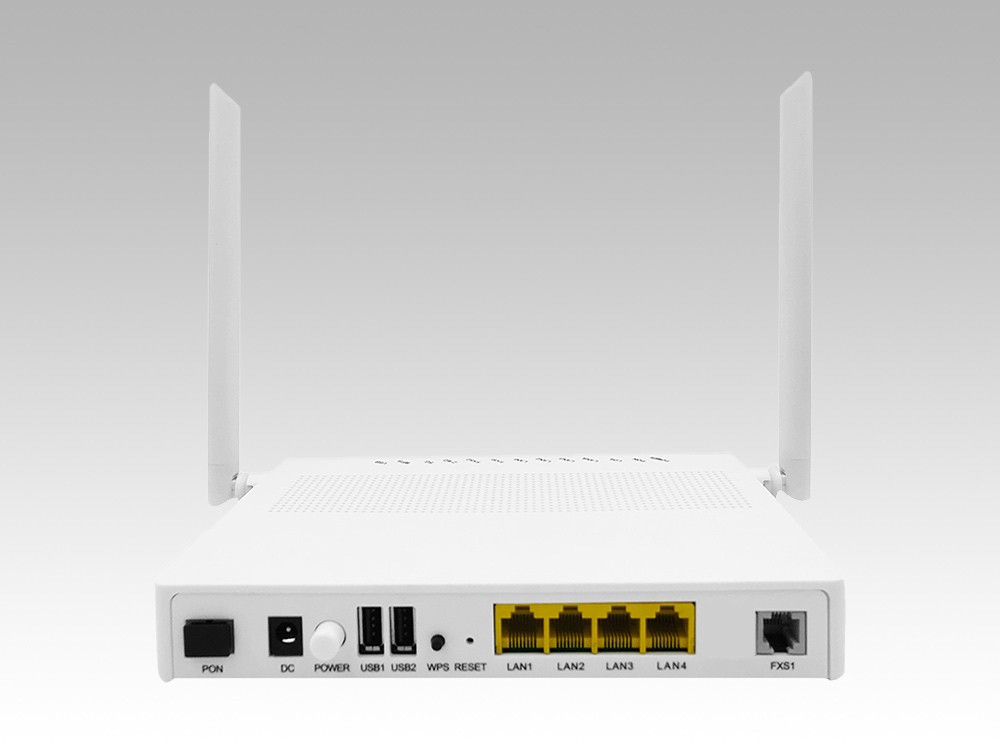

GL-X8004U-SWD is a 4ethernet port and 1 VoIP port broadband home gateway device for FTTH solution. EPON/GPON technology has been adopted to provide UWB access for Family/Enterprise’s User, Strong data processing capability, provides quality experience for the Internet, HD video and VoIP services.

Product Functional Features:

Product follow IEEE 802.3ah（EPON）、G.984（GPON）international standard，People's Republic of China communication industry standard（YD/T 1475-2006），And China Telecom PON equipment technical requirements，Good interoperability and operability.，It can achieve interconnection and interoperability with OLT equipment of the mainstream manufacturers in the industry.
Integrate 2.4G 2*2 300Mbps (802.11n) and 5G 2*2 867Mbps (802.11ac)WiFi Function，provide high-speed wireless network access for mobile devices.
Configuration is convenient plug-and-play network management can automatically distribute network business configuration can also be through the local Web page for business configuration conducive to efficient operation and maintenance.
Built in three layer routing and local gateway，provide all kinds of high level protocol data processing functions.
Customized functions software functions can be customized according to business needs help network operation and development.

Dual Band Wifi Xpon Onu

Product Specification：

PON Interface: 1 G/EPON port(EPON PX20+ and GPON ClassB+)
PON Interface: Receiving sensitivity:≤-27dBm
PON Interface: Transmitting optical power:0~+4dBm
PON Interface: Transmission distance:20KM
Wavelength: TX: 1310nm RX:1490nm
Optical Interface: SC/PC Connector
POTS interface: 1 FXS RJ11connector
POTS interface: Support: G.711/G.723/G.726/G.729codec Support: T.30/T.38/G.711 Fax mode DTMFRelay Line testing according toGR-909
LAN Interface: 4 x 10/100/1000Mbps Ethernet interfaces. Full/Half RJ45connector
Wireless: Compliant withIEEE802.11b/g/nIEEE802.AC
Wireless: Operating frequency:2.400-2.4835GHz/5GHZ
Wireless: support MIMO rate up to300Mbps/867Mbps
Wireless: 2T2R2 external antenna5dBi
Wireless: Support: multiple SSID
Wireless: Channel: Auto
Wireless: Modulation type: DSSS CCK and OFDM
LED: 12 For Status of POWER、LOS、PON、SYS、LAN1、LAN2、WIFI、WPS、Internet、FXS
