Latest WEB Management 4Ports EPON FTTX OLT

It is small scale office end OLT device of FTTX telecommunication level independently researched and developed by SmartFiber Company; it conforms to IEEE802.3-2005 standard and the technical requirement V2.1 specification for EPON device of China Telecom; it can provide user with access to comprehensive services such as broadband, voice, IPTV and CATV.It not only supports single link automatic loopback test function and powerful VLAN function, including VLAN Stacking Trunk Translation flexible QINQ, but also supports flexible and controllable multicast and IGMP snooping.

EPON OLT Product Description:

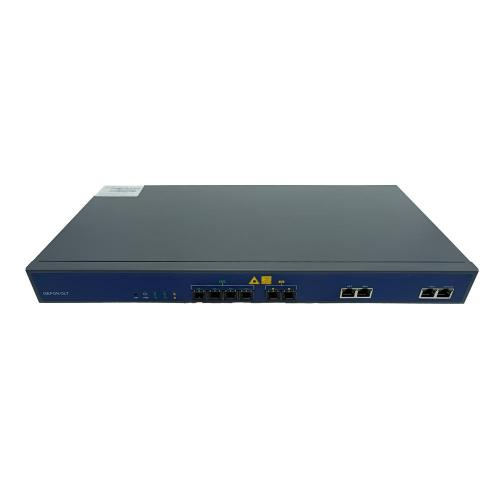

EPON 4-port OLT is a 1U rack-mounted central office device with three-layer function developed by Shenzhen GL-COM Technology Co., Ltd.in the industry.The product complies with the IEEE802.3ah standard,and complies with the Chinese CTC 2.1/3.0 standard,and is compatible with mainstream manufacturers ONU,it is convenient to construct EPON network flexibly and efficiently.It has the characteristics of dexterity,easy deployment,and high performance to meet the user's requirements for device performance and size in different environments.It also supports WEB,Telnet,and SSH to provide users with stable,efficient,and value-added network access services.The product is suitable for networks such as"three networks in one",optical fiber access of the resident network,security monitoring network,corporate LAN and other networks,with extremely high cost performance.

Network Device Olt Product Specification:

1.Case:Frame:1U 19-inch standard box;

2.1000M Uplink Port:2*10/100/1000M auto negotiation +2*SFP (Independent)slot;

3.EPON Downlink Port: 4*SFP slot;1000BASE-PX20 +;Maximum Split Ratio 1:64;

4.Management Port:1*10/100BASE-T out-of-band port + 1*CONSOLE port;

5.Transmission Distance: 20KM;

6.EPON Port Speed:Symmetrical 1.25Gbps;

7.Wavelength:TX 1490nm RX 1310nm;

8.Connector:SC/PC;

9.Fiber Type:9/125μmSMF;

10.Management Mode: SNMP,Telnet and CLI,EMS and WEB.

4 Port Olt Packing Details:
