What is OLT equipment?

OLT equipment is an important central office equipment,which can be connected to the front-end switch with a network cable to convert it into an optical signal,and use a single optical fiber to interconnect with the optical splitter on the user side;realize the control,management,and management of the ONU of the user side equipment. Ranging;and like ONU equipment,it is an integrated photoelectric equipment.The EPON network consists of three parts:OLT,ODN and ONU.The OLT belongs to the service node side equipment of the access network,and is connected to the corresponding service node equipment through the SNI interface to complete the service access of the access network.It mainly completes the upstream access of the PON network and connects to the ONU equipment through the ODN network through the PON port. Generally,1:32 or 1:64 is used to form the entire PON network.Generally,the PON port is connected to the ODN network through a single optical fiber,and the splitter is 1:n (n=2, 4, 8, 16, 32, 64, etc.),the ONU downstream adopts the broadcast mode,and the ONU equipment selectively receives.The uplink is shared.The development of PON technology has gone through the process of APON/BPON, EPON and GPON,and is evolving to 10G PON and WDM PON.PON technology has been widely adopted due to its flexible deployment and gradual reduction in cost,and it has become the main method of current fixed broadband access.

Product Description

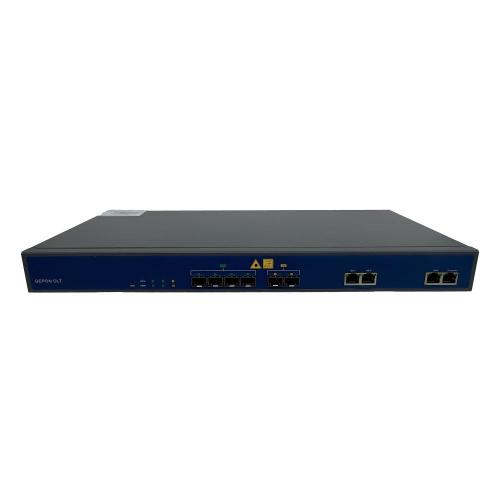

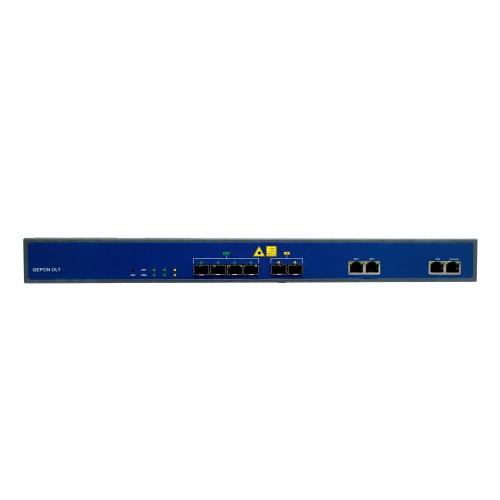

EPON 4-port OLT is a 1U rack-mounted central office device with three-layer function developed by Shenzhen GL-COM Technology Co., Ltd. in the industry.It is compatible with mainstream manufacturers ONU, it is convenient to construct EPON network flexibly and efficiently. It has the characteristics of dexterity, easy deployment, and high performance to meet the user's requirements for device performance and size in different environments. It also supports WEB, Telnet, and SSH to provide users with stable, efficient, and value-added network access services. The product is suitable for networks such as "three networks in one", optical fiber access of the resident network, security monitoring network, corporate LAN and other networks, with extremely high cost performance. EPON 4-port OLT equipment provides 4 EPON service ports, 2 Gigabit Ethernet ports, and 2 SFP Gigabit optical ports. It supports the access of up to 256 EPON ONU users with a split ratio of 1:64.

Product Specification

1. 1000M Uplink Port: 2*10/100/1000M auto negotiation + 2*SFP (Independent) slot

2. EPON Downlink Port: 4*SFP slot; 1000BASE-PX20 +; Maximum Split Ratio 1:64

3. Management Port: 1*10/100BASE-T out-of-band port + 1*CONSOLE port

4. Transmission Distance: 20KM

5. Wavelength: TX 1490nm, RX 1310nm

6. Connector: SC / PC

7. Fiber Type: 9 /125μmSMF

8. TX Power: + 2~+ 7dBm

9. Rx Sensitivity: -27dBm

10. Saturated Optical Power: -6dBm

11. Management Mode: SNMP, Telnet and CLI, EMS and WEB

12. Management Functions:1) Port status monitoring and configuration management;2) Layer 2 switch configuration, such as VLAN, RSTP, IGMP, QOS, etc.;3) EPON management functions: DBA, ONU authorization, ACL, QOS, etc.;4) Online ONU configuration and management;5) User Management;6) Alarm management.

13. Layer 2 Switch:

1) 16K Mac address;

2) Support 4096 VLANs;

3) Support port VLAN and protocol VLAN;

4) Support VLAN Tag / Un-tag, VLAN transparent transmission;

5) Support Vlan translation and QinQ;

6) Support port-based storm control;

7) Support port isolation;

8) Support port rate limit;

9) Support static LACP;

10) QOS is based on port, VID, TOS and MAC address;

11) Access control list;

12) Port stability statistics and monitoring;

13) ONU switch is in the same PON;

14. Multicast: IGMP snooping; 256 IP multicast groups;

15. Dimension (L*W*H): 442mm*200mm*43.6mm

16. Weight: 4.2kg

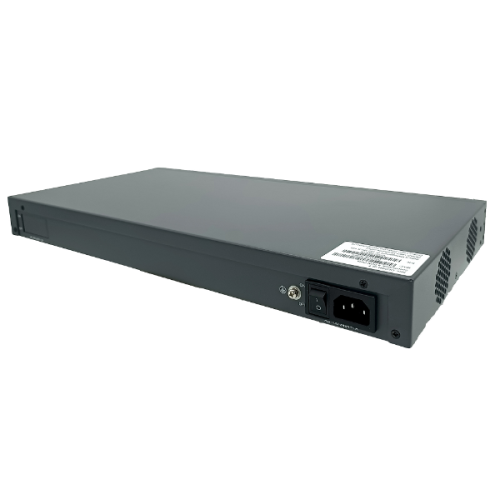

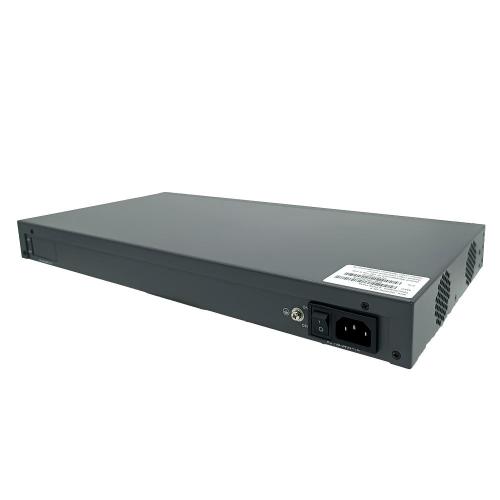

17. Power Supply: 220VAC; AC: 90~264V, 47/63Hz; Support dual hot backup

18. Energy Consumption: 30W

19. Operating Temperature: -10~+ 55℃

20. Storage Temperature: -40~+ 85℃

21. Relative Humidity: 5~90% (non-regulated)
