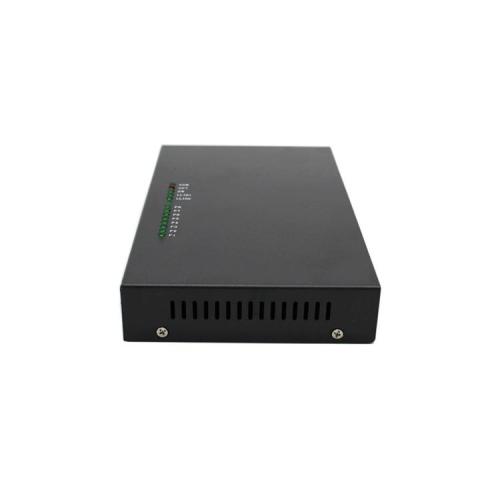

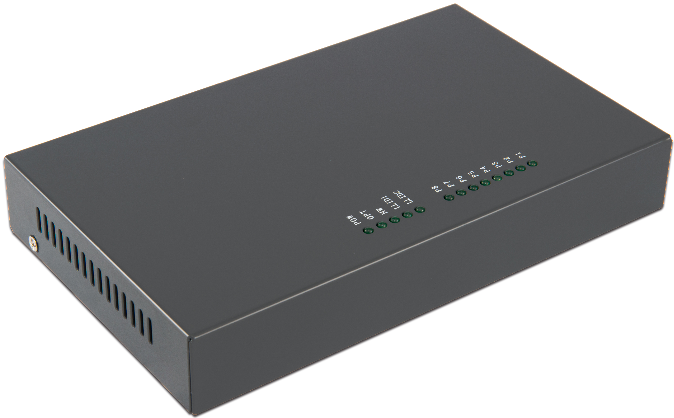

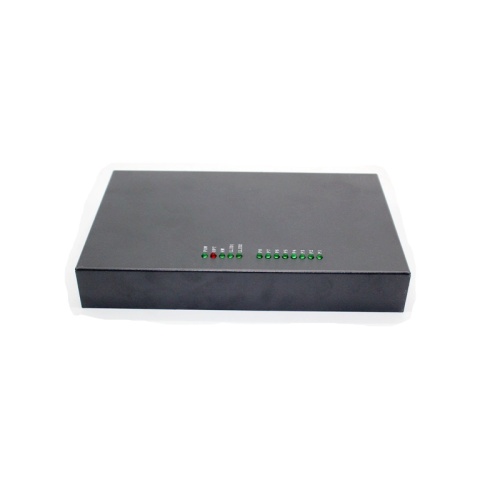

8FE FTTH FIBER OPTIC EPON ONU

GL-E8008-CM-P This type of ONU uses EPON technology. EPON is a long-distance Ethernet access technology based on optical fiber transmission network. It uses a point-to-multipoint structure that can support Remote management, remote software upgrade. The product itself is small in size, does not occupy space, and is well managed. Built-in 8-port Ethernet switching function provides enterprises with EPON broadband outlets and builds internal networks.

Product overview：

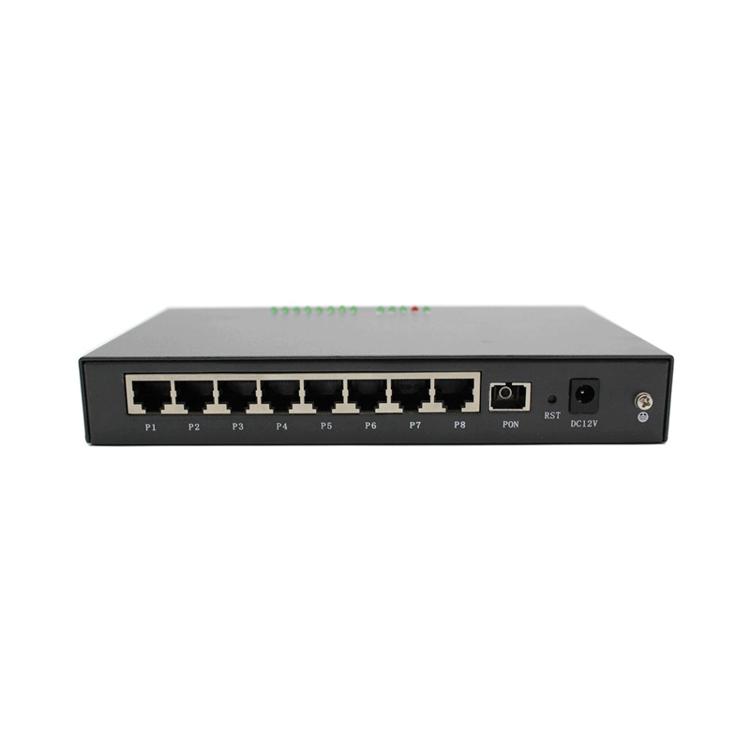

E8008U-CM-P is an EPON upstream, 8 100M electrical ports with POE power supply function designed for security POE ONU. E80048U-CM-P can directly provide users with access to IP data. It is based on mature and stable, cost-effective EPON technology, providing a PON interface and 8 10 / 100M adaptive electrical interfaces. Using single-fiber wavelength division multiplexing technology (downstream 1490nm, upstream 1310nm), only one fiber is required to connect to the OLT, the maximum transmission distance can reach 40 kilometers, support power-off reporting function, support local WEB management function. The eight POE electrical ports have the function of automatically detecting and identifying PD devices that comply with the IEEE 802 af / at standard and powering them, so there is no need to worry about damaging private standard PoE or non-PoE devices. It is an ideal choice for the economical use of PoE to deploy wireless access points (AP) and IP-based network surveillance cameras for small business networks. It can effectively solve the problems of cumbersome maintenance, wireless coverage, terminal equipment power supply, and security monitoring project, and save the project cost to the greatest extent.

Product Features:

 Comply with IEEE802.3ah-2005 and CTC EPON equipment technical requirements

> Support 1Gbit / s symmetric upstream and downstream rates

> Support 8 LLIDs, support bidirectional FEC, support FEC codec of RS (255,239)

> Support downlink 3 times agitation, support AES128 decryption function

> Support synchronous Ethernet function, support SBA and DBA bandwidth allocation

> Support Dying-Gasp detection and reporting

> Support mainstream ONU detection

> Layer 2 data service bidirectional wire-speed forwarding, supporting 1K MAC address table in bridge mode

> Support Tag / Untag Ethernet frame of 802.3 and 802.1Q, support QinQ

> Support flexible tag processing, compatible with CTC2.1, TR156 requirements

> Support energy saving according to CTC2.1 standard

> Support L2, L3 (IPv4 / 6) multicast forwarding, support multiple forwarding methods, including: DMAC, DMAC + VLAN, DIP, IP + SIP, DIP + VLAN, DIP + SIP + VLAN

> Support QOS function

> Using single fiber wavelength division multiplexing technology (downstream 1490nm, upstream 1310nm), only one fiber is required to connect to the OLT, and the transmission distance can reach 40 kilometers

> Easy to install and maintain, support multiple local / remote management configuration and software upgrades, and cooperate with the local OLT to realize remote fault diagnosis and positioning functions, greatly reducing maintenance

> 100M electrical port supports wireless access points (AP) and network surveillance cameras (sur veillance cameras) powered by Category 5 Ethernet cables

> POE power supply port supports IEEE802.3af / at standard PD equipment

> Ultra-long distance data transmission and power supply, the distance is up to 100 meters, saving power lines, and can be flexibly installed for wireless AP and network monitoring equipment engineering

One piece including:
