FTTB FTTX Equipment POE ONU

$46.00

10-49 Piece/Pieces
$45.00

50-99 Piece/Pieces
$42.00

≥100 Piece/Pieces

Transportation:: Ocean, Land, Air

Port:: SHENZHEN, SHEKOU, YANTIAN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	500000
Supply Ability:	5000/Month
Payment Type:	T/T
Incoterm:	FOB,EXW
HS Code:	8517622990
Transportation:	Ocean,Land,Air
Port:	SHENZHEN,SHEKOU,YANTIAN

Product Description

Network operators include telecommunication operators,which are entities that conduct network operations and provide services. network provider refers to the network provider Regardless of whether it is a fixed network operator,a mobile network operator or a cable network operator,they are all facing multiple forces in reshaping the industry structure.As competition continues to intensify,the focus of operators is to provide quality services and applications in the most cost-effective and resource-efficient manner.At the same time,fixed networks,mobile networks,and IP networks are converging, providing end users with maximum flexibility in terms of where and how to access applications.

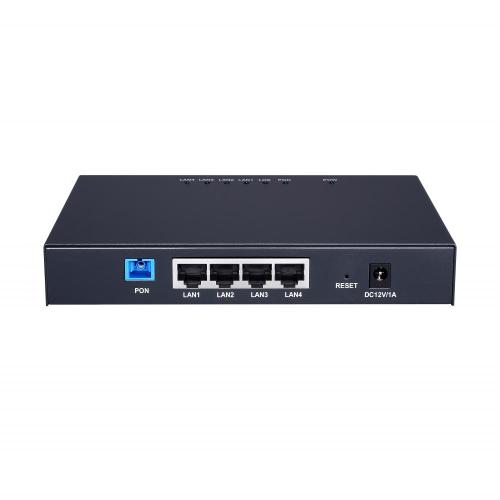

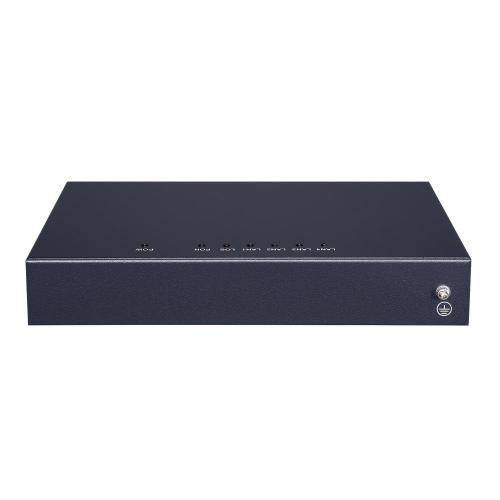

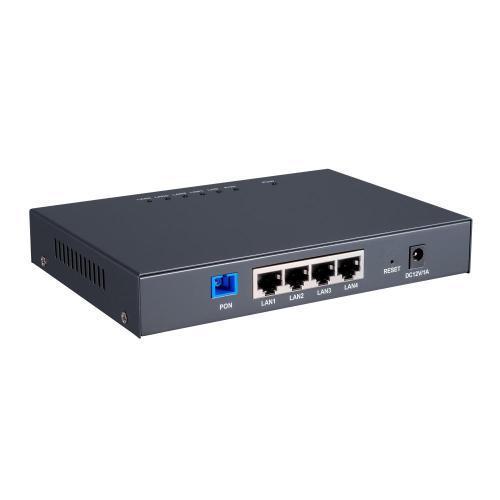

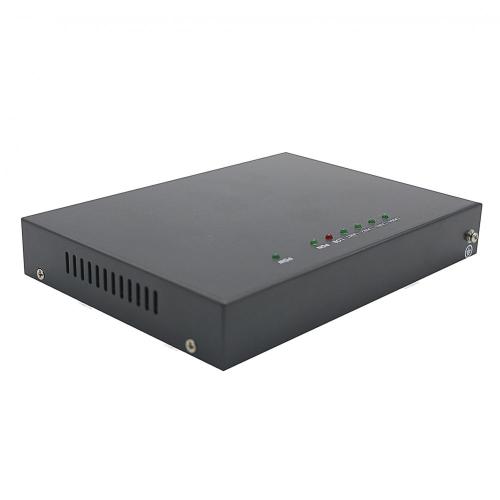

POE ONU

FTTH POE ONU Product overview:

The GPON ONT optical network unit GL-G8031U-DR is a single-family unit (SFU) that integrates strong interoperability, key customer specific needs and low cost to provide triple-play services to users of FTTB applications. GL-G8031U-DR is equipped with 2.5G rate downstream interface and 1.25G rate upstream interface in accordance with ITU-T G.984 standard, which can provide a comprehensive triple play service, including voice, video (IPTV or VoD) and high -speed Internet Access service. The GL-G8031U-DR optical network unit provides a management channel that conforms to the standard OMCI definition, can achieve remote management, and supports a full range of FCAPS monitoring and maintenance functions.Can provide 4-way POE power supply function, support IEEE802 .3af, IEEE802.3at standards.

POE Function

Fttx Poe Onu Product specifications:

Item	GL-G8031U-DR-P
Hardware interface	4 *10/100/1000 Base-T RJ-45 Ethernet interface Ethernet port auto-negotiation or manual configuration MDI/MDIX Automatic detection function Hardware-based priority queues for upstream and downstream directions support service classification（CoS）
Power supply	+12V（Provided by external AC/DC power converter） 2-PIN Power converter input support Dying Gasp Power on/off
Power consumption	<8W(Power consumption without POE calculation)
size	240mm x117mm x30mm (W x D x H)
weight	0.28kg
Environmental parameters	Temperature： 0℃~ 50℃ Humidity： 5% ~ 95% Relative humidity

Business characteristics：

Business	Realize
GPON characteristic	Compliant with ITU-T G.984 GPON standard Support GEM Encapsulation mode Support DBA (Dynamic Bandwidth Assignment) Support 40 T-CONT and 256*GEM Port Support Class B+ Optical power budget Support VLAN-to-GEM Port mapping Support FEC (Forward Error Correction) Realize embeded OAM (Operations, Administration and Maintenance), PLOAM (Physical Layer OAM), OMCI Support Downstream 128 bit AES (Advanced Encryption Standard) encryption Support power failure alarm
VLAN	Support port-based VLAN and IEEE 802.1Q VLAN Support Full rangeVID and PVID Support Port-based＋VLAN Set tag attributes
Broadcast storm suppression	Can set the number of broadcast messages
STP	Support IEEE 802.1d/1s/1w Spanning Tree Protocol
Port aggregation	Support
Bandwidth control	Support 64K to 100M，Send and receive separate control
Mirror	Support Port mirroring function
QoS	Support priority based on port/802.1p/IP-TOS Support 4-level priority control
Upgrade	Support Xmodem、 TFTP Protocol upgrade
Management	Support Telnet Remote configuration Support SNMP management Support WEB management
Safety features	Support centralized authentication of administrator's user password Support port lock, can limit the number of MAC addresses per port Support 802.1x
Maintain	Support debugging information output Support PING Support system log
