Monitoring POE ONU with 24 100M Port

$120.00

10-49 Piece/Pieces
$115.00

50-99 Piece/Pieces
$105.00

≥100 Piece/Pieces

Transportation:: Ocean, Land, Air

Port:: SHENZHEN, SHEKOU, YANTIAN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	500000
Supply Ability:	5000/Month
Payment Type:	T/T
Incoterm:	FOB,EXW
HS Code:	8517622990
Transportation:	Ocean,Land,Air
Port:	SHENZHEN,SHEKOU,YANTIAN

Product Description

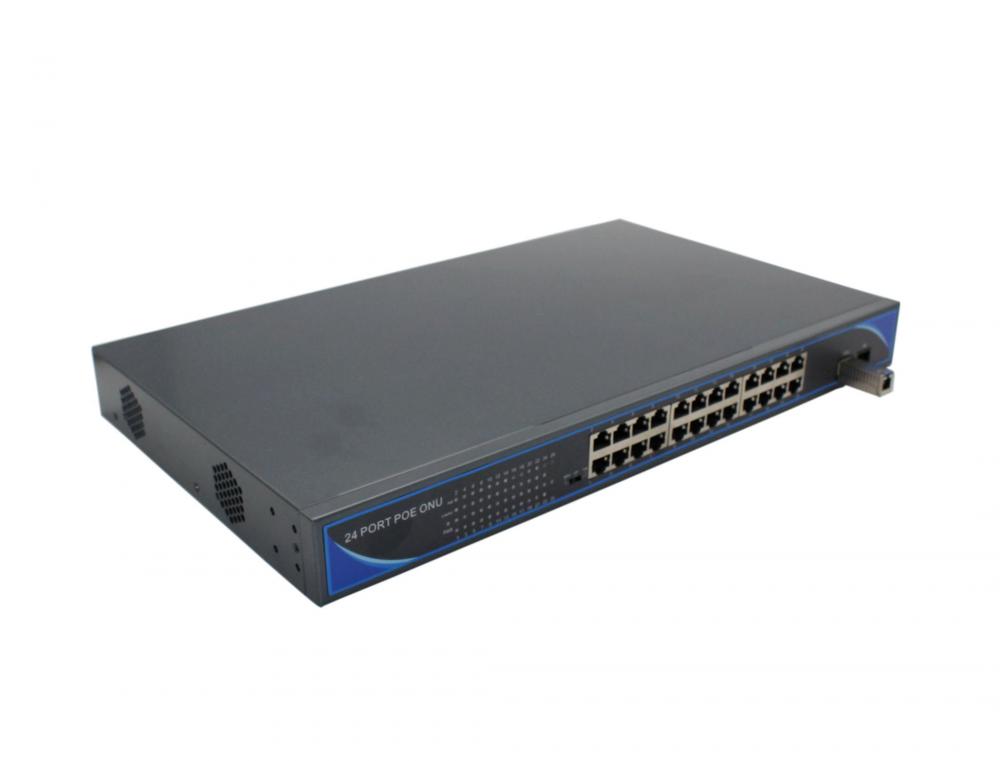

Monitoring POE ONU with 24 100M port

PON technology:

Passive optical fiber network PON means that ODN (Optical Distribution Network) does not contain any electronic components and electronic power supplies. ODN is all composed of passive components such as optical splitters and does not require expensive active electronic equipment. A passive optical fiber network includes an OLT installed in the central control station and a number of matching optical network units ONU installed in the user's premises.

POE ONU

Product overview：

E8024U-NP is an EPON upstream, 24*1000M electrical ports with POE power supply function, a POE ONU specially designed for security. The ONU can directly provide users with IP data access. Based on the mature, stable and cost-effective EPON technology,it provides a PON interface and 24 100/1000M adaptive electrical interfaces. It adopts single fiber wavelength division multiplexing technology (downlink 1490nm, uplink 1310nm), only one optical fiber is connected to the OLT, the maximum transmission distance can reach 20 kilometers, and it supports the power-down reporting function. The 24 POE electrical ports have the function of automatically detecting and identifying PD devices that meet the IEEE 802 af/at standard and powering them, so there is no need to worry about damaging PoE or non-PoE devices of private standards. It is an ideal choice for economical use of PoE to deploy wireless access points (AP) and IP-based network surveillance cameras for small business networks. It can effectively solve the problems of cumbersome maintenance, wireless coverage, terminal equipment power supply, and security monitoring engineering chief, saving engineering costs to the maximum.

Industrial Grade Onu

Specifications：

Model:			E8024U-NP
	Input voltage		AC100-240V 50-60Hz
	Power consumption		The machine itself consumes:<15W Total power consumption:<250w
Port parameters	network port		1~24 downlink network port：10/100Mbps 1 uplink PON port： 1.25Gbps/SC
	Transmission distance		1~24 downstream POE network port：100m CCTV ON downstream support 250m upstream network port:<100m upstream optical port 0-120KM optional
	Transmission medium		1-24 downstream network port:Cat5e/6 standard UTP network cable upstream optical port:fiber/SFP
	POE standard		Comply with IEEE 802.3af/at international standard, single port maximum power supply 30W
	POE power supply mode		End jumper
	POE power supply		Single POE port≤30W,Whole machine＜250W
Exchange parameters		Network standard	IEEE802.3i,IEEE802.3u,IEEE802.3ab,IEEE802.3z,IEEE802.3x,IEEE802.3az,IEEE802.1Q(VLAN), IEEE 802.1w(RSTP)、 IEEE 802.3af/at
		Backplane bandwidth	7.2Gbps
		Forwarding method	Store and forward
		Forwarding rate	10Mbps:14880pps, 100Mbps:148800pps
		Packet data cache	5.4M
		MAC address table	4K
Status Indicator	Power Indicator		1 indicating power supply (green)
	Fiber optic indicator		GF port green light
	Ultra long-distance transmission indicator		1 indicator CCTV (green)
	POE power port LED		PoE status indication 16 RJ45 yellow lights
	Network data port LED		Data status indication 16 RJ45 green lights
Switch	Dial switch		Default state CCTV state,1-16 port isolation and speed down to 10M,Data and power transmission distance 250 meters Vlan mode,Downstream port isolation
Protection level	Lightning protection for communication ports		4KV executive standard:IEC61000-4-5
Environment specification	Operating temperature		-20℃~55℃
	Storage temperature		-40℃~70℃
	Humidity (non-condensing)		5~95%
Physical specifications	Size		330 x 205 x 44.5mm
	Color		Black
	Weight		1.7kg
Reliability	Mean time between failures		＞50000h

Packing:
