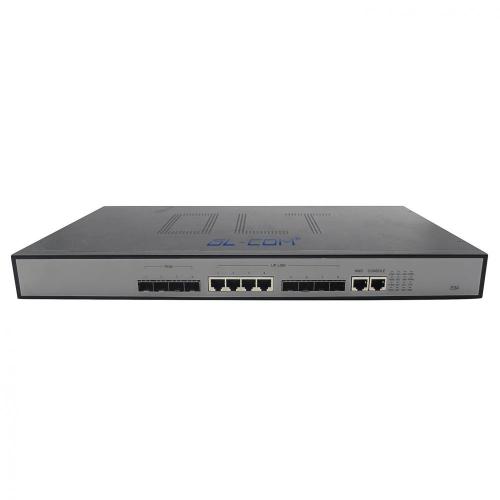

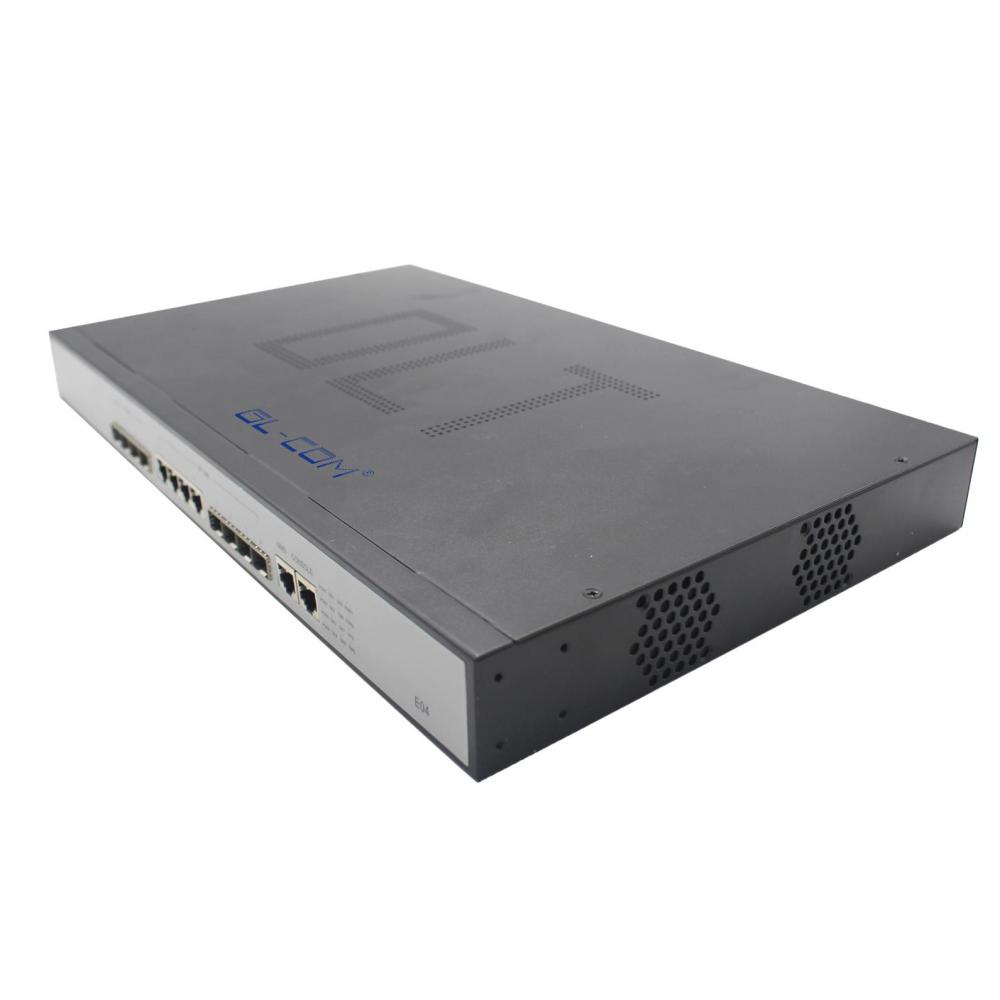

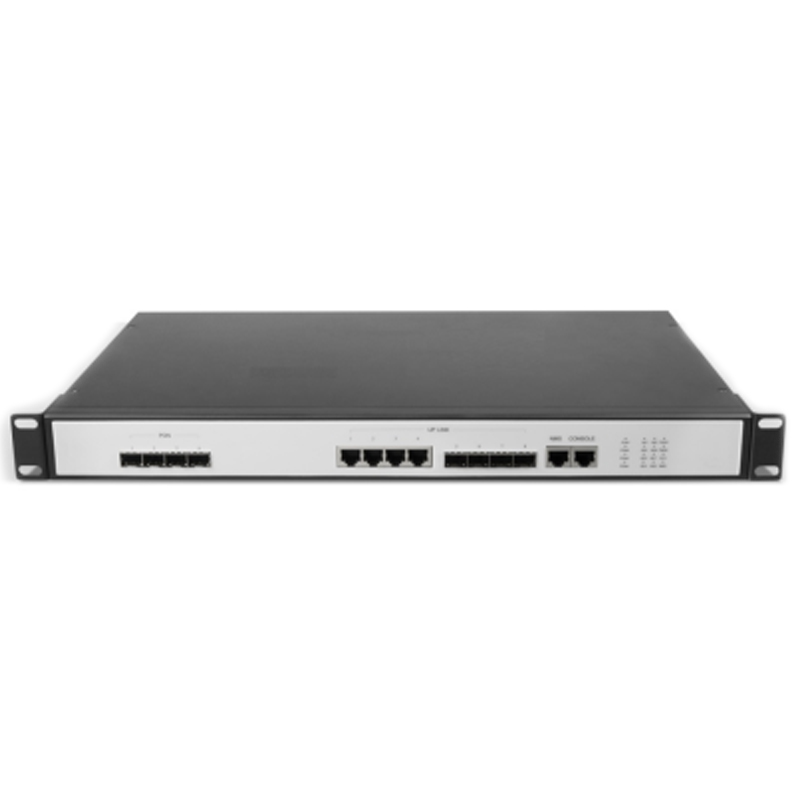

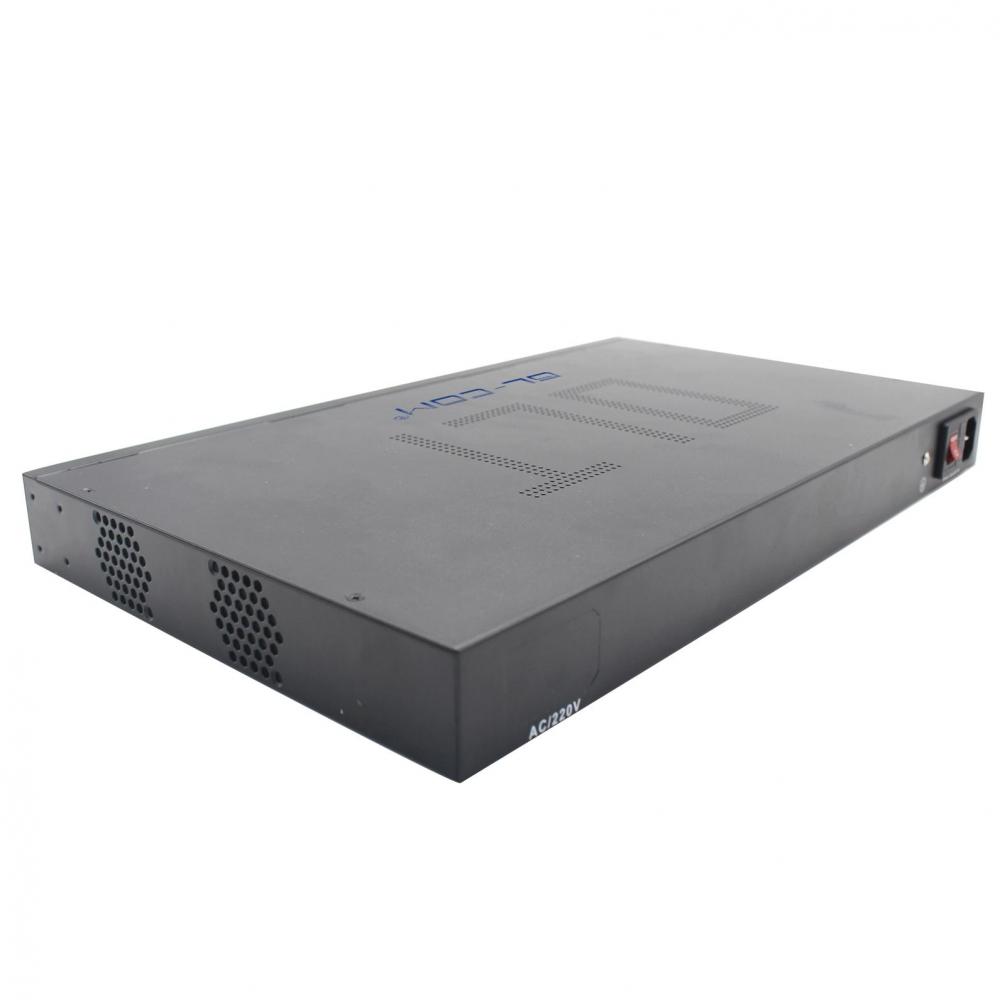

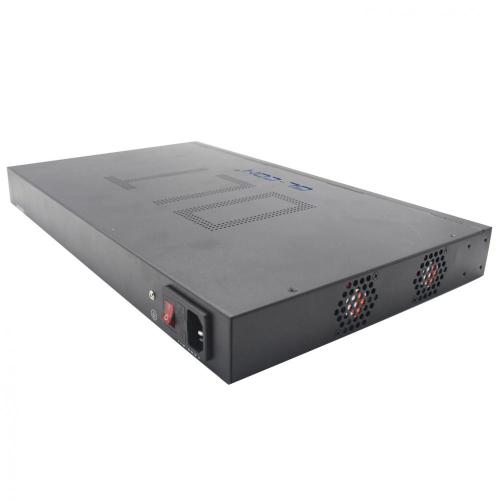

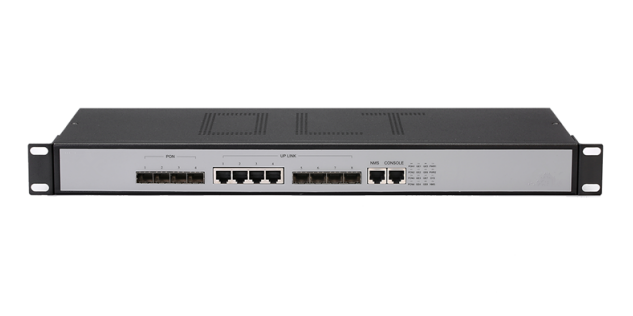

4PON Ports BEST EPON OLT

This optical line terminal equipment with model GL-E8604T-DH refers to mid-to-high-end equipment used to connect optical fiber trunk lines. The function of the OLT is that the ONU, that is, the optical network unit, sends Ethernet data by broadcasting; initiates and controls the ranging process, and records the ranging information; it can also allocate broadband to the ONU, that is, it can control the start of the ONU sending data Time and window size. The OLT in the EPON passive optical network system is a multi-service provision platform that can simultaneously support IP services and traditional TDM services.

Best epon olt overview：

GL-E8604T-DH is a small scale office end OLT device of FTTX telecommunication level independently researched and developed by GL Company; it conforms to IEEE802.3-2005 standard and the technical requirement V2.1 specification for EPON device of China Telecom; it can provide user with access to comprehensive services such as broadband, voice, IPTV and CATV.

Product features:

• High density, flexible networking

>Up to 4 PON ports can be supported in the complete machine

• Highly reliable case, strong adaptive capacity to environment

>1U case, modular design, all modules can be hot plugged, and online update is supported

>Good shielding measures.

• Layer 2 aggregation switching

Port features:

>4 PON ports (1.25G)

>4 uplink electronicports (1G),4 uplinkopticalports.

>2 management ports (special software management)

Physical features:

>Frame: 19 inches 1U height

>Physical dimension: 440×260×43.6 (L×W×H, unit: mm)

>Power supply: AC 100-240V

>Power consumption: 35W

Temperature:
>Working temperature: 0～45℃
>Storage temperature: -30～60℃
>Relative humidity: 10～90% (non-condensing)

One piece including:
