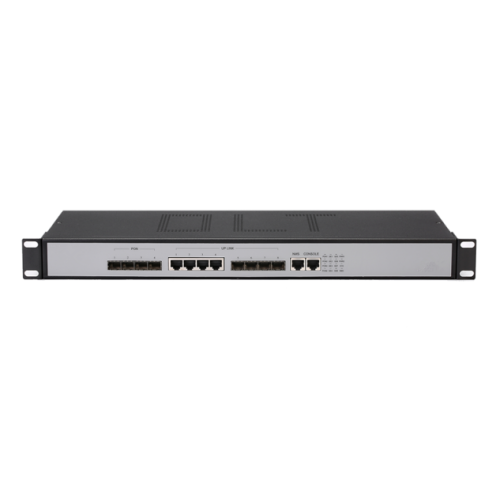

FTTB FTTX EPON 4PON OLT for Optical Network

What is 1U box-type OLT?

Box-type OLTs are generally configured with 2 PON ports or 4 PON ports, which are mainly used for a small number of users, such as town and village-level optical fiber network access, which provides high bandwidth and high integration for broadband access while reducing network construction costs The degree of guarantee can also be applied to FTTX projects to realize fiber to the home and complete the access of IP telephony, broadband data,IP and other services.

Product features:

>Up to 4 PON ports can be supported in the complete machine

>1U case,modular design,all modules can be hot plugged,and online update is supported

• Layer 2 aggregation switching

>Layer 2 wire-speed forwarding; support rich layer 2 protocols、16K MAC address list

>4 uplink SFP ports, 4 uplink GE ports. support up to 8G uplink bandwidth via port aggregation function

>Uplink port supports electronic port modules and optical port modules, which can be configured flexibly as required

• Perfect network management function

>Support GUI based graphical interface and WEB interface management

>Support in-band management, out-of-band management

>Support online upgrade of device software

• Strong QOS function

>Support flexible DBA, uplink and downlink traffic rate-limited

>Port based traffic control, traffic shaping

• Rich OAM function

>Support ONU automatic identification, automatic finding, and automatic registration

>Support the function of automatic loop back test to single link

>Strong VLAN function, including VLAN Stacking, Trunk, Translation, flexible QINQ

>Support flexible controllable multicasting, support IGMP snooping

Port features:

>4 PON ports (1.25G)

>4 uplink electronicports (1G),4 uplinkopticalports.

>2 management ports

Physical features:

>Frame:19 inches 1U height

>Physical dimension:440×260×43.6mm

>Power supply:AC 100-240V

>Power consumption:35W

Temperature:
>Working temperature:0～45℃
>Storage temperature:-30～60℃
>Relative humidity:10～90%
