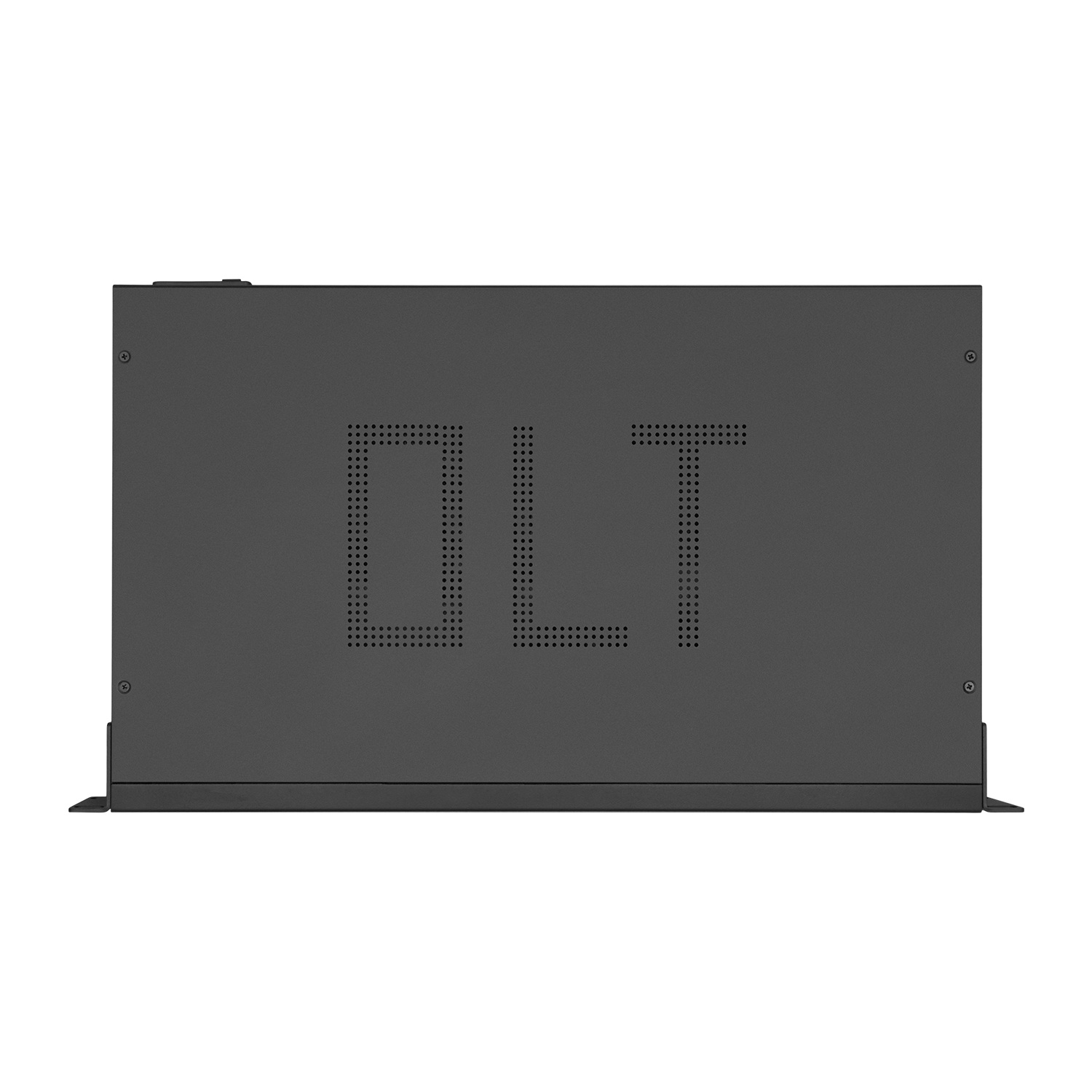

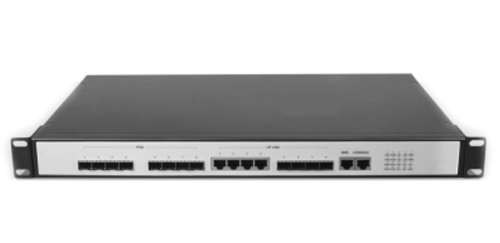

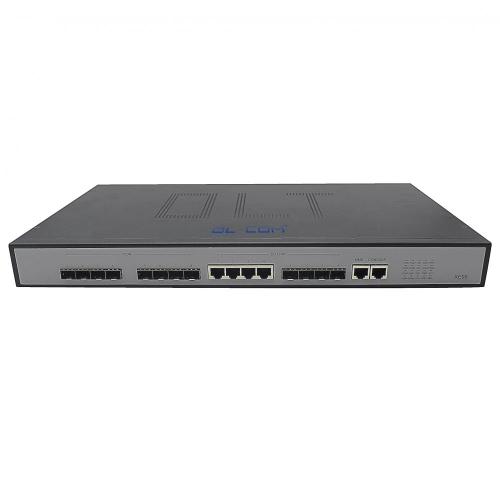

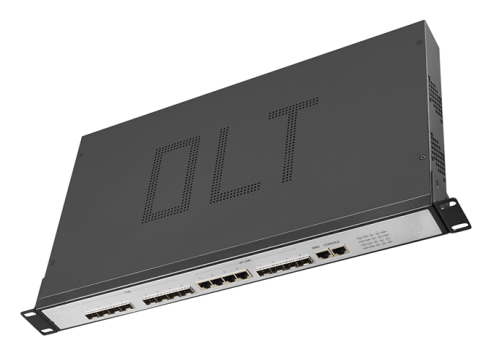

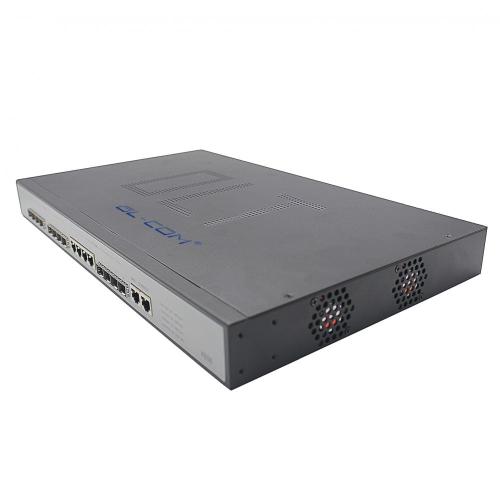

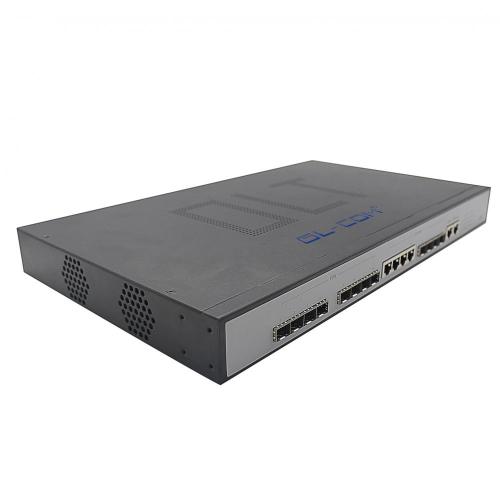

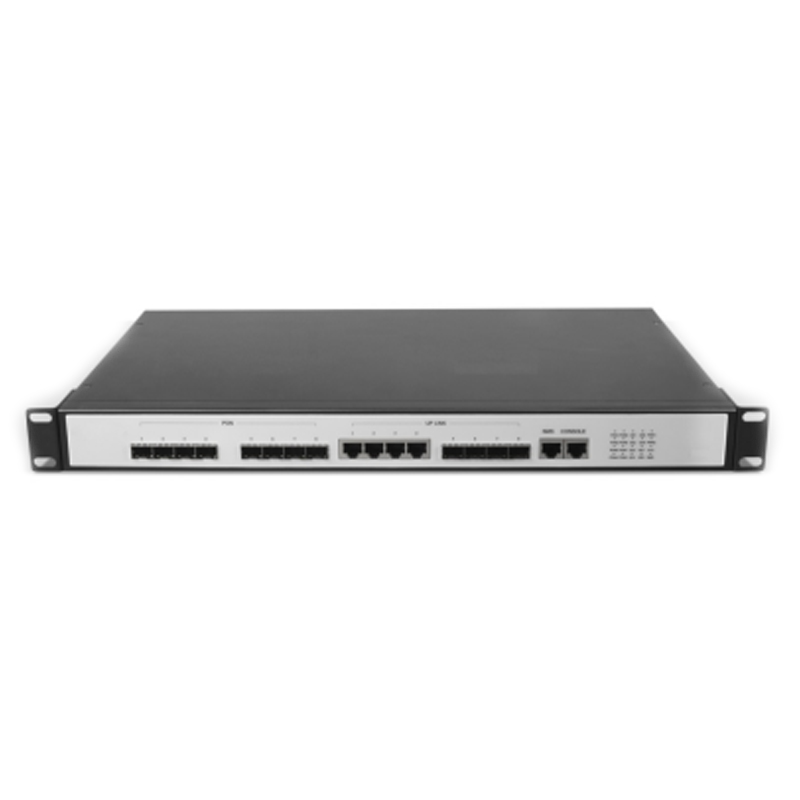

8Port OLT EPON OLT Fiber Optical

8 PON EPON OLT

Q: What is a beam splitter ? Waht is the role of the spectroscope ?

A: The optical splitter is a component of the PON network and is a passive device connecting the OLT and the ONU . Its function is to distribute the downstream data and concentrate the upstream data. The optical splitter has an upstream optical interface and several downstream optical interfaces. The optical signal from the upstream optical interface and several down stream ooptical interfaces. The optical signal from the upstram optical interface is distributed to all downstream optical interfaces for transmission, and the optical signal from the down strams otpcial interface is distributed to the only upstream optical interface for transmission. Only when the optical signal is transferred from the upstream optical interface to eh downstream optcial interface, the optical signal strength / optical power will decrease, the same is true when the optical signal is transferred from the downstream optical interface to the upstreema optical interface. The intensity of the optical signal from each downstream optical interface can be the same or different.

GL-E8608T-DH is a small scale office end GPON OLT device of FTTX telecommunication level independently researched and developed by GL Company; it conforms to IEEE802.3-2005 standard and the technical requirement V2.1 specification for GPON Device of China Telecom; it can provide user with access to comprehensive services such as broadband, voice, IPTV and CATV device .

Product Features:

• High density, flexible networking

>Up to 8 PON ports can be supported in the complete machine

• Highly reliable case, strong adaptive capacity to environment

>1U case, modular design, all modules can be hot plugged, and online update is supported

>Good shielding measures.

• Layer 2 aggregation switching

>Layer 2 wire-speed forwarding; support rich layer 2 protocols、16K MAC address list

>4 uplink SFP ports, 8 uplink GE ports. support up to 8G uplink bandwidth via port aggregation function

>Uplink port supports electronic port modules and optical port modules, which can be configured flexibly as required.

• Perfect network management function

>Support GUI based graphical interface and WEB interface management

>Support in-band management, out-of-band management

>Support online upgrade of device software.

•Port Features:

>8PON ports (1.25G)

>8 uplink electronicports (1G),8 uplinkopticalports.

>2 management ports (special software management)

•Physical Features:

>Frame: 19 inches 1U height

>Physical dimension: 440×260×43.6 (L×W×H, unit: mm)

>Power supply: AC 100-240V

>Power consumption: 35W
