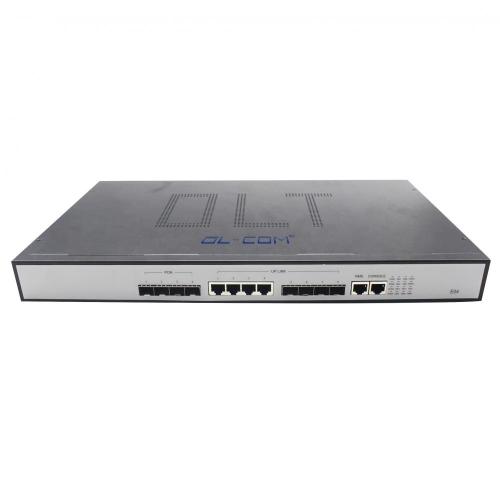

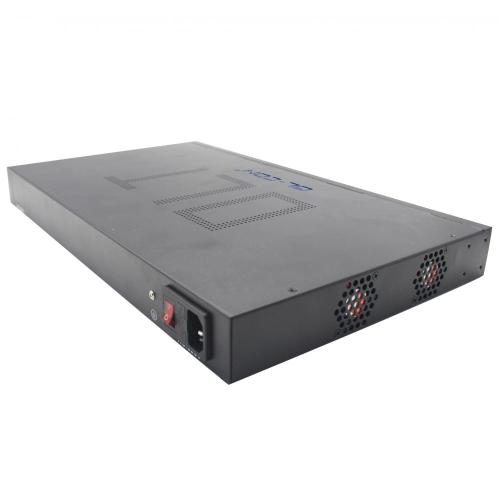

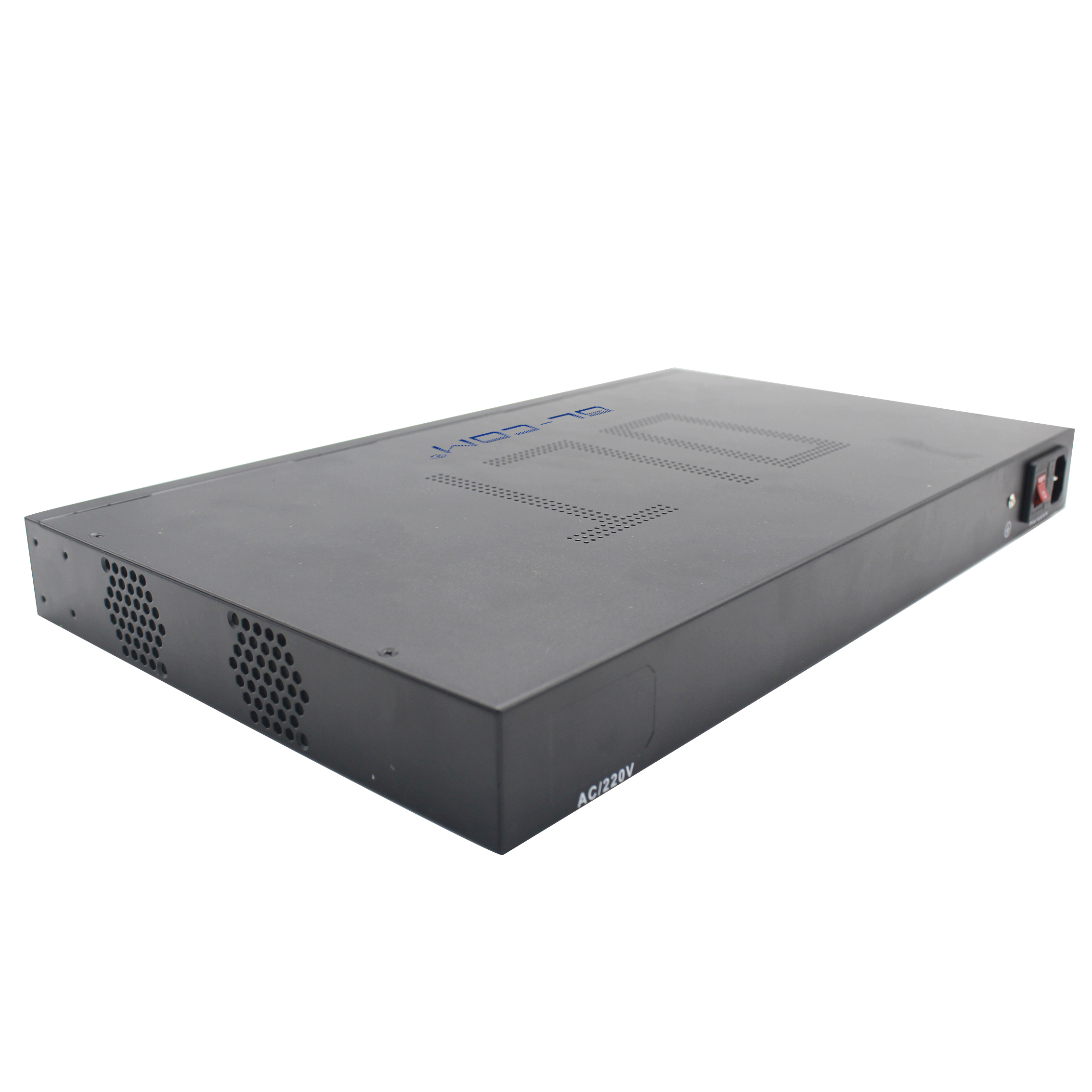

FTTH OLT EPON 4pon for Communication Equipment

EPON OLT 4 PORTS aEPON OLT 4 ports

GL-E8604T-DH is a small scale office end OLT device of FTTX telecommunication level independently researched and developed by GL-COM , it  conforms to IEEE802.3-2005 standard and the technical requirement6 V2.1 specification for EPON device of China Telecom;l  It can provide user with aeecss to comprehensive services such as broadband , voice , IPTV and

CATV.

Product Features:

Layer 2 aggregation switching

Layer 2 wire-spee forwarding ; support rich layer 2 protocols, 16K MAC address list

4 uplink SFP ports, 4 uplink GE ports, support up to 8G uplink bandwidth via port aggregation function

Uplink port supports electronic port  modules and optical port modules, which can be configured flexibly as required

Perfect network management function

Support GUI based graphical interface and WEB interface management

Support-in-band management , out-of-band management

Support online upgrade of device softwar

Strong QOS function

Support flexible DBA, uplink and downlink traffic rate-limited

Support IP ToS, IEEE802.1p

Port based traffic control, traffic shaping

Rich OAM function

Support ONU automatic identification, automatic finding ,and automatic registration

Support the function of automatic loop back test to single link

Strong Vlan function , including Vlan stracking , Trunk, Translation, Flexible QINQ

Supoort flexible controllable multicasting , support IGMP snooping

Port Features:

4 PON ports ( 1.25G)

4 uplink electronicports ( 1G ) , 4 uplinkopticalports

2 mangement ports ( special software management )

Physical Features:

Frame: 19 inches 1 U height

Physical dimension : 440*260*43.6 ( L*W*H , unit mm )

Temperature: Working temperature: 0-45℃

Storage Temperature：-30-60℃

Relative Humidity: 10~90% ( non-condesing )

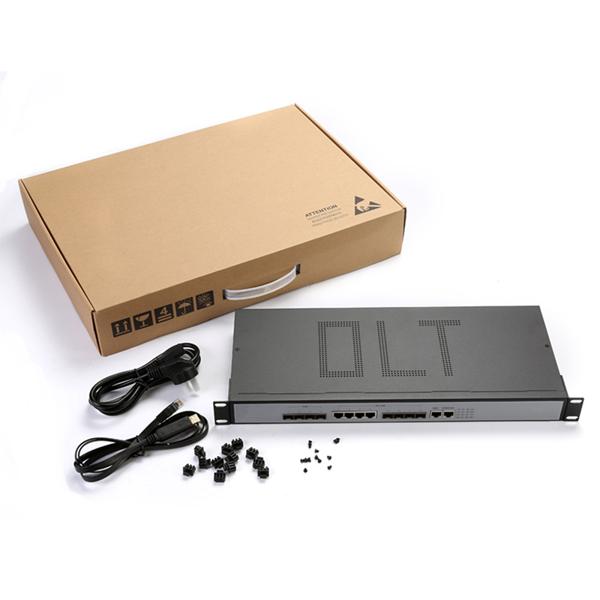

Packaging Details：
