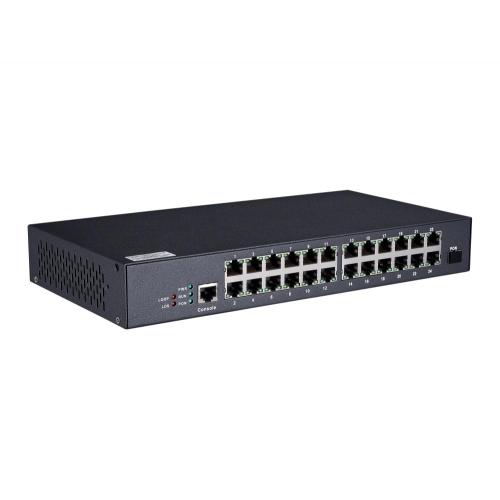

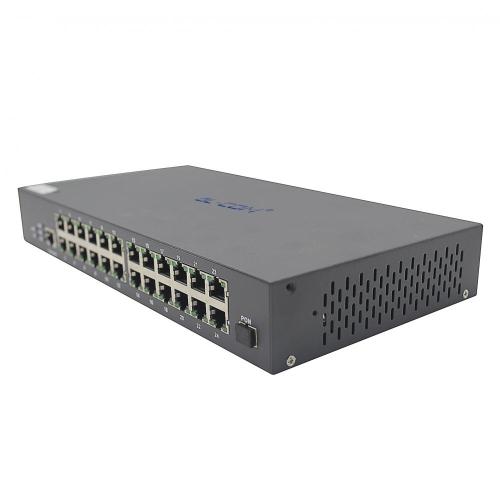

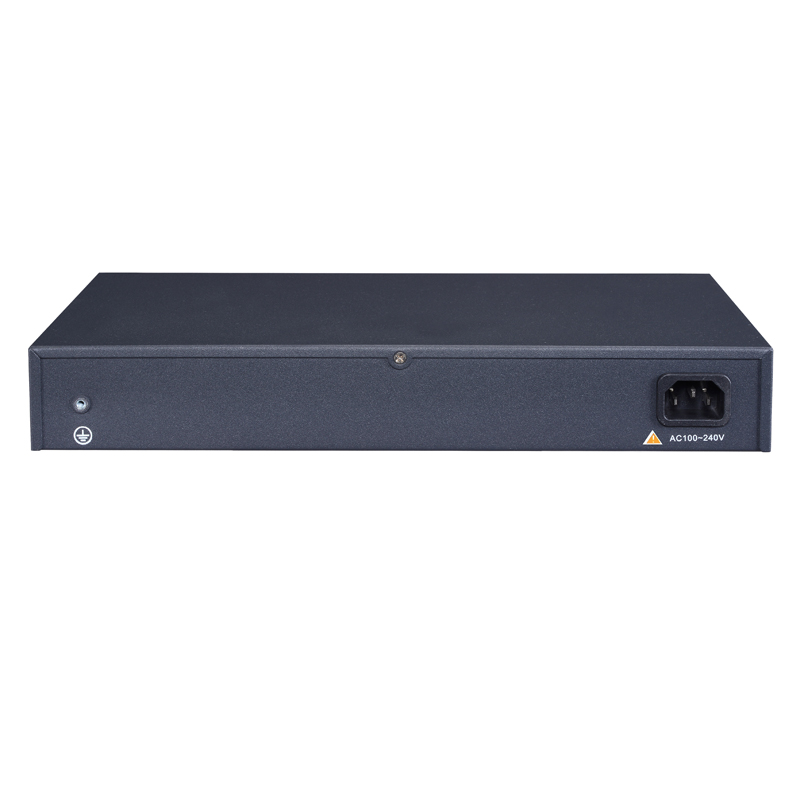

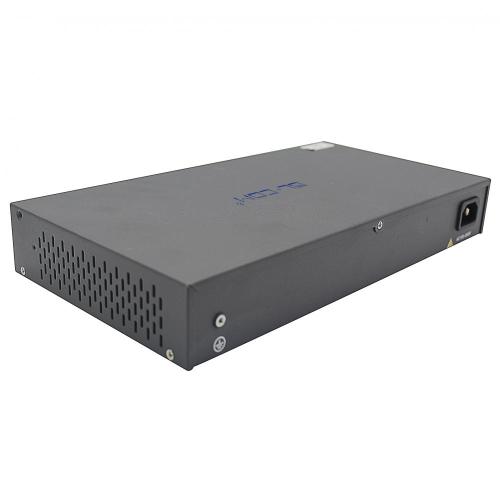

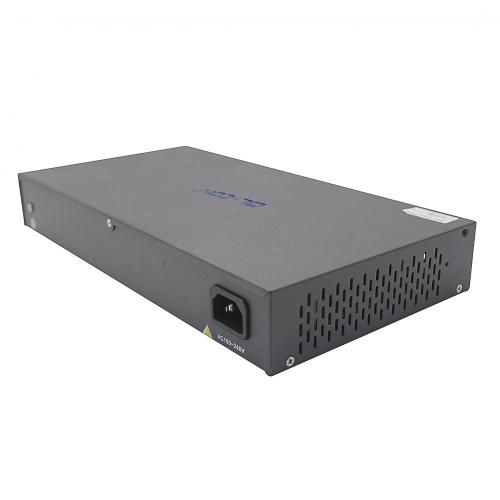

Optical Fiber EPON ONU With 24FE RJ45 Ports

It is based on mature and stable Gigabit EPON technology and L3 Ethernet switching technology, EPON broadband access equipment independently developed by V-Solution.It, based on mature and stable Gigabit EPON technology and L3 Ethernet switching technology, with high reliability , Good Quality of Service (QoS) guarantees, easy management and flexible network functions. Access network technical requirements that meet the technical requirements of ITU-T, IEEE & YD/T.

Product Overview：

EPON ONU with 24FE iron shell is a corridor-type client ONU device in the Ethernet Passive Optical Network (EPON) series of GL-COM. It follows the IEEE802.3ah international standard, YD/T 1475-2006 Ministry of Industry and Information Technology , CTC 2.1 telecommunications standards and radio and television related standards, with good central office compatibility, can interconnect with mainstream central office manufacturers OLT equipment. With high port density, good manageability, and built-in high-speed switching functions, it is particularly suitable for applications such as fiber to the building (FTTB), premises network, fiber to the enterprise, and Internet of Things.

Product Features:

> Support 4094 VLANs;

> Support 16K MAC address table, support MAC address restriction;

> Support IGMP Snooping and CTC controllable multicast;

> Support STP;

> Support OAM, CLI and WEB configuration management;

> Support Telnet, support OLT remote and WEB software upgrade;

> Industrial standard.

Hardware Features :

1. Business port: Provide 1 pon optical port（SC/UPC),Provide 24 10/100Base-T adaptive LAN ports,Provide a local configuration Console port(RJ45 connector);Transmission rate:Upstream and downstream 1Gbps transmission rate;

2. Data exchange: Built-in 100M Ethernet switching function;

3. LED indicator: POWER, PON, LOS, RUN, LOOP indicating power、PON registration、Light signal LOS、System operation and loop status;The LEDs of LAN1～24 ports indicate the LINK and Active status of each LAN port;

4. Weight:1.5KG

Packaging Details：
