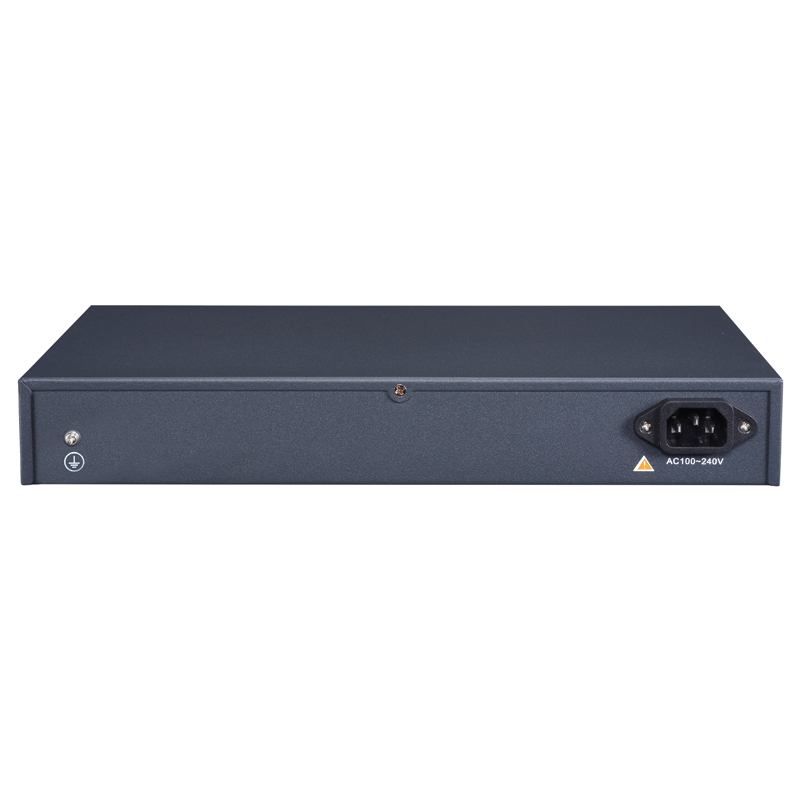

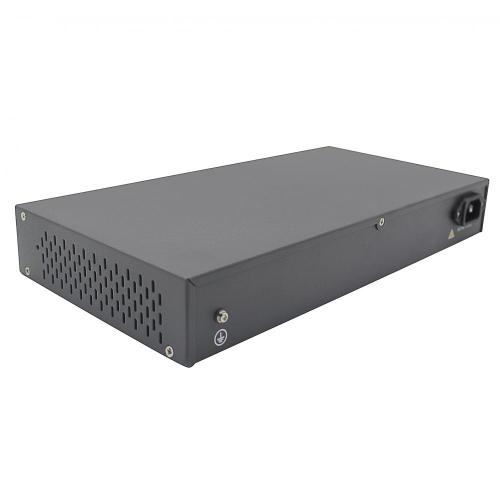

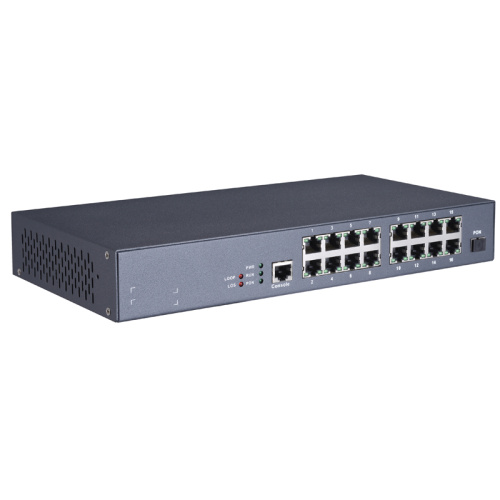

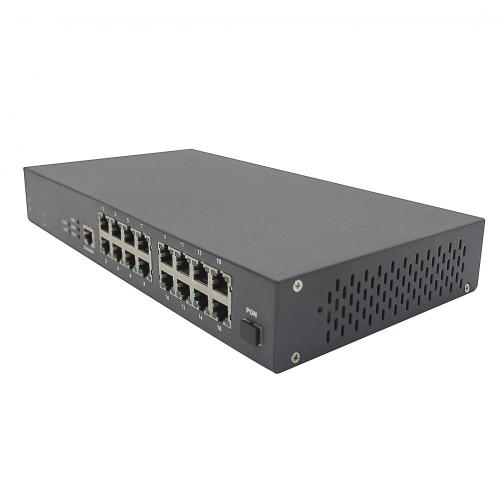

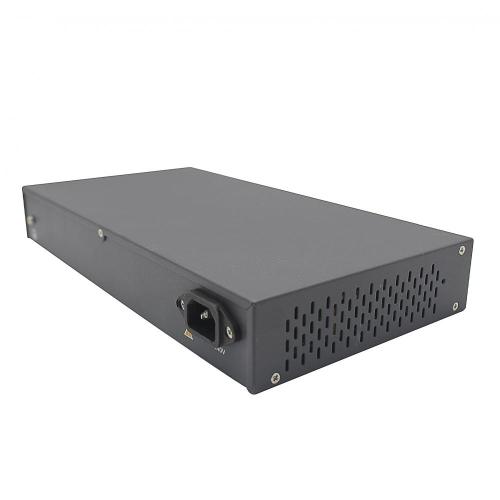

Web Management 16Port FE lron Shell Epon Onu

Designed to convert 1000BASE-SX fiber to 1000Base-T copper media or vice versa.Works at 1000Mbps in Full-Duplex mode for both TX port and FX port。Supports auto MDI/MDIX for TX port and provides switch configuration of Force/Auto transfer mode for FX port。Extends fiber distance up to 550m (1,800feet) using 50/125um Multi-Mode Fiber, 220m(720 feet) using 62.5/125um Multi-Mode Fiber. Easy-to-view LED indicators provide status to monitor network activity easily and external power supply.

Features:

>Fe Port support 4094 VLAN;>Support 16K MAC address table, support MAC address restriction;>Support port speed limit, support storm suppression;

>Support IGMP Snooping, support CTC controllable multicast;Support port isolation;>Support Dysing Gasp;>Support 4 priority queue; scheduling;support SP, WRR and SP+WRR scheduling algorithm;>Support OAM, CLI and WEB configuration management;>Support Telnet, support OLT remote and WEB software upgrade;

>Business port: Provide 1 optical Pon  Port（SC/UPC),Provide 16 10/100Base-T adaptive LAN ports,Provide a local configuration Console port(RJ45 connector);

>Transmission rate:Upstream and downstream 1Gbps transmission rate;

>Data exchange:Built-in 100M Ethernet switching function;

>LED indicator:POWER, PON, LOS, RUN, LOOP indicating power、PON registration、Light signal LOS、System operation and loop status;The LEDs of LAN1～16 ports indicate the LINK and Active status of each LAN port;

>Weight:1.5KG.
