HIGH QUALITY 4GE EPON ONU

GL-E8031U-HZ This ONU supports 24 1000M Ethernet ports, and uses Huawei chips, home gateway unit type ONU, with routing function, VLNA port division can independently manage the web interface, convenient for users to manage equipment, and reduce In addition to possible risks, maintenance costs are also reduced. This network device is cheap and easy to use, making it the best choice for most users.

Product overview：

Huawei Chipset E8031U-HZ is an Industrial grade Iron casing ONU device terminal in the EPON system. In cooperation with the OLT, the ONU can provide various broadband services to connected users, such as Internet, VoIP, IPTV, Video Conference and other services. It is based on the mature, stable and cost-effective EPON technology, providing one PON interface, four 1000M electrical interfaces, one power button, and one power interface. It adopts single fiber wavelength division multiplexing technology (downlink 1490nm, uplink 1310nm), only one optical fiber is connected to the OLT, the maximum transmission distance can reach 20 kilometers, the power failure report function is supported, and the local WEB management function is supported.

Product interface:

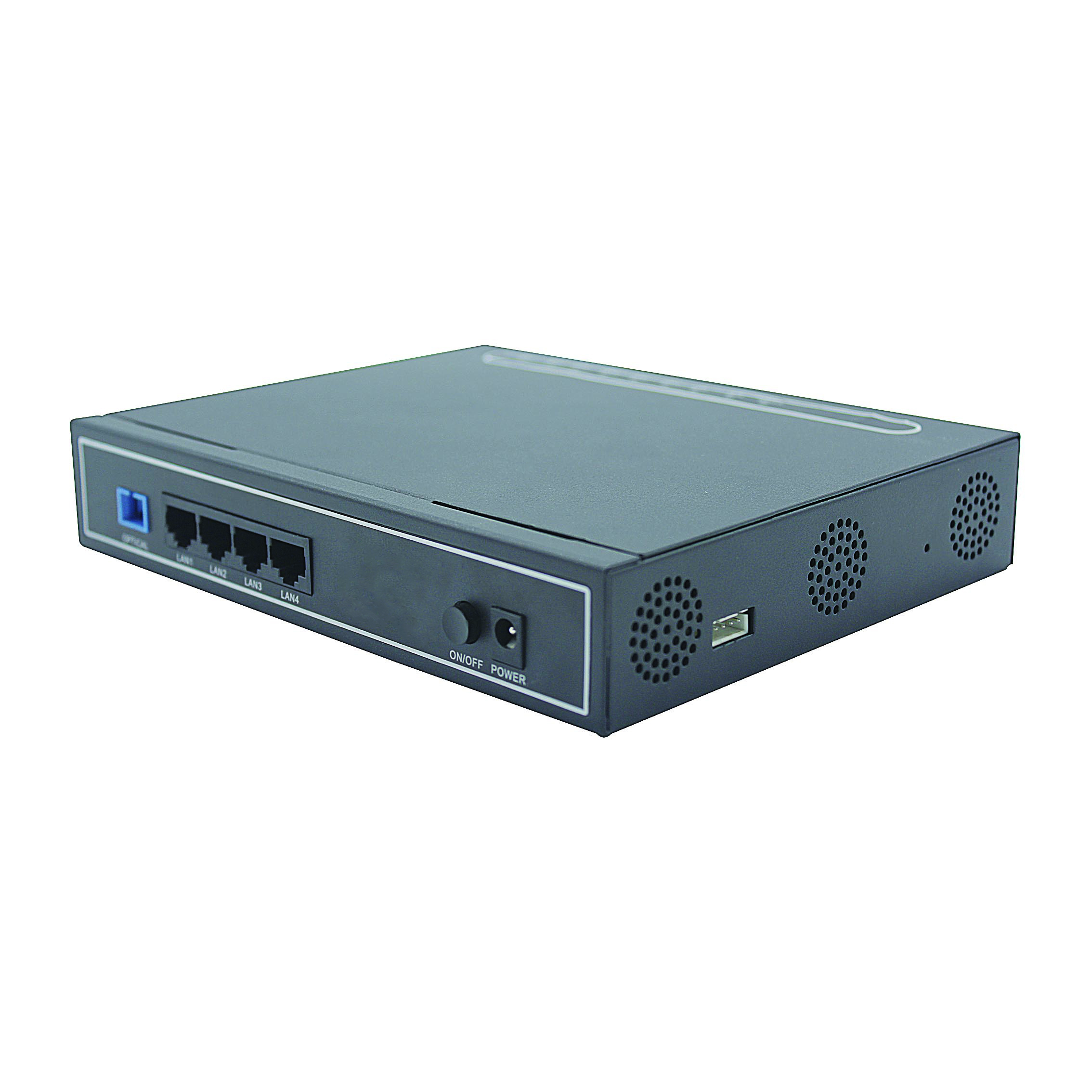

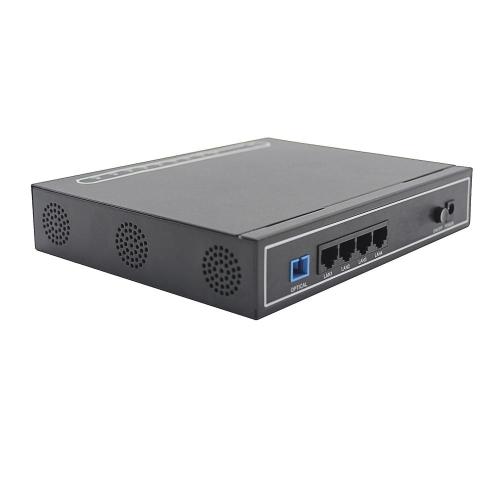

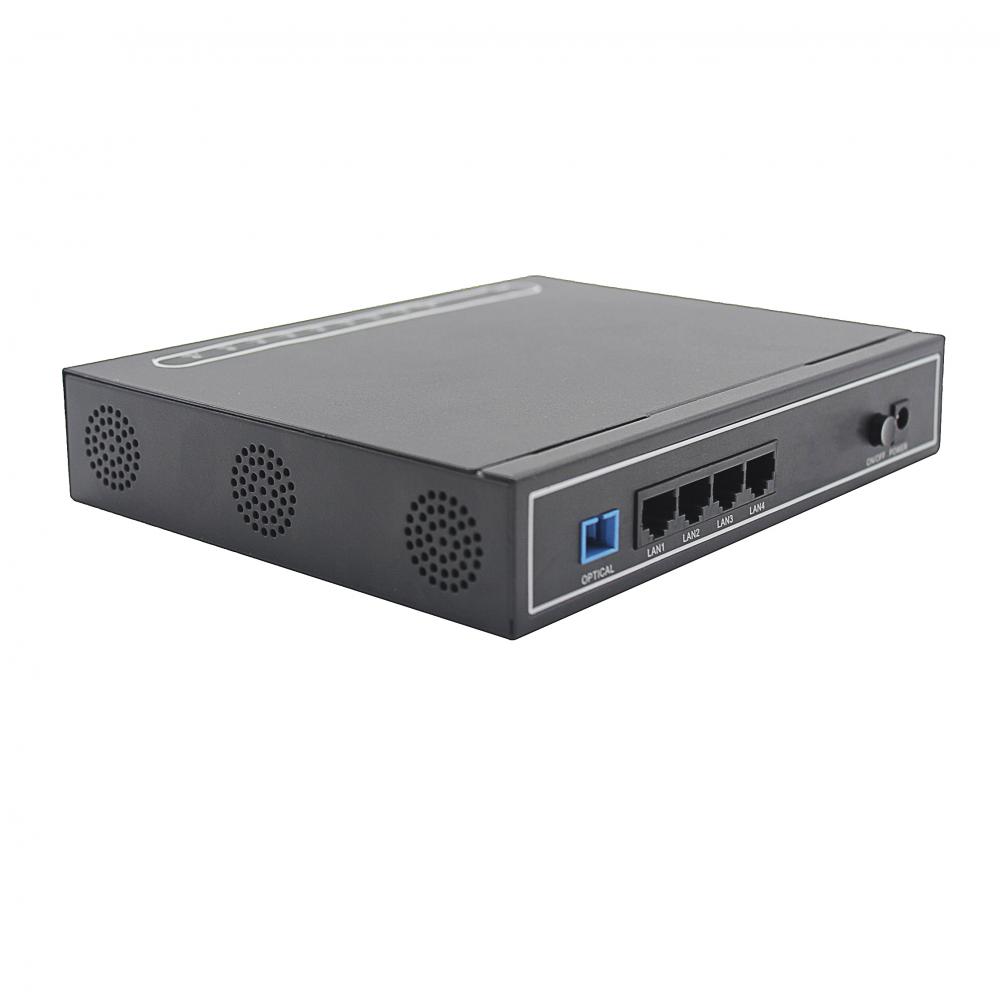

Hardware interface, viewed from left to right facing the direction of the interface, the interface sequence is: PON interface, network port 1-4, power button, power interfaceIndicator light: LED definition from left to right: power supply, optical fiber G, optical signal, network port 1-4.

Features：

1.HGU/SFU ONU product form, support bridging and NAT mode ；2.BOB product craft；3.12V/1.5A External power supply.4.Provide a reset button.

Business performance:

>Two-way wire-speed forwarding of Layer 2 data services;

>Layer 2/3/4 hardware NAT/NAPT;

>Support 802.3, 802.1Q Tag/Untag Ethernet frame ；

>Support ACL rules MAC, IP, TCP/UDP, ICMP, IGMP, IPV6 format;
