GPON WIFI ONT 4GE ONU 2.4G

$28.00

10-99 Piece/Pieces
$27.00

100-499 Piece/Pieces
$25.00

≥500 Piece/Pieces

Transportation:: Ocean, Land, Air, Express, others

Port:: SHENZHEN, SHEKOU, YANTIAN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	50000pcs/per month
Supply Ability:	50000pcs/ per month
Payment Type:	T/T,Paypal
Incoterm:	FOB,EXW
Certificate:	CE,ROHS,FCC
HS Code:	8517622990
Transportation:	Ocean,Land,Air,Express,others
Port:	SHENZHEN,SHEKOU,YANTIAN

Product Description

Q:What does 2.4 GHz WIFI mean ?

A: 2.4G is a wireless technology. Because its frequency band is between 2.400GHz and 2.4835GHz, it is called 2.4G wireless technology for short. 2.4G WiFi refers to a technical standard based on IEEE 802.11b, and IEEE 802.11b is a product based on the IEEE802.11 series of standards in the 2.4G Hz frequency band.

gpon 4ge onu

Product Overview:

G8007u-R is the device terminal for ONT in the EPON ONU system, cooperating with EPON OLT. ONU can provide various broadband services to the connected users, such as Internet, VoIP, IPTV, Video Conference and other businesses.It provides a PON interface, four 10/100/1000m adaptive Ethernet ports, and a USB interface based on mature, stable, cost-effective EPON technology.Single fiber WDM technology (down 1490nm, up 1310nm) is adopted to connect only one fiber to OLT, and the maximum transmission distance is up to 20km. It supports the power down and report function and supports the local WEB management function.

Product Interface:

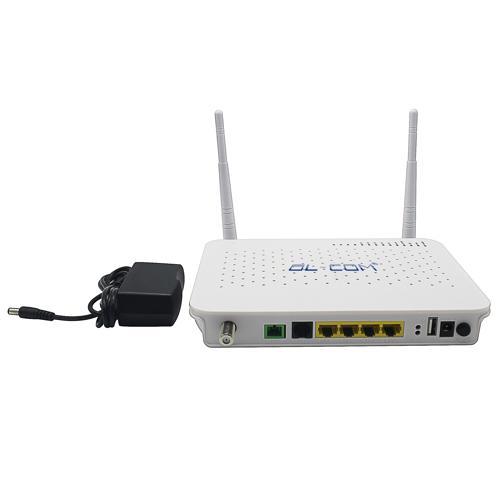

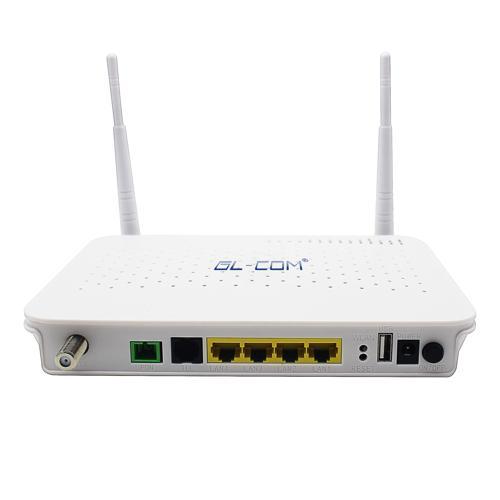

Interface: hardware interface, facing the interface direction from left to right, in order of interface: CATV interface, pon interface, net port 4-net port 1, wireless switch, reset key, USB interface, dc 12-volt interface, power switch.

Indicator light: LED definition from left to right: power supply, fiber G, optical signal, broadband, phone, port 1-4, USB.

gpon ont router

WIFI Features:
>technical norms：IEEE802.11b，IEEE802.11g，IEEE802.11n；>debug mode：802.11b：DSSS/BPSK/QPSK/CCK>802.11g：OFDM/DSSS/BPSK/QPSK/CCK;>802.11n: OFDM/DSSS/BPSK/QPSK/CCK;>speed：802.11b：compatibility 11,5.5,2,1 Mbps；>802.11g：compatibility 54,48,36,24,18,12,9,6 Mbps>802.11n：compatibility 130,117,104,78,65,58,52,39,26,19.5,13,6.5Mbps；>channel：1~11 (USA, Canada) ; 1~13 (Europe) ; 1~14 (Japan)；>frequency domain ：2.4GHz-2.4835GHz；>transmission power：11b：17dBm +/- 1.5dBm；>11g：14dBm +/- 1.5dBm；>11n：11dBm +/- 1.5dBm；>receive sensitivity ：11b：83dBm；>11g：70dBm；>11n：64dBm；>coverage area ：reach100m >security safe：64/128-bits WEP; WPA/WPA2；>The antenna number：2*3dBi Internal Antenna.
